FLOATING SOLAR MOUNT (TGW01)

Short Description:


Product Detail

Product Tags

Introduction

-TGW01 is very suitable under circumstances with potential large wind and snow,  or when the water area is sufficient,  or the climate temperature is high.
The solar module mounting structure is made of alumnium alloy, which protect the solar modules from fire.

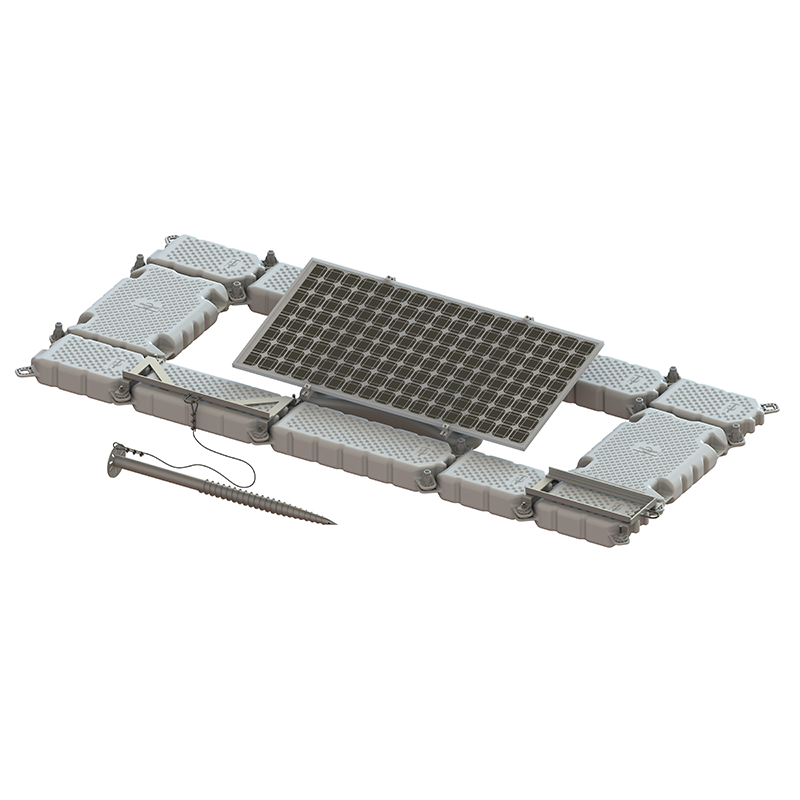

Overview of Floating Mounting System



Solar Module Mounting Structure



Anchoring System



Optional Components

Combiner Box Bracket

Straight Cable Trunking

Visiting Aisle

Turning Cable Trunking

Technical Details

Design Description: 1. Reduce water evaporation, and utilize the cooling effect of water to increase the power generation.

2. The bracket for solar modules is made of aluminum alloy for fireproof.

3. Easy to install without heavy equipment; safe and convenient to maintain.

Installation Water Surface
Surface Wave Height ≤0.5m
Surface Flow Rate ≤0.51m/s
Wind Load ≤36m/s
Snow Load ≤0.45kn/m2
Tilt Angle 0~25°
Standards BS6349-6, T/CPIA 0017-2019, T/CPIA0016-2019, NBT 10187-2019, GBT 13508-1992, JIS C8955:2017
Material HDPE, Anodized Aluminum AL6005-T5, Stainless Steel SUS304
Warranty 10 Years Warranty

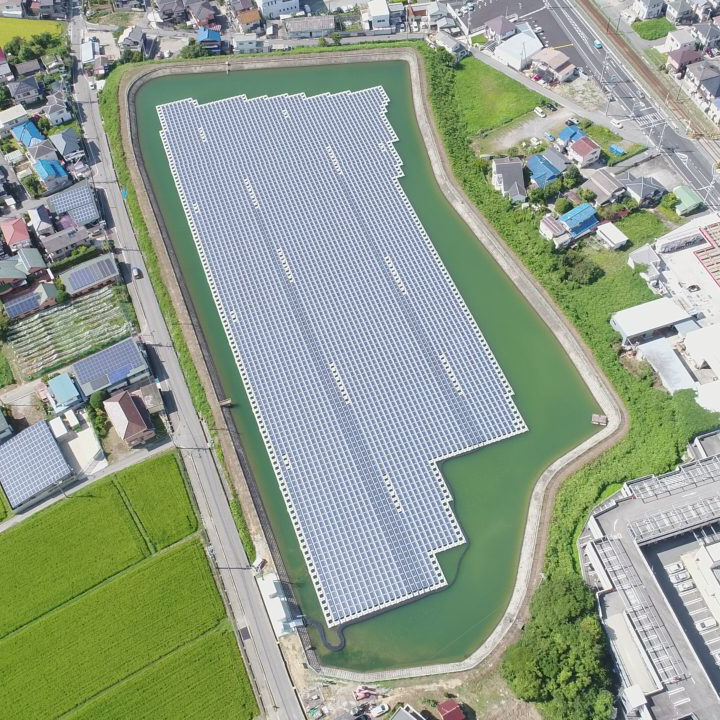

Project Reference
