FLOATING SOLAR MOUNT (TGW02)

Short Description:


Product Detail

Product Tags

Introduction

Solar First Floating PV Mounting Systems are designed for the emerging floating PV market for the installation in various water bodies such as ponds, lakes, rivers and reservoirs, with excellent adaptability with the environment.

Anodized Aluminium is used for the mounting components that makes the system durable and lightweight, thereby enabling its easy transportation and installation. Corrosion-resistant stainless steel is used for the system’s fasteners that provides good strength and heat resistance to withstand harsh environmental conditions. Solar First’s floating systems have been tested in wind tunnel in performance.

The floating system solution is designed with more than 25 years’ lifespan and provide with 10 years product warranty.

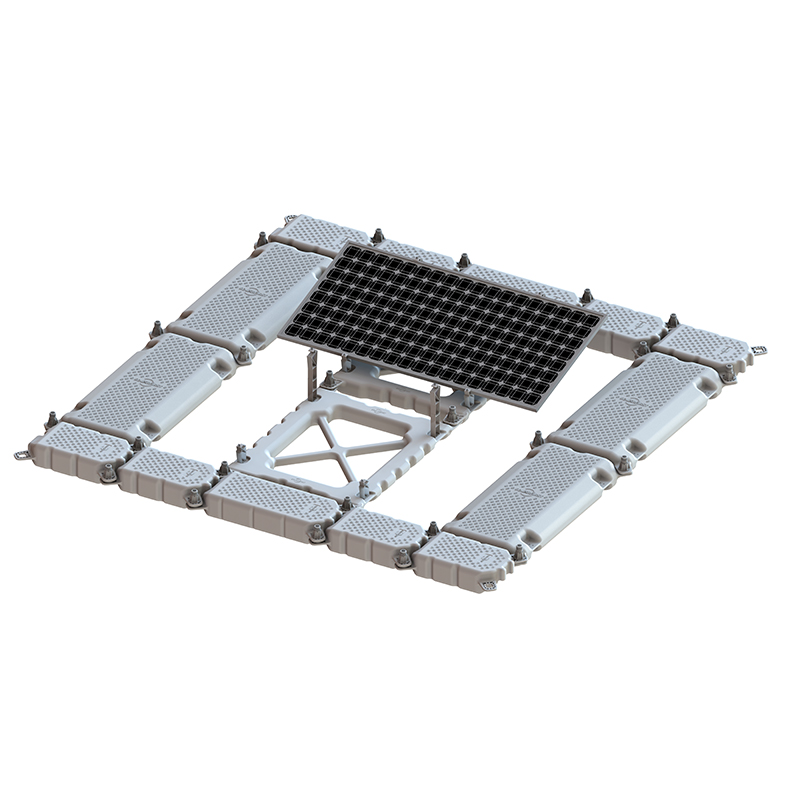

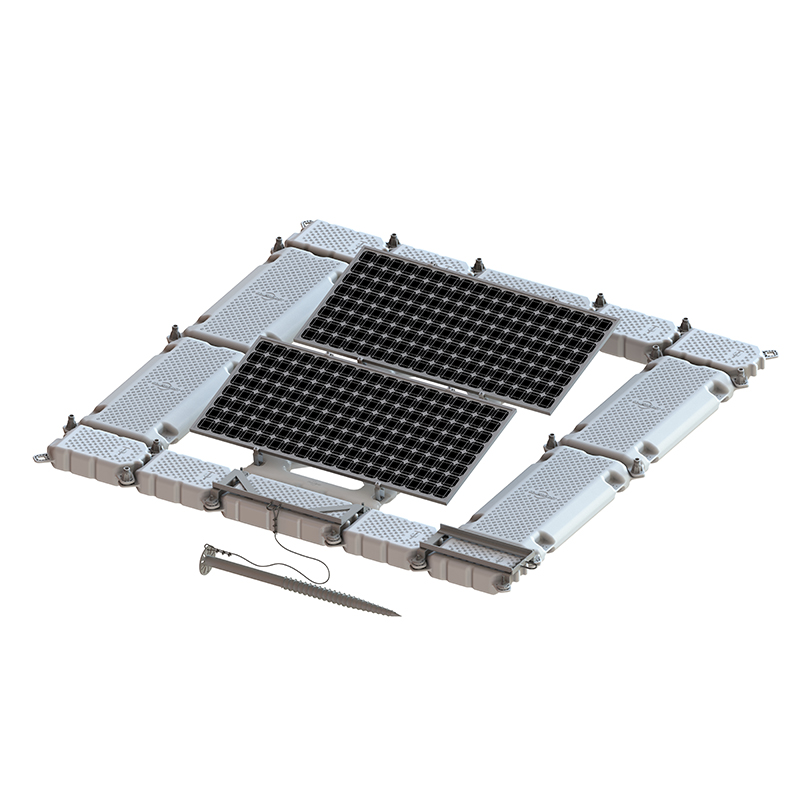

Overview of Floating Mounting System



Solar Module Mounting Structure



Anchoring System



Optional Components

Inverter / Combiner Box Bracket

Straight Cable Trunking

Visiting Aisle

Turning Cable Trunking

Technical Details

Design Description: 1. Reduce water evaporation, and utilize the cooling effect of water to increase the power generation.

2. The bracket is made of aluminum alloy for fireproof.

3. Easy to install without heavy equipment; safe and convenient to maintain.

Installation Site Water Surface
Surface Wave Height ≤0.5m
Surface Flow Rate ≤0.51m/s
Wind Load ≤36m/s
Snow Load ≤0.45kn/m2
Tilt Angle 0~25°
Standards BS6349-6, T/CPIA 0017-2019, T/CPIA0016-2019, NBT 10187-2019, GBT 13508-1992, JIS C8955:2017
Material HDPE, Anodized Aluminum AL6005-T5, Stainless Steel SUS304
Warranty 10 Years Warranty

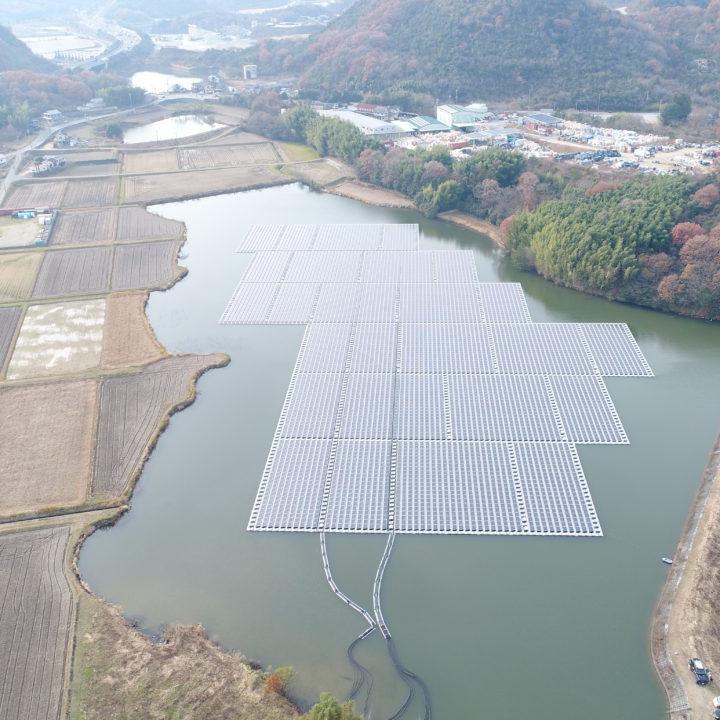

Project Reference
