Four-Way Multi Shuttle

Short Description:

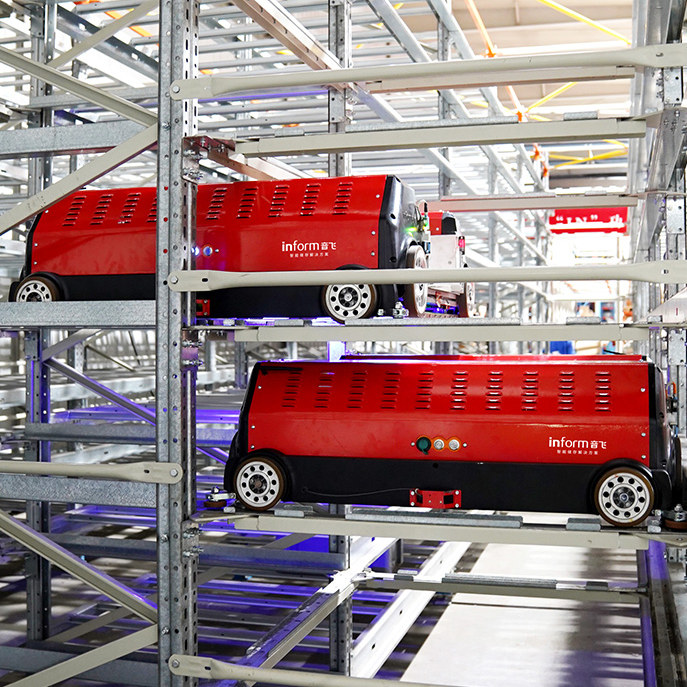

1. Four-way Multi Shuttle is an intelligent handling equipment, used for bins or cartons storage. It is an efficient system that enables fast and accurate sorting and picking-up work, saving space and in flexibility.2. Inform four-way shuttle system consists of Multi-tier racking, Four-way Multi Shuttle, front Cache Conveyor, Lifter, Picking Station and Software System. Each level front conveyor cooperates with shuttle in the same level. Each level racking can be equipped with a shuttle, or several levels share a shuttle. The multi-functional composite lifter at aisle end, can change levels of shuttle, deliver the goods to the front conveyor.3. Four-way Multi Shuttle automatic storage system is especially suitable for E-commerce industry and Automobile industry.

Send email to us

Product Detail

Product Tags

Racking Components

Product Analysis

1	Automatic single inbound	Accepting instruction from host computer, automatically conveys box on inbound buffer area to specified position.
2	Automatic single outbound	Accepting instruction from host computer, conveys box on specified position to outbound end.
3	Automatic shifting	Accepting instruction from host computer, conveys box from one specified position to another.
4	Charging online	Multi-level power threshold control, self-judging and self-charging on line.
5	Self-learning function	Automatically measure, identify data of racking and pallet, and enter parameters independently.
6	Task management	Accept task instructions to resolve task path.
7	Remote function	It is capable of updating and downloading program remotely (In Wi-Fi Network).
8	System monitoring	Monitors system data in real time and alarm raised in sound and light in abnormal status.
9	Heartbeat check	Communicate to host computer control system in real time by heartbeat check, monitoring online status
10	Emergency Stop	Emergency signal sent remotely when emergency, and shuttle stops instantly until emergency lifted.It is capable of guaranteeing device or goods stop safely in maximal deceleration when it executes this instruction.

②What kind of goods are suitable for Four-way Multi Shuttle Storage System ?

Goods package type: Bins, cartons, totes and etc.
Goods dimension(mm): Width 200-600mm,Depth 200-800mm,Height 100-400mm
Good weight: <=35kg
Operation height: <=15m

③Features

Four-way running.
Processing capacity 3-4 times than AS/RS.
Very suitable for small bins, cartons, tote storage, picking, replenishment work.
It is possible to flexibly add more shuttles at any stage and improve system throughput according to business needs.
An efficient solution for temporary storage and support operation on the side of production line.

④Design, Test &Warranty

Design
Free design could be provided with the following information.
Warehouse storage area Length____mm x Width____mm x Clear height___mm.
Warehouse’s door position for loading and unloading goods.
Bins/cartons Length____mm x Width____mm x Height___mm x Weight_____kg.
Warehouse Temperature_____Degrees Celsius
Inbound and outbound efficiency: Quantity of bins/cartons per hour_____.

Test
Four-way Multi Shuttle will be tested before delivery. Engineer will test the whole system on-site or online.

Warranty
Warranty is one year. Fast response within 24 hours for overseas customer. Firstly test online and adjust ,if couldn’t repair online , engineer will go and solve the problems on site. Free spare parts will be supplied during the warranty time.
