GI Serrated steel bar grating

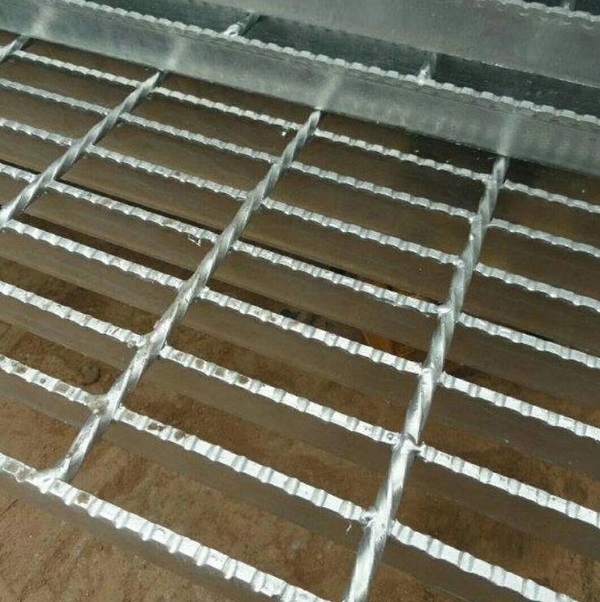

Serrated grating is another type of mild steel grating. Main difference is the load bearing flat steel is serrated / toothed. While the cross bar is the same as plain steel grating.

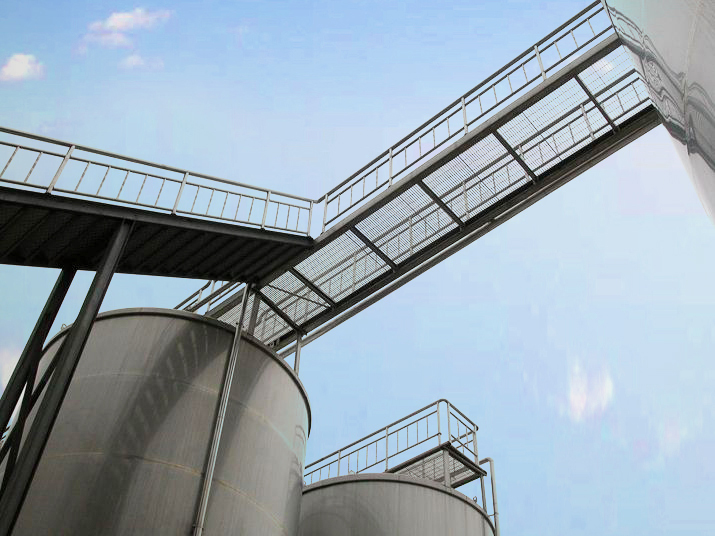

The serrated design makes it your best choice for anti-slip demands. Especially suitable for wet and greasy places, for example: offshore oil production platform grilles, sewage treatment catwalks, stair treads of steel ladder and walkway decking of boat, etc.
Material offer mild carbon steel, aluminum steel and stainless steel. Customized shape acceptable. Cutting services provided.

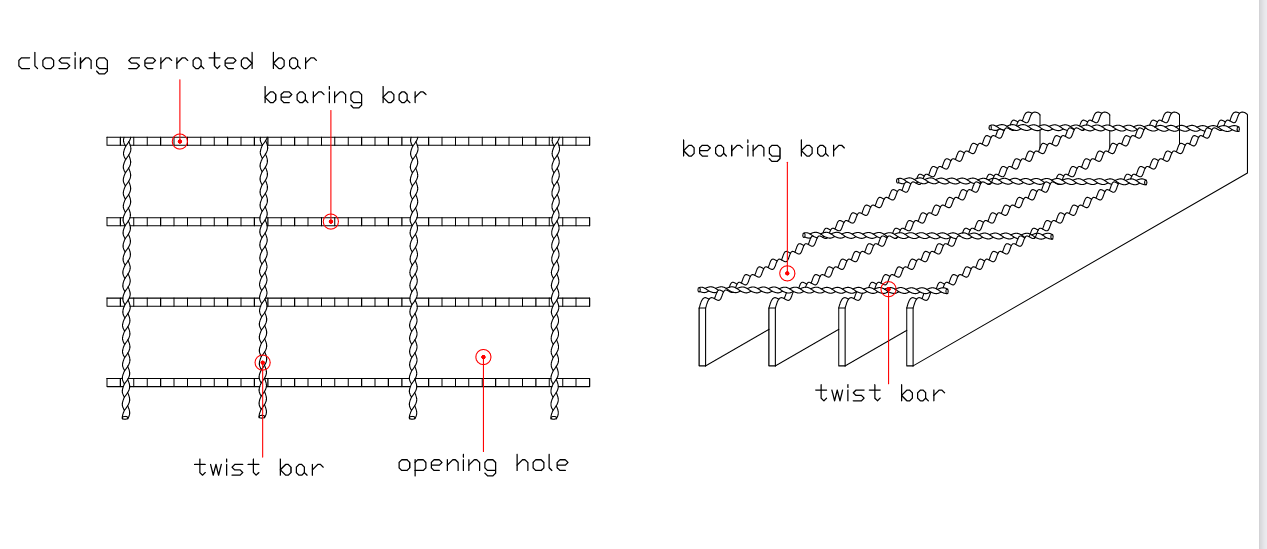

| Item | Specification |
| Load-bearing serrated steel width | 25mm, 30mm, 32mm, 40mm, 45mm, 50mm, 55mm, 65mm, 70mm, 80mm |
| Load-bearing serrated steel thickness | 2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm |
| Edging serrated steel | same as load-bearing serrated steel’s |
| Twist bar | Φ6mm, Φ8mm,Φ10mm,Φ12mm |
| Opening hole | 25mm, 30mm, 35mm, 40mm, 45mm,50mm, 100mm…ect |
Max size of products is 1Mx7M/panel. Hot dip galvanized.
In addition to the characteristics and uses of plain steel grating, it also has strong anti-skid ability, especially suitable for wet and slippery places, offshore oil production platforms, etc. The serrated steel grating adopts hot-dip galvanized surface treatment, which has strong anti-rust ability. The ditch cover and frame of this product can be connected with a hinge, which is anti-theft, safe and easy to open.
Contact us Today! We welcome your inquiry!
