Glue Pudding Packaging Machine Meatballs Packaging Machine Dumplings Packing Machine

Short Description:

Applicable

It is suitable for automatic packaging of granular strip, sheet, block, ball shape, powder and other products. Such as snack, chips, popcorn, puffed food,dried fruits, cookies, biscuits, candies, nuts, rice,beans, grains, sugar, salt, pet food, pasta, sunflower seeds, gummy candies, lollipop, Sesame.


Product Detail

Product Tags

Specification

Model: ZL230
Bag size: L: 80mm-300mm
  W: 80mm-200mm
Suitable film width: 130mm~320mm
Packing speed: 15-70 bags/min
Packing film: Laminated film
Power supply: 220V 50Hz, 1 PH
Compress air consuming: 6kg/ c㎡, 250L/min
Machine noise: ≤75dB
General power: 4.0kw
Weight: 650kg
Outer dimension: 1770 mm x1105 mm x 1500 mm

Main characteristics & Structure features

1 .The whole machine adopts uniaxial or biaxial servo control system, which can choose two kinds of servo single film pulling and double film pulling structure according to the different characteristics of packing material and can choose vacuum adsorption pull film system;

2. Horizontal sealing system can be pneumatic drive system or servo drive system, to meet the diverse needs of different users;

3. Various packing format:pillow bag, side ironing bag, gusset bag, triangle bag, punching bag, continuous bag type;

4. It can be combined with the multi-head weigher, auger scale, volume cup system and other measuring equipment, accurate and measurement;

5. The design of the whole machine conforms to GMP standard and has passed CE certification

optional accessories

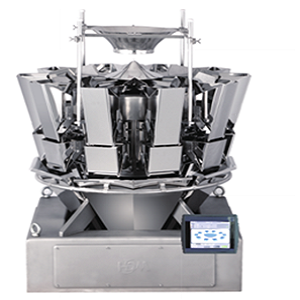

10 HEADS WEIGHER

●  Features
1. One of the most economic&stable multi-head weigher in the world the best cost-effective
2. Stagger Dump avoid bigger items pile up
3. Individual feeder control
4. User friendly touch screen equipped with multiple language
5. Compatible with single packaging machine, rotary bagger, cup/bottle machine, tray sealer etc.
6. 99 preset program for multiple tasks.

1_副本

 Item 10 multi-heads weigher
 Generation  2.5G
 Weighing range  15-2000g
 Accuracy  ±0.5-2g
 Max speed  60WPM
 Power supply  220V , 50HZ, 1.5KW
 Hopper volume  1.6L/2.5L
 Monitor  10.4 inches color touch screen
 Dimension (mm)  1436*1086*1258
 1436*1086*1388

001

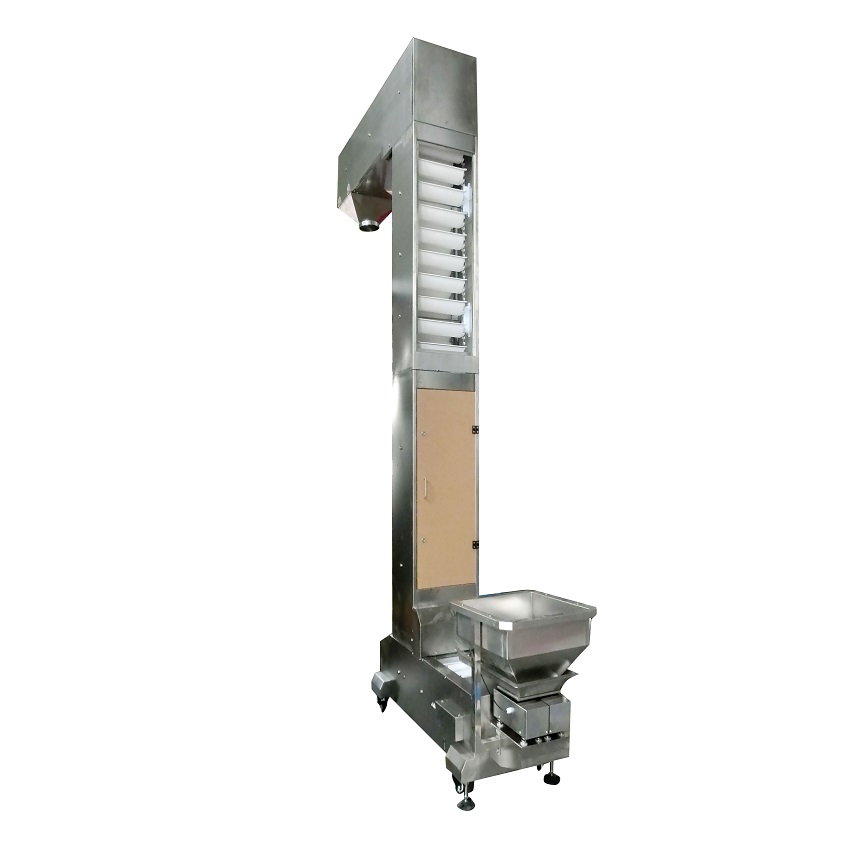

Z-TYPE CONVEYOR

●  Features

The conveyer is applicable for vertical lifting of grain material in departments such as corn, food, fodder and chemical industry, etc. For the lifting machine,

the hopper is driven by the chains to lift. It’s used for vertical feeding of grain or small block material. It has advantages of large lifting quantity and highness.


●  Specification

Model ZL-3200 HD
Bucket hopper 1.5 L
Capacity(m³h) 2-5 m³h
Bucket material PP Food Gradewe have developed dozens of bucket molds  ourselves
Bucket style Slippy bucket
Framework material Sprocket: Mild steel with chrome coatingAxis: Mild steel with nickel coating
Dimension Machine height 3100*1300 mmStandard export case 1.9*1.3*0.95
Optional parts Frequency converterSensorPan for leakage product
The material and brand of the internal parts of the machine can be specified , and it can be be selected according to the product and service environment of the machine



005

SUPPORTING PLATFORM

●  Features

The supporting platform is solid will not affect the measurement accuracy of the combination weigher.

In addition, the table board is to use the dimple plate, it is more secure, and it can avoid slipping.

●  Specification

The size of the supporting platform is according to the type of the machines.

OUTPUT CONVEYOR

●  Features

The machine can send the packed finished bag to after-package detecting device or packing platform.

●  Specification

Lifting height 0.6m-0.8m
Lifting capacity 1 cmb/hour
Feeding speed 30mminute
Dimension 2110×340×500mm
Voltage 220V/45W
003
