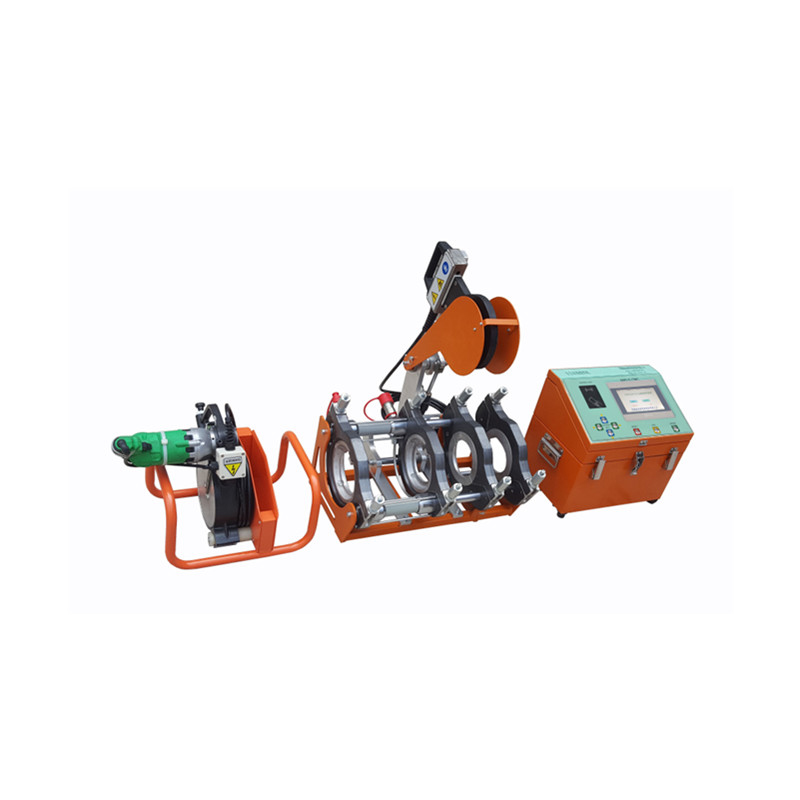

GPS Location CNC Hydraulic Butt Fusion Welding Machines For HDPE Pipe Fittings Welding

Short Description:

1. GPS Location CNC Hydraulic Butt Fusion Welding Machine

2. CNC160(63-160mm)

3. CNC250(75-250mm)

4. CNC315(90-315mm)


Product Detail

Product Tags

Basic Information

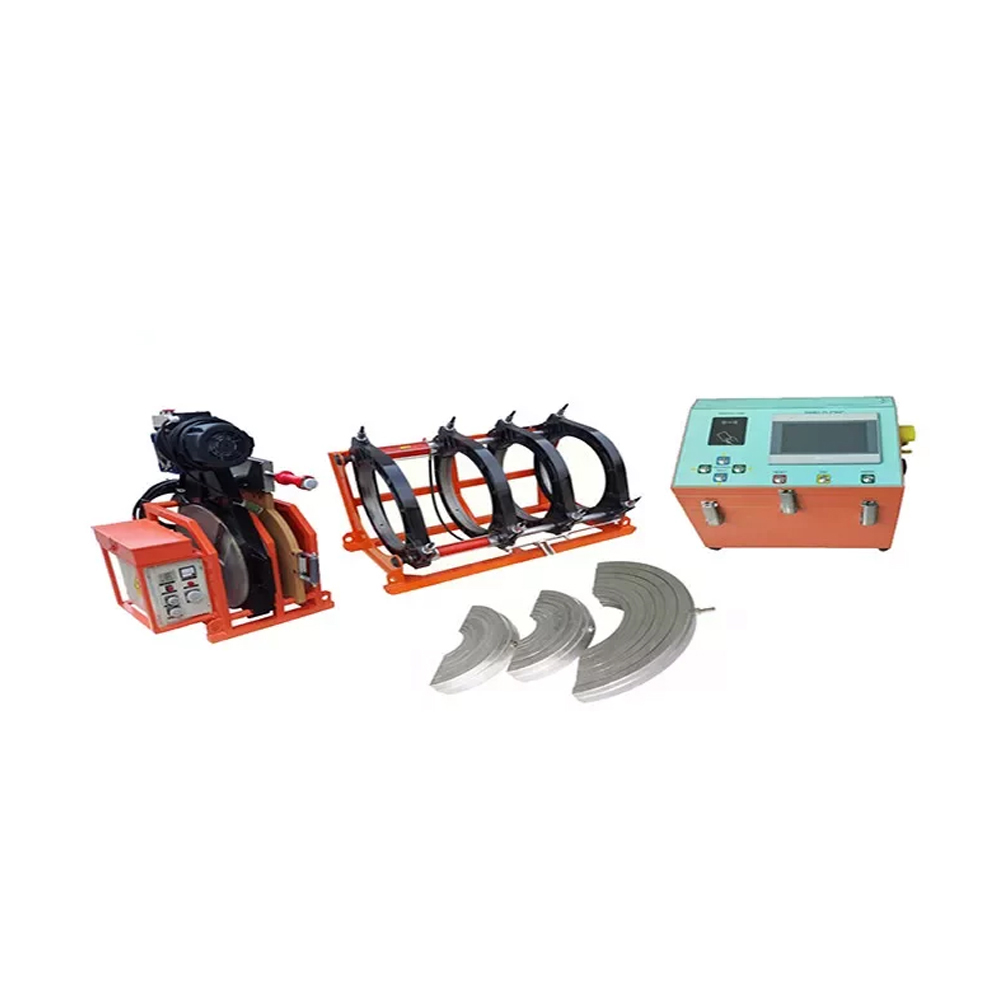

Standard composition

1.Machine body

2.Milling cutter

3.Heating plate

4.Hydraulic control unit

5.Support

6.Clamps

Product Name:

Working Range:

Usage:

Warranty:

Single Phase:

Protection Level:

Automatic Welding Machine 160-355/250-400/315-500/400-630MM
Pipe Fittings Welding 1 Year
50/60Hz IP54

Product Description

  • Quick coupling connections

  • Lifting point

  • First jaw

  • Second jaw

  • Cylinder

  • Third jaw

  • Screw nut for clamps closure

  • Fourth jaw

  • Drag bar for clamps

  • Frame

  • Heater

  • Display

  • Swipe area

  • Emergency button

  • Arrow keys

  • Exit/Stop button

  • ENTER button (confirm the operation)

  • RESET button

  • Box lock

  • Main power switch

  • Temperature environment probe

  • Printer connector

  • Heater connector

  • Facer connector

  • Heater quick Connector

  • Facer quick Connector

  • USB port

    • Application

    CNC is an on-site butt welding machine for pipes and fittings in Polyethylene (PE), Polypropylene (PP), and other thermoplastic materials intended for the transport of water under high pressure.

    We remind you that the use of such machines is limited to authorized skilled and certified personnel, in accordance with the Legislation and Regulations in force.

    Viewing and downloading

    Click the Data Query button to enter the welding data management screen.



    Features

    GENERAL 160 250 315
    Working range: Ø 63 ÷ Ø 160 mm Ø 75 ÷ Ø 250 mm Ø 90 ÷ Ø 315 mm
    Materials:

    HDPE, PB, PP, PVDF
    Range of ambient temperatures:

    -10 ÷ +40 °C
    Power supply:

    230 VAC  50-60 Hz
    Nominal power 2600 W 3950 W 4950 W
    Pressure’s working range:

    Up to150 bar
    Weight 80 Kg 144 Kg 194Kg
    Welding cycle

    Automatic
    Memory capacity

    4000 stored weldings
    Transfer of stored data

    pdf document on USB flash drive
    Barcode traceability Pipe/Fitting upon ISO 12176-4

    Operator upon ISO 12176-3
    GPS

    Enabled
    Noise (dBA)

    LpA = 74 dBA
    Chassis 160 250 315
    Overall thrust section: 9.42 10.99 cm2 12.56 cm2
    Dimensions: [ W×D×H ] 600x400x410 [mm] 960x650x950 [mm] 1090 x 800 x 1100 [mm]
    Weight: 35  Kg 66 Kg 150 Kg
    Facer 160 250 315
    Nominal power 800 W 900 W 900W
    Dimensions: [ W×D×H ] 430×330×80 [mm] 440×450×380 [mm] 600×460×390 [mm]
    Weight: 7.5 Kg 15 Kg 21 Kg
    Heater 160 250 315
    Nominal power 1000W 2000W 3000W
    Dimensions: [ W×D×H ] 350×50×450 [mm] 470×50×490 [mm] 470×50×600 [mm]
    Weight: 3.6 Kg 8 Kg 13 Kg
    Facer/heater holder 160 250 315
    Dimensions: [ W×D×H ] 300×370×440 [mm] 380×265×600 [mm] 590×315×650 [mm]
    Weight: 3.5 Kg 10 Kg 16 Kg
    Hydraulic gearcase
    Nominal power

    1100 W
    Pressure range:

    up to 150 bar
    Hydraulic oil: Viscosity class 46 o 68 ISO 3448

    Recommended :

    - TEXACO RANDO HDZ 46

    - ESSO UNIVIS N 46

    - SHELL TELLUS T 46
    INSERT DIAMETER (welght [kg] full set) 160 250 315
    Ø 63mm 2.6 8.4
    Ø 90 mm 2.3 8.0 16.0
    Ø 110 mm 2.1 7.5 15.5
    Ø 160 mm   6.0 14.0
    Ø 200 mm   4.8 12.5
    Ø 250 mm     10.5

    On request Ø 75/125/140mm Ø 75/125/140/180/225mm Ø 125/140/180/225/280mm

    SAFETY CRITERIA

    The use of the of this product is intended exclusively to qualified personnel according to the standards in force.

    Use the machine only for purposes as described on “Fields of Application” and according to the operator’s manual. Any other use is forbidden, since it may cause harm to persons, damage the machine or other objects.

    Do not remove the safety devices (switches, micro-switches, seals, etc).

    Replace defective or worn out parts only with Original spare parts.

    Any intervention or repair on the machine has to be performed by qualified personnel.
