Hand-Push Thermoplastic Road Marking Machine

Short Description:

  • Applicable Industries: Construction works , Road Marking
  • Core Components: Engine
  • Warranty of core components: 1 Year
  • Power: 4KW
  • Dimension(L*W*H): 1250*800*940mm
  • Weight: 110kg
  • Usage: Thermoplastic Paint Road Line
  • Mark width: 50-450mm(Adjustable)
  • Paint Tank Capacity: 100KG
  • After Warranty Service: Video technical support, Online support
  • Certification: ISO

  • Product Detail

    Product Tags

    Product Description

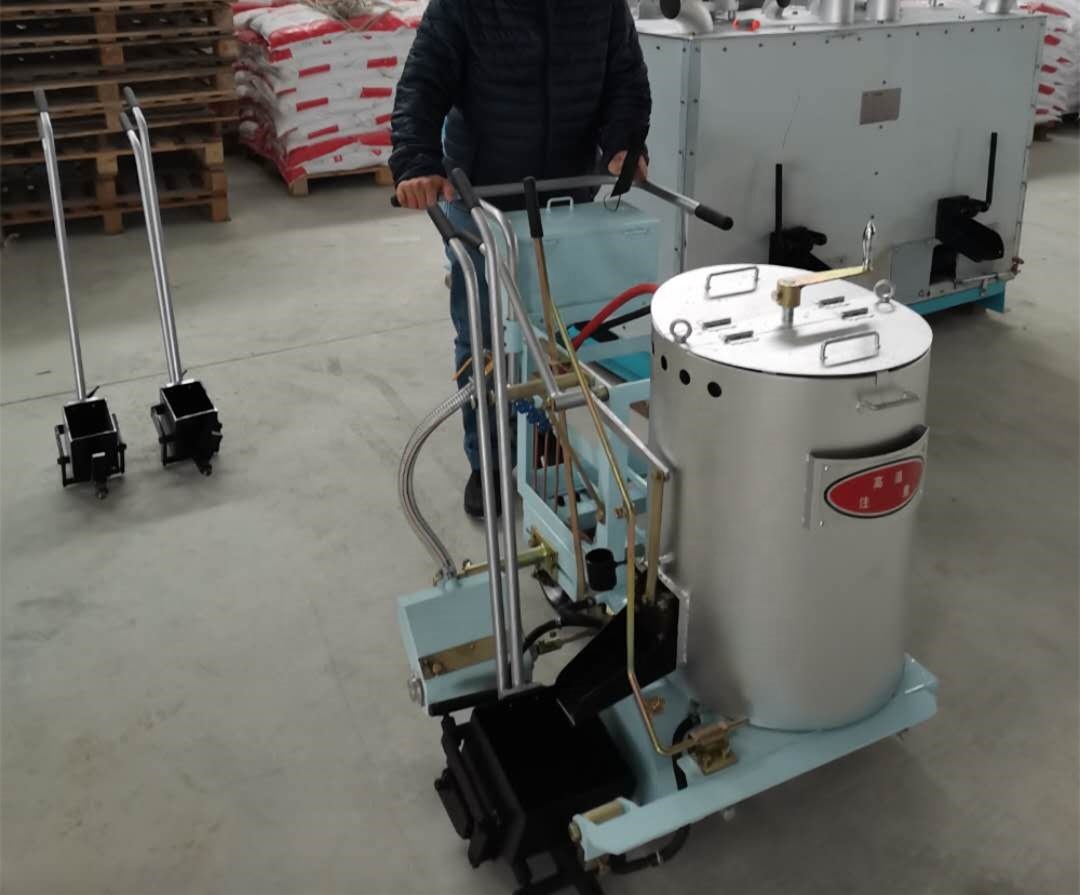

    The hand-push thermoplastic road marking machine is one of the main equipments in the construction of thermoplastic or hot melt marking line.

    This product is simple in structure, flexible in operation and labor-saving in construction, especially for zebra crossing, which is also easy to be applied. It is obviously superior to similar products, and equipped with sub-benchmark to cope with the quick switch of the reference line of various complicated roads and irregular marking lines.
    111

    112

    Parameters

    Name
    Hand-push thermoplastic road marking machine
    Model
    DH-ST150
    Size
    1250×800×940mm
    Weight
    110kg(without hopper)
    Tank capacity
    100kg
    Glass beads box capacity
    20kg
    Marking thickness
    1.2~2.5mm
    Marking width
    150/200/300/400/450mm
    Arrow marking hopper
    300mm
    Zebra marking hopper
    400/450mm
    Speed of marking
    1~1.5Km/h
    Spreader
    Roller spreader
    Floor knife
    Floating carbide floor knives
    Heating method
    Petroleum liquefied gas heating and insulation

    Features:

    1.Marking Hoppers are made of Special Alloy
    2.Two Handles are designed for the Marking Hopper
    3.Adjustable Handle and Carbide Toll help to work on uneven road
    4.Special Rubber Wheels help to work more effectively and stably
    5.Paint Tank of Double Layer Temperature Reservation Structure
