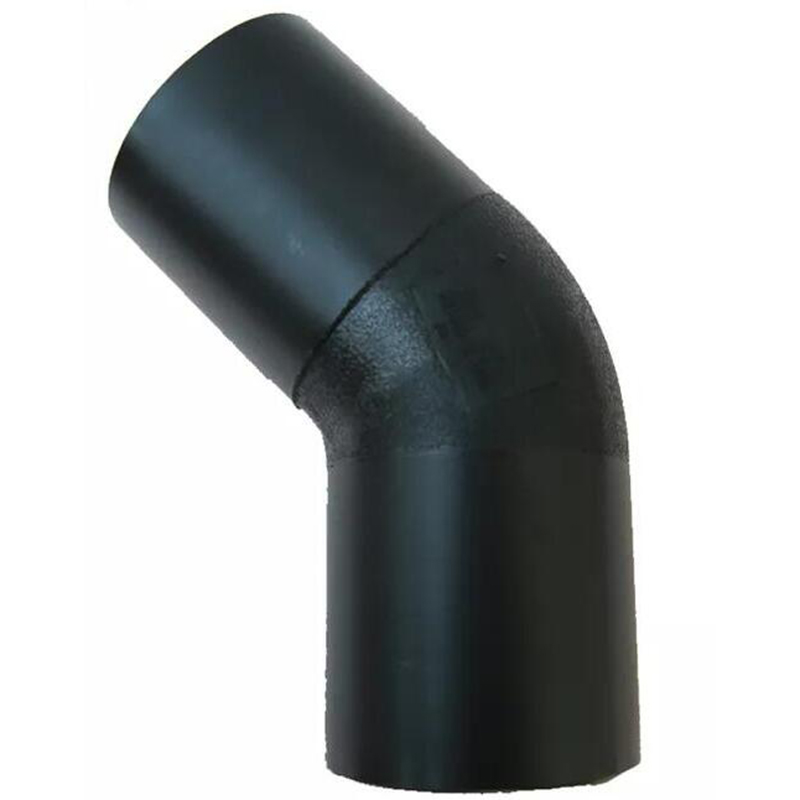

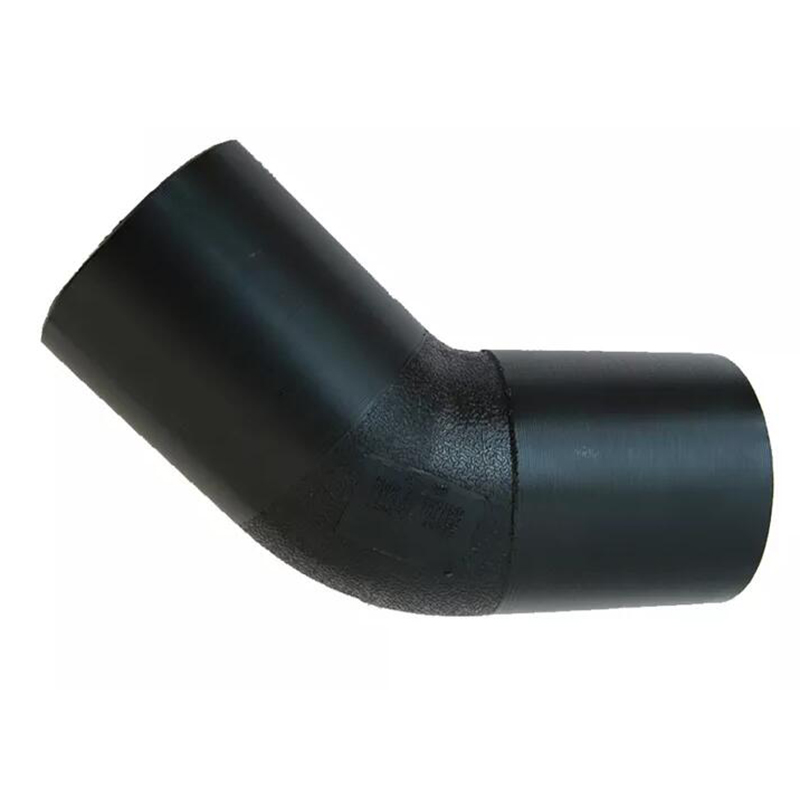

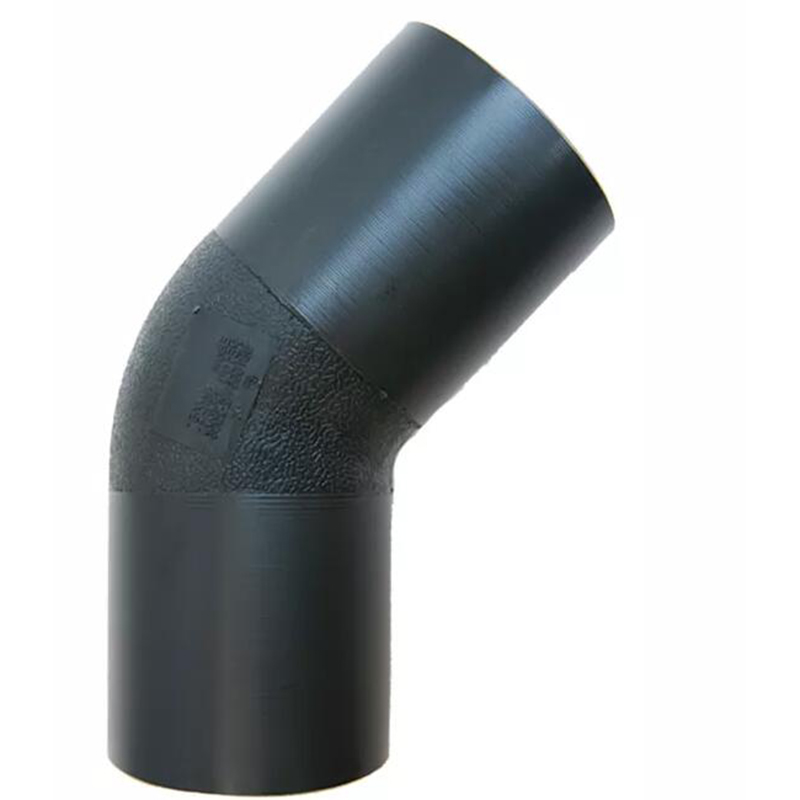

HDPE Irrigation Pipe Fittings , Butt Welding HDPE 45 Degree Elbow CE Approved
Detail Information
| Plastic | Buttfusion |
| 45 Degree Elbow | Irrigation Pipe Fitting Butt Welding 45 Degree Elbow Hdpe Fusion Fittings |
| Gas,Water,Oil Etc | PN10 PN16 |
Product Description
Irrigation Pipe Fitting Butt Welding 45 Degree Elbow Hdpe Fusion Fittings
Data sheets of 45 degree elbow
| Product name | HDPE 45 degree elbow |
| Specification available | DN63-630mm (outer diameter) |
| SDR/pressure ratings | SDR11 & SDR13.6 / SDR17 |
| Material to be used | Virgin PE80 or PE100 raw material |
| Samples available | Yes, samples available for small quantity. |
| Packing method | Small dia. 63-200mm be packed by cartons, big dia.Up 200mm be wrapped by Poly-wava bags |
| MOQ | No |
| Warranty time | 10 years for normal use |
| Payment term | T/T or LC at sight |
| FOB loading port | Ningbo or Shanghai China /Designated port |
Specification
| Specifications
φD×45° |
L
mm |
A
mm |
B
mm |
| 63×45° | 160 | 63 | 79 |
| 75×45° | 180 | 70 | 89 |
| 90×45° | 228 | 79 | 114 |
| 110×45° | 246 | 82 | 118 |
| 125×45° | 248 | 87 | 115 |
| 160×45° | 310 | 98 | 138 |
| 180×45° | 340 | 100 | 159 |
| 200×45° | 355 | 112 | 167 |
| 225×45° | 398 | 120 | 173 |
| 250×45° | 420 | 129 | 192 |
| 315×45° | 510 | 150 | 220 |
| 355×45° | 260 | 155 | |
| 400×45° | 252 | 148 | |
| 450×45° | 290 | 170 | |
| 500×45° | 318 | 205 | |
| 560×45° | 330 | 200 | |
| 630×45° | 375 | 220 |
