High Frequency Mica Capacitor | CGEA
Brief Introduction
◆This capacitor is silver-layer coating, can used at high frequency 1KHz~1MHz and big current 200A.
◆Operating Temperature: 0℃~50℃
◆Relative Humidity： 35%~70%
◆Suit Equipment: 3kw—-10kw high frequency equipment.;
◆Function：High frequency resonance.
Feature
| No. | Item | Standard | Test Method |
| 1 | Frequency | ≤800KHz | Electrical Bridge |
| 2 | Current | ≤200A | Ampere Meter |
| 3 | Voltage | ≤1000V | Puncture Tester |
| 4 | Capacitance | 0.01μF~ 0.1μF | Capacitance Meter |
| 5 | Insulate Resistance | >500MΩ | Insulation Tester |
| 6 | Dissipation Factor | ≤0.5 |

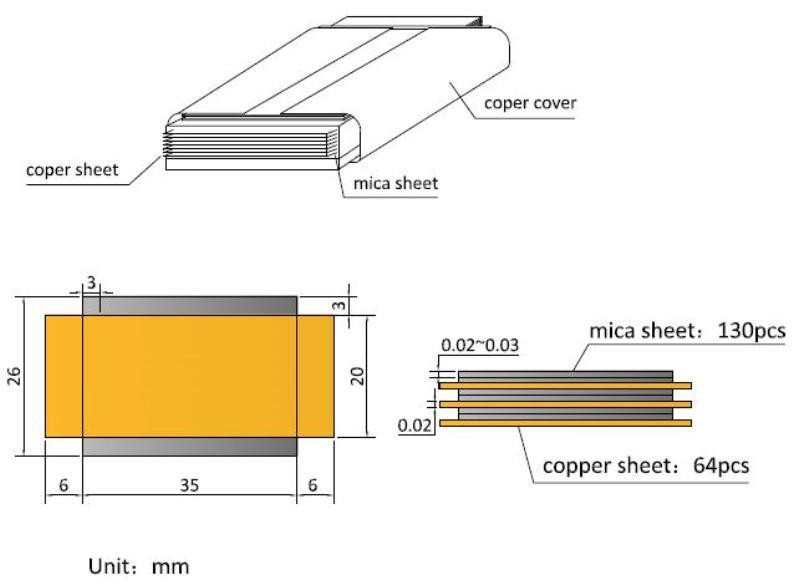

Outline Drawing
Guarantee and Storage
Store temperature 5℃ ~ 25 ℃, put at dry and sealed. Quality guaranteed 12 months after shipping.
Application
High frequency welding machine,big current welding machine etc.
