HIGH POWER LED K-COB STADIUM LIGHTS-SPLA SERIES 600-1200W
PRODUCT FEATURES
● Dual in one heat sink
Maximizing the contact area between
fins&pipes, dissipating the heat by the reserved 360° air vent.
Customizing for K-COB light source.
● Metal Halid Outlook
Made of 6063 aluminum,
light weight and rust proof,
private molding.
● Perfect Glare Prevention
3kinds of visor provide different lighting
distance and perfect glare prevention at
the same time.
● Patented Phosphor Ceramic Light Source
Exclusive single Phosphor ceramic light soure of 1200w, 55,000 hrs lifespan.LM80 approved, and developing patented in USA.
● Delicate Distribution Reflector
Made of mirror aluminum VEGA98 by
ALMECO, 98% light reflecting rate. B.A of
10° /15°/25° /30°are available , can meet
the requirement of different stadium.

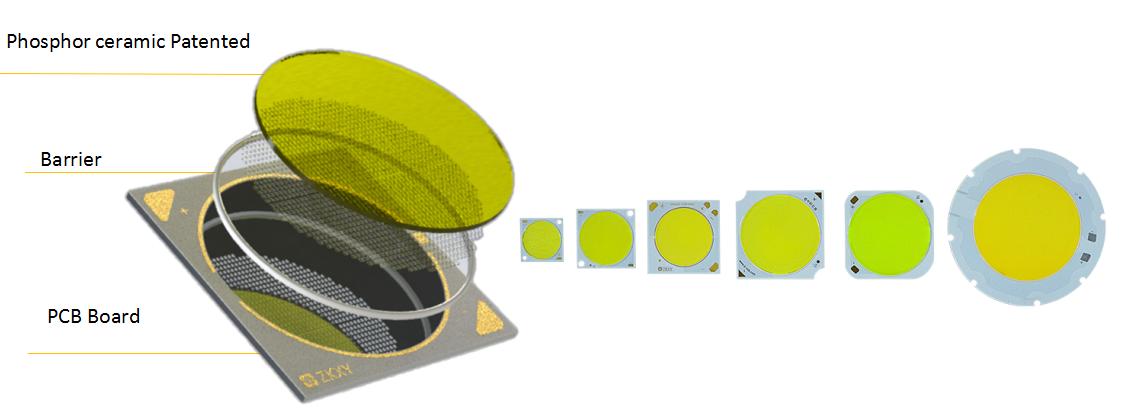

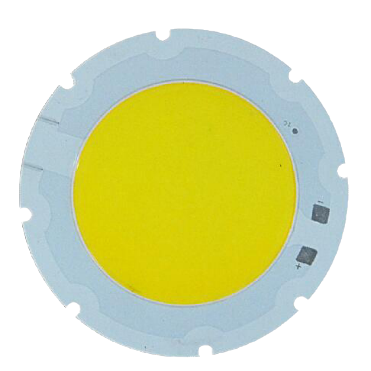

LIGHT SOURCE
K-COB is a unique LED packaging pattern — by using exclusive Phosphor ceramic to replace traditional silicone and phosphor,
this brand new generation LED light source brings better reliability and extremly low lumen decay.
PHOTOELECTRIC PARAMETER
| Item No. | Power | Input Voltage | CCT | CRI | Lumen | Efficacy | Beam Angle |
| SPLA600 | 600W | AC126 ~ 528V | 2200~ 6500K | 70~85ra | 6600lm | 110~130lm/w | 15°,25°,etc |
| SPLA1000 | 1000W | AC126 ~ 528V | 2200~ 6500K | 70~85ra | 11000lm | 105~125lm/w | 15°,25°,etc |
| SPLA1200 | 1200W | AC126 ~ 528V | 2200~ 6500K | 70~85ra | 132000lm | 100~120lm/w | 15°,25°,etc |
Comparison between KCOB stadium light&other SMD sports light
Other sports lighting fixture
VS
K-CoB Single CoB lighting system
SMD array:
LEDs are separated due to the difficulties of heat sinking and forced to through the inefficient plastic lens.
Lens:
Warp and crack after long-time working.
Glare&dark spot is inevitable in actual case.
Real single light source:
Exclusive phosphor ceramic COB with high light density LES φ 75mm for 1200w.
LM80 certificated.
Proven reflector technique:
High efficient reflector by ALMECO,
No glare and scatter outside of projected lighting area.
