High Precision Steel Coils Slitting Machine
Product Description:
This welding tube mill is the main equipment for producing straight welded tubes in many departments, such as metallurgy, machinery, liht industry, and building materials, etc. Itcan roll certain specification long steel belt into tube barrels, and then weld those tube barrels into tubes. And this machine can be used to manufacture profiled pipes as well as round pipes.
Main parameter details
| Type | HJ400 | HJ500 | HJ600 | HJ700 |
| Strip Width (mm) | 400 | 500 | 600 | 700 |
| Strip Thickness(mm) | 0.5-2.0 | 0.5-3.0 | 0.5-3.0 | 0.5-3.0 |
| Speed(m/min) | 20-60 | 20-60 | 20-60 | 20-60 |
| Winding motor power | 30 | 37 | 45 | 55 |
| Points cut motor power | 7.5 | 11 | 15 | 22 |

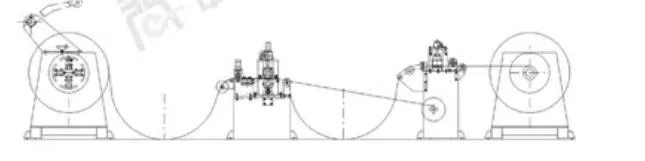

Process Flow
Strip coil-uncoiler-bias correction –slitting machine-waste winder-pre slicing machine,tensioner-colling machine
FAQ:
01. Are you manufacturer ?
A: Yes, we are a manufacturer which is located in Yangzhou city Jiangsu Province Chiina a base production place of this industry.
02. What information do you need before making quotation ?
A: Pipe material, size ,thickness that you want to produce.
03. What shall I do to start a new business in pipe ?
A: We will provide you free consultant of complete suggestions including your factory layout and workshop design ,etc.
04. What’s your special between other suppilers ?
A: 1. We have more than 30 years experience in this industry, our products were exported all over the world. 2. We had ISO/CE that you can gain the highest quality and after-sales service from us with the costest price.
So please contact and welcome to visit us , The best time just now !
Tks.
WHY CHOOSE US
Since its establishment, our factory has been developing first world class products with adhering the principle
of quality first. Our products have gained excellent reputation in the industry and valuabletrusty among new and old customers..
