High Temperature Coin Super Capacitors ▏EDLC ▏CEAB
| Items | Characteristics | |||
| Rated Voltage | 5.5V | |||
| Operating Temperature
Range |
-25 ~+85℃ | |||
| Surge Voltage | 6.0V | |||
| Capacitance Range | 0.1~1.5 F | |||
| Capacitance Tolerance (25°C) | -20~+80% | |||
|
Temperature Characteristics |
||||
| The specifications shall be met at
category temperature rangefrom -25℃ to 85℃ |
Capacitance
range |
Within 30% of the value at 25 ℃ | ||
| ESR | Less than 2 times of the initial
specified value |
|||
|
High Temperature Loaded |
The specifications shall be met
after rated voltage applied at 85℃ for 1000 hours |
|||
|
High Temperature Storage |
||||
| The specifications shall be met
after storage at 85 ℃ for 1000 hours |
Capacitance
range |
Within 30% of the initial value | ||
| ESR | Less than 4 times of the initial
specified value |
|||

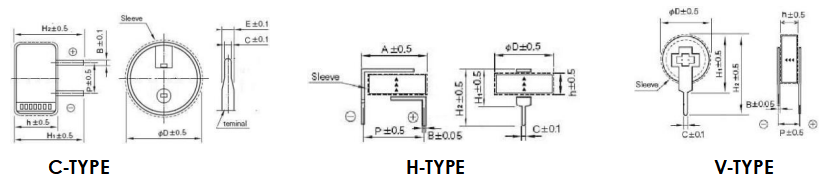

Dimensions
| UR
(Surge Voltage) Code |
Rated Cap. 25℃, |
ESRAC (1KHz) |
Leakage Current (72hrs) |
Size | P/N | |||||||
| D | h | P |
H1 |
H2 |
B | C | E | |||||
| (v) | (F) | (Ω) | (mA) | (mm) | – | |||||||
|
5.5 (6) 5R5
C-TYPE |
0.1 | 75 | 0.003 | 13.5 | 7.0 | 5.0 | 12.5 | 13.5 | 0.4 | 0.8 | 1.2 | CEAB5R5104ZC135070 |
| 0.22 | 75 | 0.003 | 13.5 | 7.0 | 5.0 | 12.5 | 13.5 | 0.4 | 0.8 | 1.2 | CEAB5R5224ZC135070 | |
| 0.33 | 50 | 0.005 | 13.5 | 7.0 | 5.0 | 12.5 | 13.5 | 0.4 | 0.8 | 1.2 | CEAB5R5334ZC135070 | |
| 0.47 | 50 | 0.005 | 13.5 | 7.0 | 5.0 | 12.5 | 13.5 | 0.4 | 0.8 | 1.2 | CEAB5R5474ZC135070 | |
| 1.0 | 30 | 0.008 | 20.5 | 7.5 | 5.0 | 12.0 | 12.5 | 0.4 | 0.8 | 1.2 | CEAB5R5105ZC205075 | |
| 1.5 | 30 | 0.008 | 20.5 | 7.5 | 5.0 | 12.0 | 12.5 | 0.4 | 0.8 | 1.2 | CEAB5R5155ZC205075 | |
| UR
(Surge Voltage) Code |
Rated Cap. 25℃, |
ESRAC (1KHz) |
Leakage Current (72hrs) |
Size | P/N | |||||||
| D | h | P |
H1 |
H2 |
A | B | C | |||||
| (v) | (F) | (Ω) | (mA) | (mm) | – | |||||||
|
5.5 (6) 5R5
H-TYPE |
0.1 | 75 | 0.005 | 11.5 | 4.5 | 10 | 6 | 9 | 12.5 | 0.2 | 0.8 | CEAB5R5104ZH115045 |
| 0.22 | 75 | 0.005 | 11.5 | 4.5 | 10 | 6 | 9 | 12.5 | 0.2 | 0.8 | CEAB5R5224ZH115045 | |
| 0.33 | 50 | 0.008 | 11.5 | 4.5 | 10 | 6 | 9 | 12.5 | 0.2 | 0.8 | CEAB5R5334ZH115045 | |
| 0.47 | 50 | 0.008 | 11.5 | 4.5 | 10 | 6 | 9 | 12.5 | 0.2 | 0.8 | CEAB5R5474ZH115045 | |
| 1.0 | 30 | 0.010 | 19 | 4.5 | 20 | 7 | 9.5 | 20 | 0.2 | 1.0 | CEAB5R5105ZH190045 | |
| 1.5 | 30 | 0.010 | 19 | 4.5 | 20 | 7 | 9.5 | 20 | 0.2 | 1.0 | CEAB5R5155ZH190045 | |
| UR
(Surge Voltage) Code |
Rated Cap. 25℃, |
ESRAC (1KHz) |
Leakage Current (72hrs) |
Size | P/N | |||||||
| D | h | P |
H1 |
H2 |
B | C | ||||||
| (v) | (F) | (Ω) | (mA) | (mm) | – | |||||||
|
5.5 (6) 5R5
V-TYPE |
0.1 | 75 | 0.005 | 11.5 | 4.5 | 5 | 13 | 16.5 | 0.2 | 0.8 | CEAB5R5104ZV115045 | |
| 0.22 | 75 | 0.005 | 11.5 | 4.5 | 5 | 13 | 16.5 | 0.2 | 0.8 | CEAB5R5224ZV115045 | ||
| 0.33 | 50 | 0.008 | 11.5 | 4.5 | 5 | 13 | 16.5 | 0.2 | 0.8 | CEAB5R5334ZV115045 | ||
| 0.47 | 50 | 0.008 | 11.5 | 4.5 | 5 | 13 | 16.5 | 0.2 | 0.8 | CEAB5R5474ZV115045 | ||
| 1.0 | 30 | 0.010 | 19 | 4.5 | 5 | 20.5 | 25.5 | 0.2 | 0.8 | CEAB5R5105ZV190045 | ||
| 1.5 | 30 | 0.010 | 19 | 4.5 | 5 | 20.5 | 25.5 | 0.2 | 0.8 | CEAB5R5155ZV190045 | ||
