⚫Double cells in series
⚫Higher voltage
⚫RoHS compliant
⚫Consumer electronic
⚫AMR
⚫DC-DC converters
Items | Characteristics | |||||||
Rated Voltage | 5.5V | |||||||
Operating Temperature Range | -40 ~+65℃ | (-40 ~+85℃@4.6V) | ||||||
Surge Voltage | 5.7V | |||||||
Capacitance Range | 0.5~5 F | |||||||
Capacitance Tolerance (25°C) | -10~+30% | |||||||
The specifications shall be met at
category temperature rangefrom -40℃ to 65℃ |
Capacitance
range |
Within 30% of the value at 25℃ | ||||||
Temperature Characteristics | ||||||||
Less than 2 times of the initial
specified value |
||||||||
ESR | ||||||||
The specifications shall be met after rated voltage applied at
65℃ for 1000 hours |
Capacitance range |
Within 30% of the initial value |
||||||
High Temperature Loaded | ||||||||
ESR | Less than 2 times of the initial
specified value |
|||||||
The specifications
after storage at hours |
shall
65℃ |
be met
for 1000 |
Capacitance range | Within 30% of the initial value | ||||
High Temperature Storage | ||||||||
ESR | Less than 2 times of the initial
specified value |
|||||||
The specifications shall be met after 500,000 cycles at 25 ℃ , cycle of charge/discharge from VR to 1/2VR | Capacitance
range |
Within 30% of the initial value |
||||||
Cycle Life | Less than 2 times of the initial
specified value |
|||||||
ESR |
UR
(Surge Voltage) Code |
Rated Cap. 25℃, |
Impedance |
Leakage Current (72hrs) |

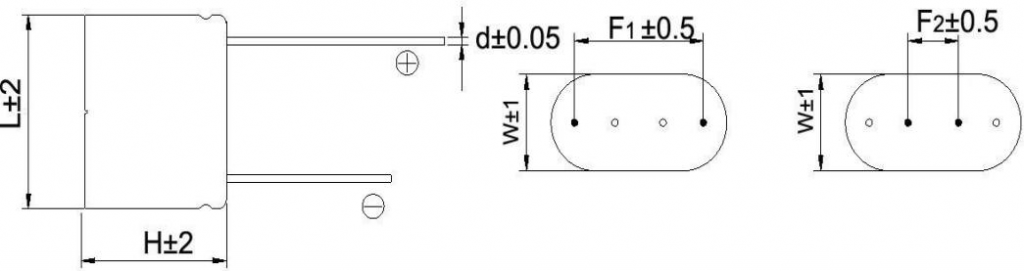

Size WxLx H |
F |
d |
P/N |
|
ESRDC |
ESRAC
(1KHz) |
|||||||
(v) | (F) | (mΩ) | (mΩ) | (mA) | (mm) | (mm) | (mm) | – |
0.5 | 800 | 400 | 0.008 | 8.5 x 17 x 17 | 12/5.0 | 0.6 | CEDA5R5504V081717 | |
5.5 | 1 | 500 | 260 | 0.010 | 8.5 x 17 x 17 | 12/5.0 | 0.6 | CEDA5R5105V081717 |
1.5 | 300 | 160 | 0.012 | 8.5 x 17 x 23 | 12/5.0 | 0.6 | CEDA5R5155V081723 | |
(5.7) | ||||||||
2.5 | 260 | 140 | 0.016 | 10x 20 x 22 | 15.5/5.5 | 0.6 | CEDA5R5255V102022 | |
5R5 | ||||||||
3.5 | 160 | 110 | 0.02 | 10x 20x 22 | 15.5/5.5 | 0.6 | CEDA5R5355V102022 | |
5 | 120 | 80 | 0.03 | 10x 20x 27 | 18/8.0 | 0.6 | CEDA5R5505V102027 |
