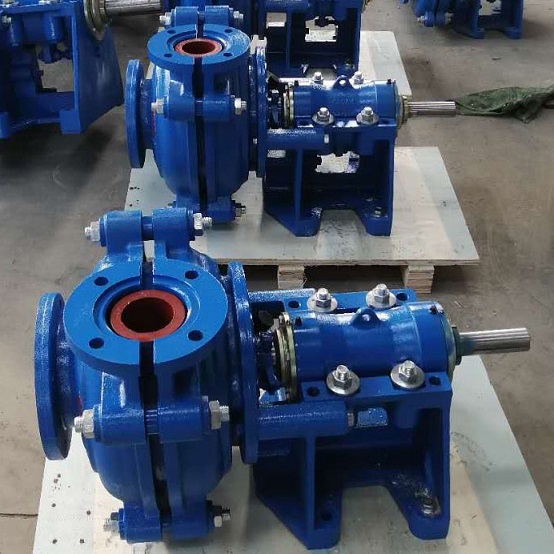

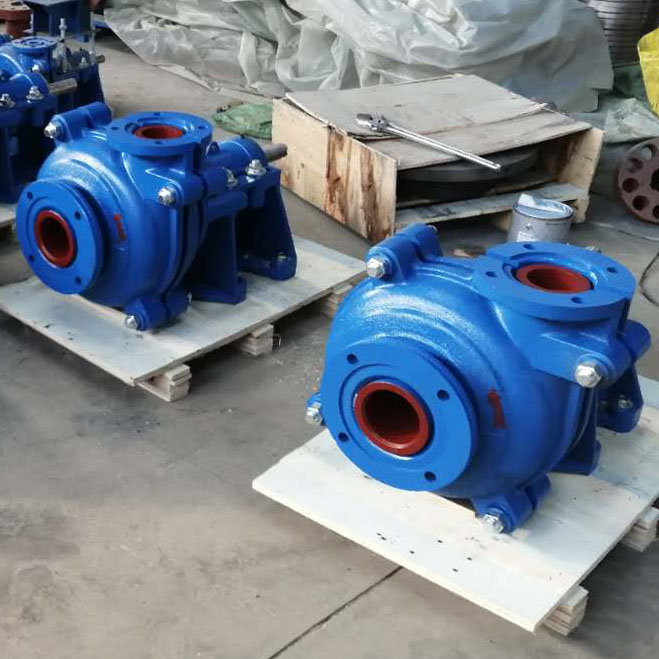

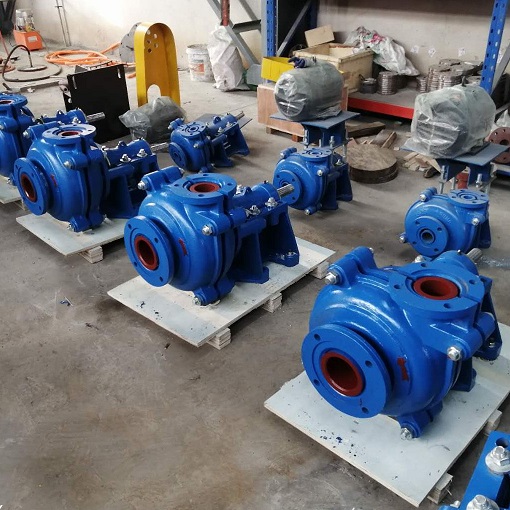

Horizontal Metal Lined Slurry Pump SH/75C

Short Description:

Pump Model: SH/75C (4/3-AH) SH/75C is equivalent to 4/3C-AH, a 3” discharge small slurry pump, which is widely used for abrasive and robust slurry applications. The slurry pump can be supplied as bare shaft slurry pump only, or can be supplied complete with electric motor and accessories. For electric motors, we can supply brands like ABB, Siemens, WEG, and for accessories, both coupling and belts & pulleys are available. SH/50C is horizontal centrifugal type heavy duty slurry pum…


Product Detail

Product Tags

Pump Model: SH/75C (4/3-AH)

SH/75C is equivalent to 4/3C-AH, a 3” discharge small slurry pump, which is widely used for abrasive and robust slurry applications. The slurry pump can be supplied as bare shaft slurry pump only, or can be supplied complete with electric motor and accessories. For electric motors, we can supply brands like ABB, Siemens, WEG, and for accessories, both coupling and belts & pulleys are available.

SH/50C is horizontal centrifugal type heavy duty slurry pump. It is used to handle tailings in various mining sectors. Plus, it can also be used to feed cyclones for sand washing plants, quarries, etc. SH is high wear-resistant pump series for the hydraulic conveyance of liquids-solids of any type. It’s wet-end spare parts are made of high chrome alloy, a kind of highly abrasion and erosion resistant white iron, similar to ASTM A532.

Material Construction:

Part Description Standard Alternative
Impeller A05 A33, A49
Volute Liner A05 A33, A49
Front Liner A05 A33, A49
Back Liner A05 A33, A49
Split Outter Casings Grey Iron Ductile Iron
Shaft Carbon Steel SS304, SS316
Shaft Sleeve SS304 SS316, Ceramic, Tungstan Carbide
Shaft Seal Expeller Seal Gland Packing, Mechanical Seal
Bearings ZWZ, HRB SKF, Timken, NSK etc.

Applications:

Mine and Quarry, Brine Salt Slurry, Sugar Industry, Clay, Zinc Mining, Suspension Prepation, Sand and Gravel etc.

Specifications:

Flowrate: 86.4-198m3/hr; Head: 9-52m; Speed: 1000-2200rpm; Max. Passage Size: 28mm; Max. Efficiency: 71%

Impeller: 5-Vane Closed Type with Vane Diameter: 265m; Max. Driven Motor Power: 30Kw

(Option: Change C bearing assembly to CC, which can be driven by motor of max. 55Kw, Change C bearing assembly to D, which can be driven by motor of max. 60Kw)

SH75C --
