China Injection Molding HDPE Electrofusion Fittings PN16 SDR11 PE100 Reducing Tee For Water Tubing Manufacturer and Supplier

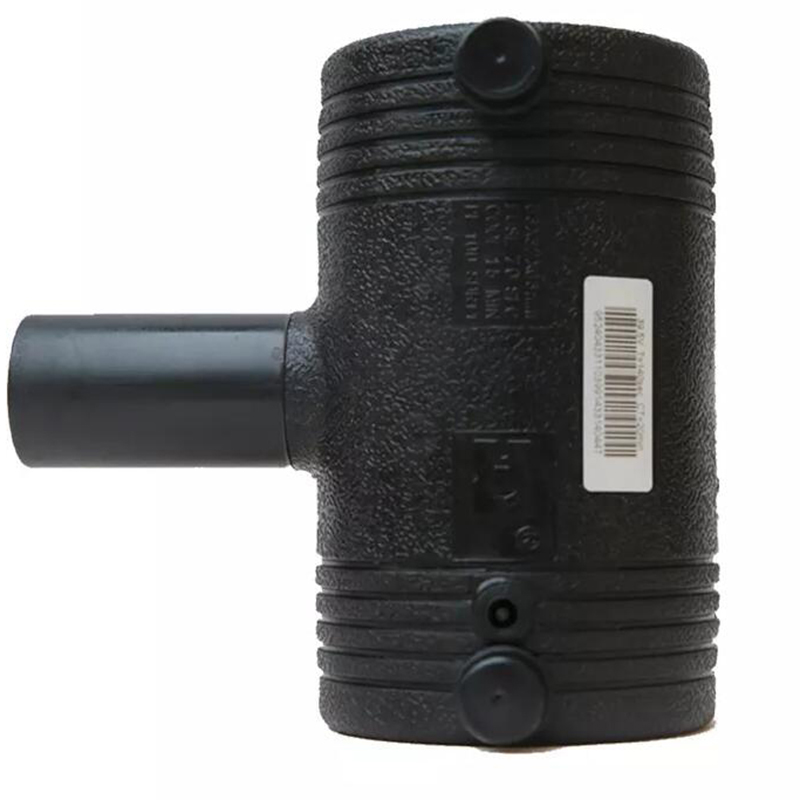

Injection Molding HDPE Electrofusion Fittings PN16 SDR11 PE100 Reducing Tee For Water Tubing

Short Description:

1. Name: EF Reducing Tee

2. Size: dn25-630mm

3. PE100 SDR11 Water PN16 or Gas 10 Bar

4. EN12201-3, EN1555-3

Send email to us

Product Detail

Product Tags

Detail Information

Product Name:

Standard:

Material:

Application:

Technic:

Connection:

HDPE Electrofusion Fittings PN16 SDR11 PE100 Reducing Tee For Water Tubing	EN 12201-3:2011,EN 1555-3:2010
PE100 Virgin Raw Material	Gas,Water,Oil Etc
Injection Molding	Electrofusion

Product Description

Electrofusion isa method of joiningMDPE,HDPE and other plastic pipes using special fittings that have built-in electric heating elements which are used to weldthe joint together.

Electrofusion HDPE fittings(Include electrofusion reducing tee, Elbow, Reducer, End cap, Stub end etc.)are welded by electrofusion machine to connect HDPE pipes together: The electrofusion welding machine plug in electricity and turn on, The copper wire buried inserted in electric fuse HDPE fittings are heated and make HDPE melt,Which jointHDPE pipe and fittings well.

Products name	Electrofusion HDPE Reducing Tee
Sizes Available	As below specification sheet in detail
SDR	SDR11,SDR17
PN	PN16,PN10
Material Brand	SINOPEC, BASELL, SABIC, BOROUGE etc
Executive Standard	EN 12201-3:2011,EN 1555-3:2010
Colors Available	Black color , blue color, Orange or as request.
Packing Method	Normal export packing. by carton
Production Lead Time	Depending on the order quantity.Normally about 2~3 weeks for 20′ GP, 3~4 Weeks for a 40′GP.
Certificate	ISO, CE,BV,Factory Test Report
Supply Ability	100000 Ton/Year
Payment Method	T/T, L/C at sight
Trading Method	EXW, FOB, CFR, CIF,DDU

Specification

Specifications φD×D1×φD	L mm	A mm	B mm	Φd mm
20×20×20	100	40	50	4.7
25×25×25	105	45	50	4.7
32×32×32	120	45	55	4.7
40×40×40	125	45	60	4.7
50×50×50	145	55	55	4.7
63×63×63	165	55	60	4.7
75×75×75	195	70	70	4.7
90×90×90	210	65	775	4.7
110×110×110	240	75	80	4.7
125×125×125	255	80	85	4.7
160×160×160	310	90	95	4.7
180×180×180	340	100	95	4.7
200×200×200	360	100	105	4.7
250×250×250	410	100	115	4.7
315×315×315	520	125	115	4.7
400×400×400	600	125	115	4.7
