Maintenance-free battery
It has an electric start function, which can effectively prevent environmental pollution caused by electrolyte leakage. At the same time, the battery is stable and reliable to ensure the normal start of the equipment anytime and anywhere.
Low Noise
The well-designed large-capacity exhaust cylinder can effectively absorb the noise emitted by the engine and effectively reduce noise pollution.
Safety Protection Device
The safety protection device can effectively prevent the high temperature gas discharged from the engine from directly contacting the human body, causing skin burns.
Multiple devices connected
Through a dedicated connection tool, multiple devices can work in series at the same time to achieve the purpose of long-distance water supply.

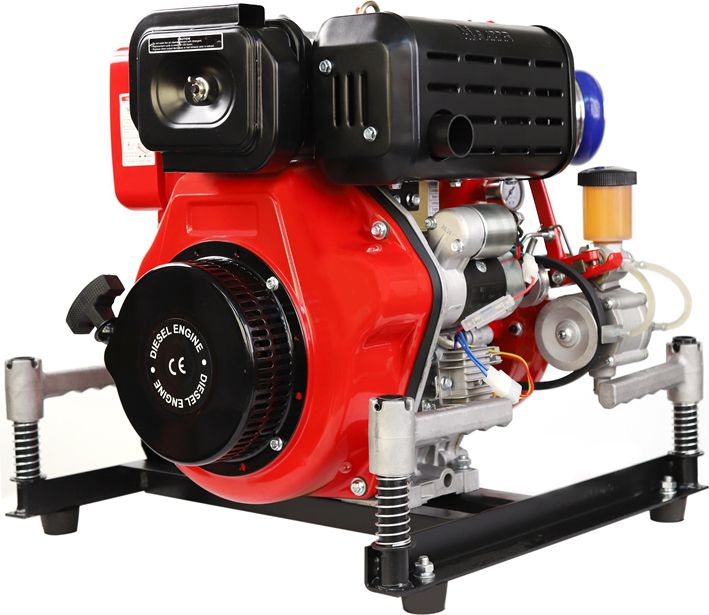

Model Number: JBC5.2/8-W
Engine: Four-stroke, air-cooled diesel engine. Displacement 420cc, 188FB
Output Power: 13HP(9.6KW)
Pump performance: 300L/[email protected], 480L/[email protected], 1000L/[email protected]
Total Weight: 68kg
Dimensions: 590x560x570(mm)
Model: 4 Strokes
Cylinders: Double Cylinders
Fuel Type: Diesel 0# and below
Tank Capacity: 6L
Fuel System: Direct Fuel Injection
Lubrication system: Splash lubrication
Engine oil capacity: 0.9L
Starter: Hand / Electric start
Ignition method: High pressure atomization
Fuel consumption: 3.5L/h
Pump Specification: Single suction with single stage centrifugal pump.
Inlet Diameters: 2.5″ (65mm)
Outlet Diameter: 2.5″(65mm)
Number of outlets: 1
Outlet valve type: Ball Valve
Water diversion method: Rotary vane vacuum pump water diversion
Suction time Maximum: 15s
Maximum suction depth: 9m
Maximum Water Lift: 65m
Max. Flow: 1000L/min
Rated Flow: 480L/min
Rated Pressure: 0.52Mpa
