K-COB LED LIGHT SOURCE XY-L28+38 SERIES

Short Description:

Small light-emitting size(LES), spotlighting, easy optical design;

Good heat dissipation: patented “dual heatsinking channel” structure, guarantee the thermal performance.

High lumen intensity, LM80 approved;

CCT, CRI, If&Vf is customizable as demand;

Suitable for high bay, street light, and retrofit kit., etc.


Product Detail

Product Tags

Specification

Item No.

Rated Power(W)

Forward Voltage Vf(V)

Rated Currency If(mA)

Max Input currency(mA)

CRI(Ra)

CCT(K)

Efficacy Im/w

Based on 70ra

XY-L2805

50

49

1020

2600

70/80/90

2000-6500

165lm/w

XY-L2810

100

49

2000

2600

70/80/90

2000-6500

160lm/w

XY-L2815

150

49

3050

3150

70/80/90

2000-6500

150lm/w

XY-L3815

150

59

2400

2550

70/80/90

2000-6500

165lm/w

XY-L3820

200

59

3150

3250

70/80/90

2000-6500

160lm/w

XY-L3830

300

105

2700

2850

70/80/90

2000-6500

150lm/w

 DIMENSIONS DRAWING

28mm-KCOB-size

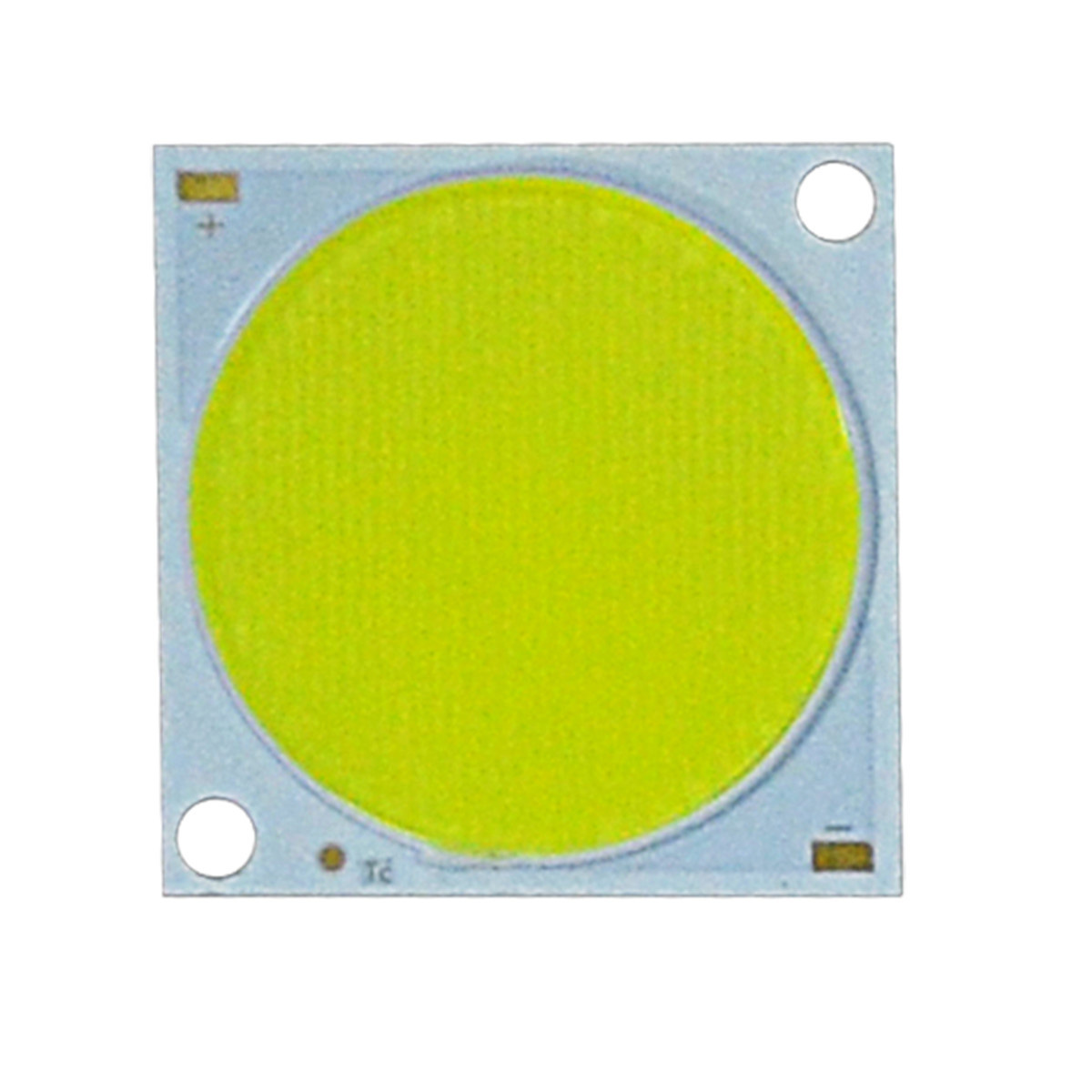

38mm-KCOB-size

*Size & Circuit is customizable based on the requirement
