K-COB Phosphor Ceramic Led Light Source 300W-400W XY-L47 SERIES

Short Description:

Small light-emitting size(LES), high light density, easy optical design;

Good heat dissipation: patented “dual heatsinking channel” structure, guarantee the thermal performance.

High lumen intensity, LM80 approved;

Good resistance to force impact, temperature, humidity and PH change ;

Suitable for high mast light, sports light and other long distance lighting fixture;


Product Detail

Product Tags

Specification

Item No.

Rated Power(W) Forward Voltage Vf(V) Rated Currency IF(mA) Max Input currency(mA) CRI(Ra) Color Temperature(K) Efficiency Im/wBased on 70ra

XY-L4730

300

105

2700

2850

70/80/90

2000-6500

165lm/w

XY-L4740

400

105

3600

3800

70/80/90

2000-6500

160lm/w

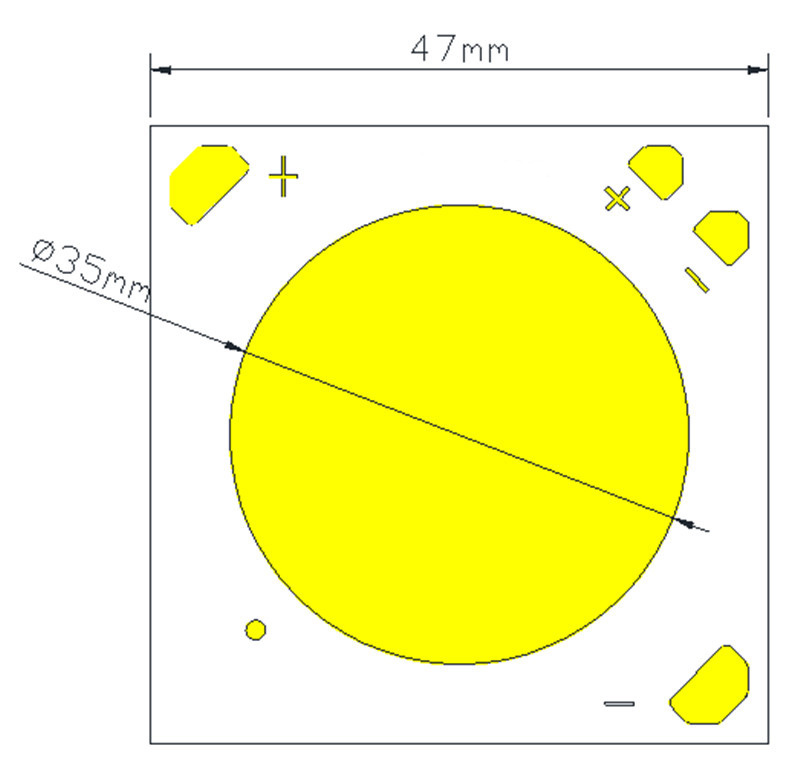

 DIMENSIONS DRAWING

47mm KCOB size

*Size & Circuit is customizable based on the requirement
