K-COB Phosphor Ceramic Led Light Source 400W-700W XY-L56 SERIES

Short Description:

Small light-emitting size(LES), high light density, easy optical design;

Good heat dissipation: patented “dual heatsinking channel” structure, guarantee the thermal performance.

High lumen intensity, LM80 approved;

Good resistance to force impact, temperature, humidity and PH change ;

Suitable for high mast light, sports light and other long distance lighting fixture;


Product Detail

Product Tags

Specification

Item No.

Rated Power(W)

Forward Voltage Vf(V)

Rated Currency IF(mA)

Max Input currency(mA)

CRI(Ra)

Color Temperature(K)

Efficiency Im/w

Based on 70ra

XY-L5640

400

124

3000

3150

70/80/90

2000-6500

165lm/w

XY-L5650

500

124

3700

4050

70/80/90

2000-6500

160lm/w

XY-L5660

600

124

4300

4800

70/80/90

2000-6500

155lm/w

XY-L5670

700

124

5300

5500

70/80/90

2000-6500

150lm/w

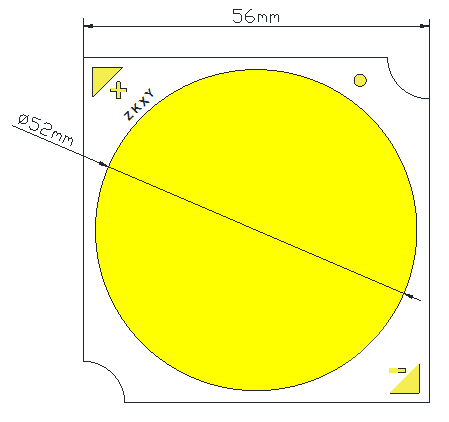

 DIMENSIONS DRAWING

56mm KCOB size

*Size & Circuit is customizable based on the requirement
