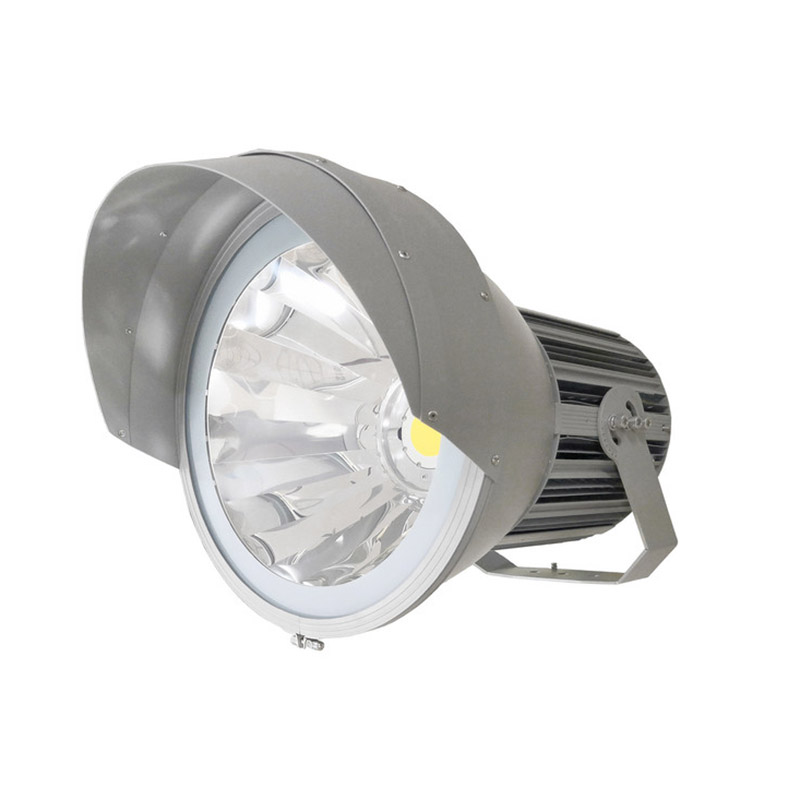

K-COB SPORTS FIELD LIGHTING SPLC(BASIC SERIES) 600-1200W
PRODUCT FEATURES
● Patented Phosphor Ceramic Light Source
Exclusive single Phosphor ceramic light soure of 1200w, 80,000 hrs lifespan.LM80 approved, and invetion patented in USA.
● Metal Halid Outlook
Made of 6063 aluminum, light weight and rust proof, private molding. Light weight (＜14kgs）
PHOTOELECTRIC PARAMETER
| Item No. | Power | Input Voltage | CCT | CRI | Lumen | Efficacy | Beam Angle |
| SPLC600 | 600W | AC180 ~ 528V | 2200~ 6500K | 70~90ra | 72000lm | 120~130lm/w | 15°,22°,25° |
| SPLC1000 | 1000W | AC180 ~ 528V | 2200~ 6500K | 70~90ra | 120000lm | 120~130lm/w | 15°,22°,25° |
| SPLC1200 | 1200W | AC180 ~ 528V | 2200~ 6500K | 70~90ra | 144000lm | 120~130lm/w | 15°,22°,25° |
Comparison between KCOB stadium light&other SMD sports light
Other sports lighting fixture
VS
K-CoB Single CoB lighting system
SMD array:
LEDs are separated due to the difficulties of heat sinking and forced to through the inefficient plastic lens.
Lens:
Warp and crack after long-time working.
Glare&dark spot is inevitable in actual case.

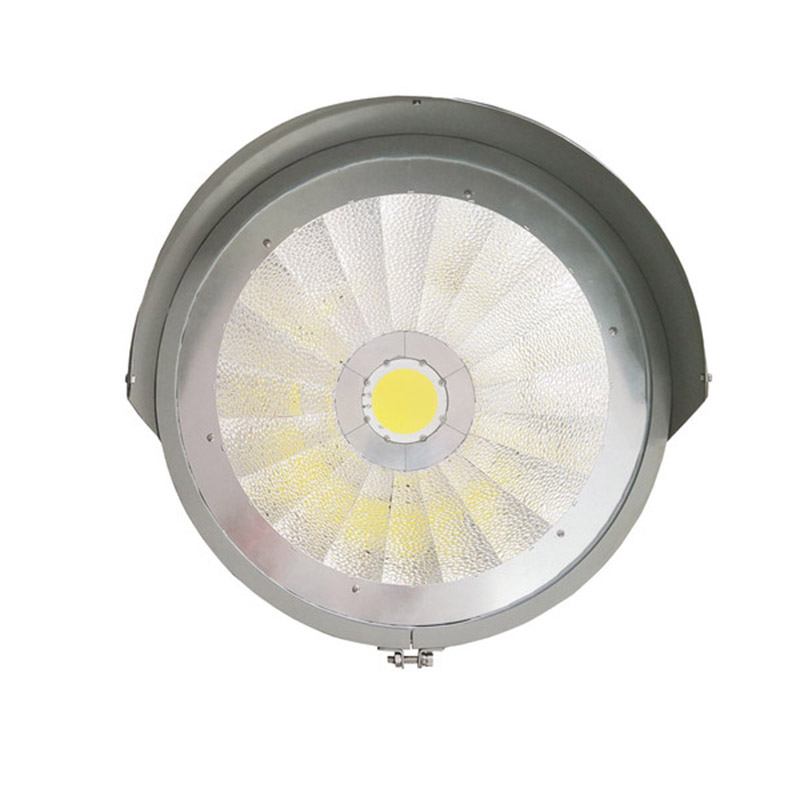

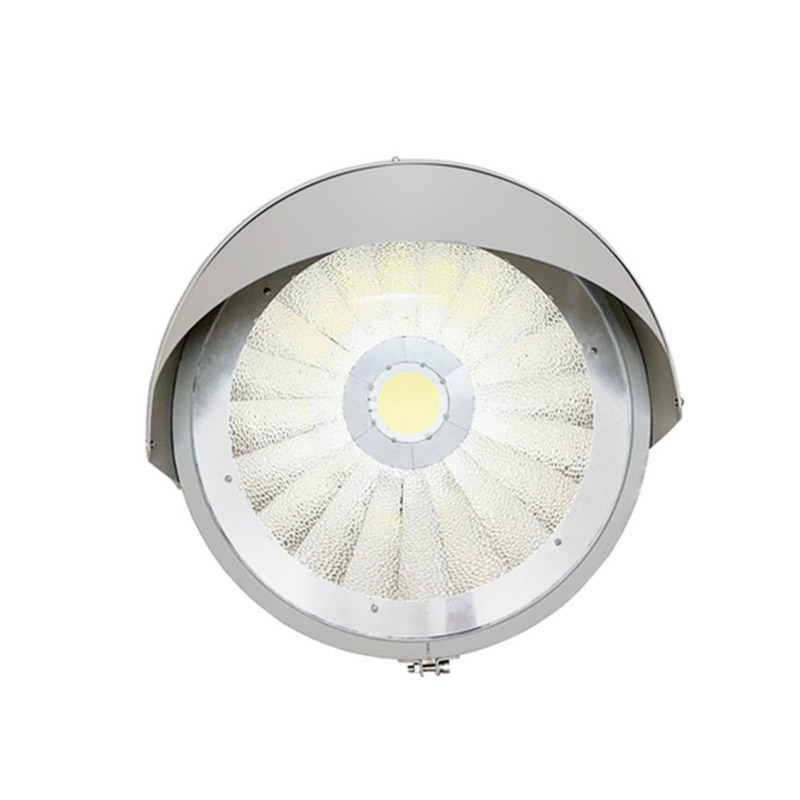

Real single light source:
Exclusive phosphor ceramic COB with high light density LES φ 75mm for 1200w.
LM80 certificated.

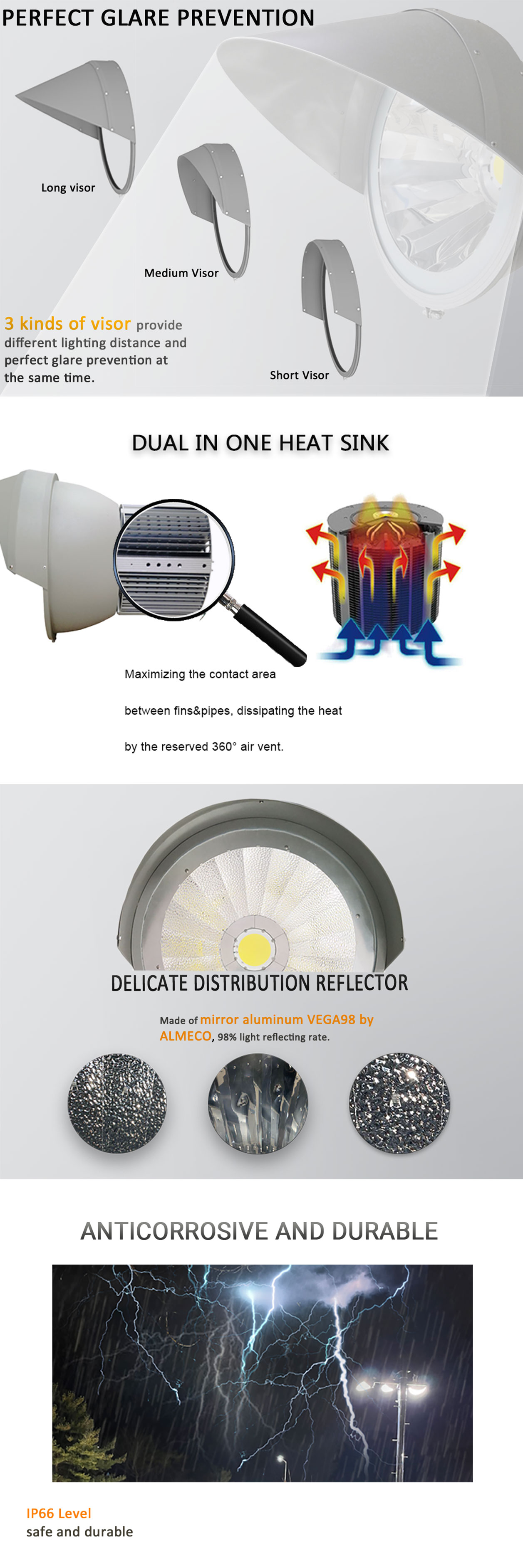

Proven reflector technique:
High efficient reflector by ALMECO,
No glare and scatter outside of projected lighting area.
