KLT 10000V LED Ⅱ

Short Description:


Product Detail

Product Tags

 Features

Brighter Diesel Light Towers for Public safety provide an independent light source for public events, emergency response and more. The high-efficiency lights top telescoping tower for travel and storage while rising to 30 feet when deployed. Choose four LED light fixtures, which can be aimed independently without the use of tools. The lights operate at any height and the mast can rotate 360 degrees, even while extended Portable light towers are a proven tool for event, fire and rescue and more.

Product Overview

●  Easy to tow and set up

●  Reliable proven design

●  Four 500W LED lamp

●  Lights operate at any height

●  Tower rotates nearly 360 degrees, even while lights are raised

Features

●  High-efficiency light fixtures keep maximum light on the job longer, increasing safety

●  Durable fixtures ensure longevity and dependability

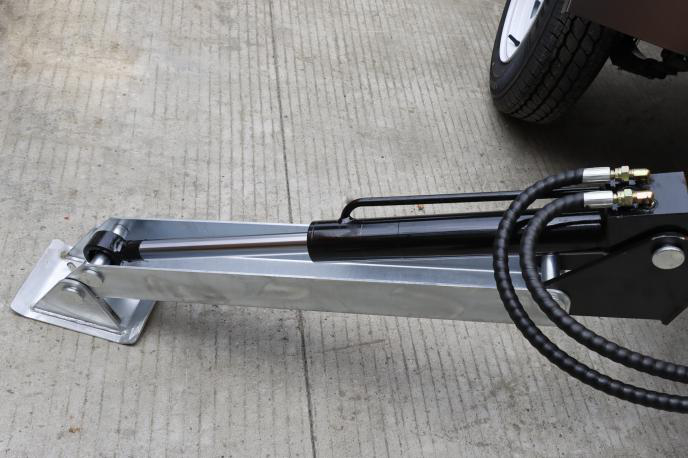

●  One outriggers and four leveling hydraulic jacks provide stability

●  7.5KW 50Hz generator

●  Fuel capacity of 100 litre provides extended run times of up to 60 hours

●  Rotating tower reduces the need to frequently move the light tower trailer

●  Lockable, weather-resistant, steel cabinet protects engine and electrical components from the elements

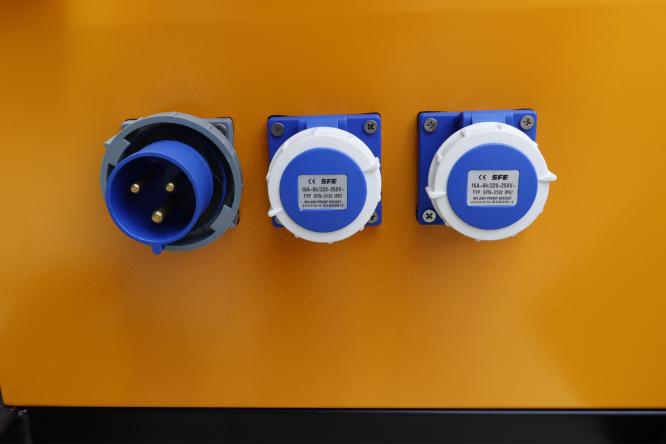

●  Control panel features hour meter, 120-Volt GFCI receptacle for powering external equipment, and circuit breakers for on/off functionality and protection

●  Automatic shutdown system protects engine from damage due to low oil pressure and high coolant temperature

 Brief Specification

Mobile Light Tower

Brighter

KLT-10000V LEDⅡ

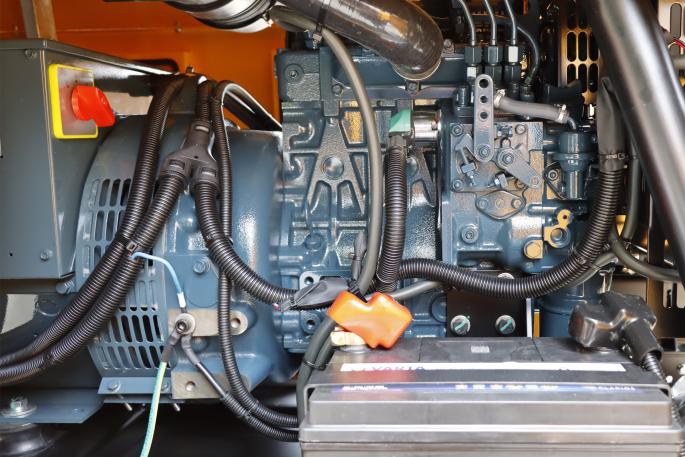

Engine Kubota  D1105 Illuminating Field 250000  Lumen
Lighting Type LED Lamp Lamps Number 4*500W
Mast Lifting Hydraulic Wind Stability 80 Km/h
Engine Speed 1500rpm Rotation 360 degrees
Cooling System Water Mast Maximum Height 10M
Continuous power 7.5KW Fuel Diesel
Generator SMF-160C Dimensions 2418*1508*2449MM(L*W*H)
Voltage 220V Weight 1200 KG

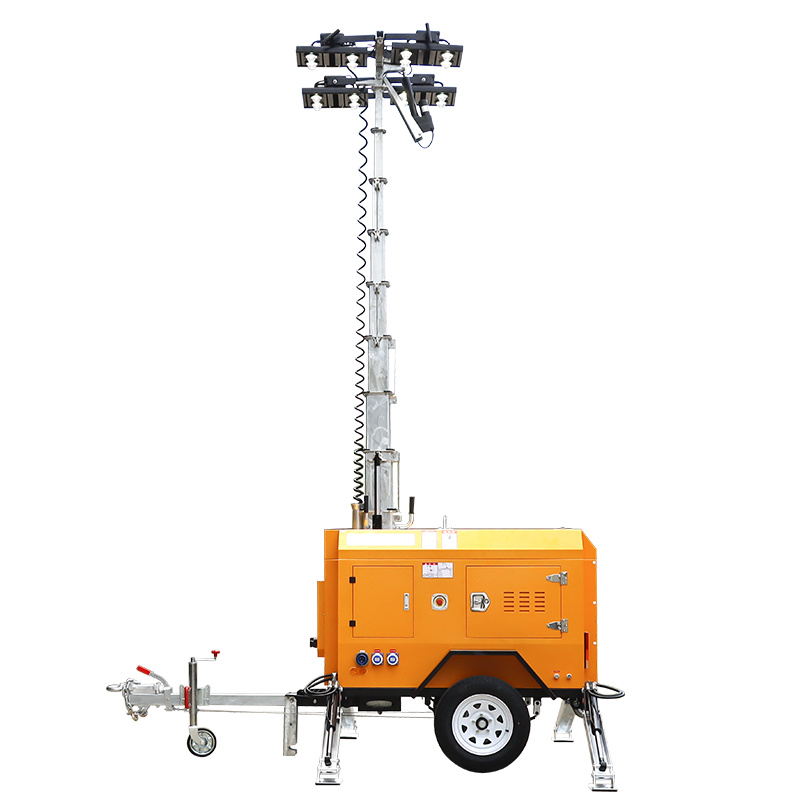

sadadad (1)

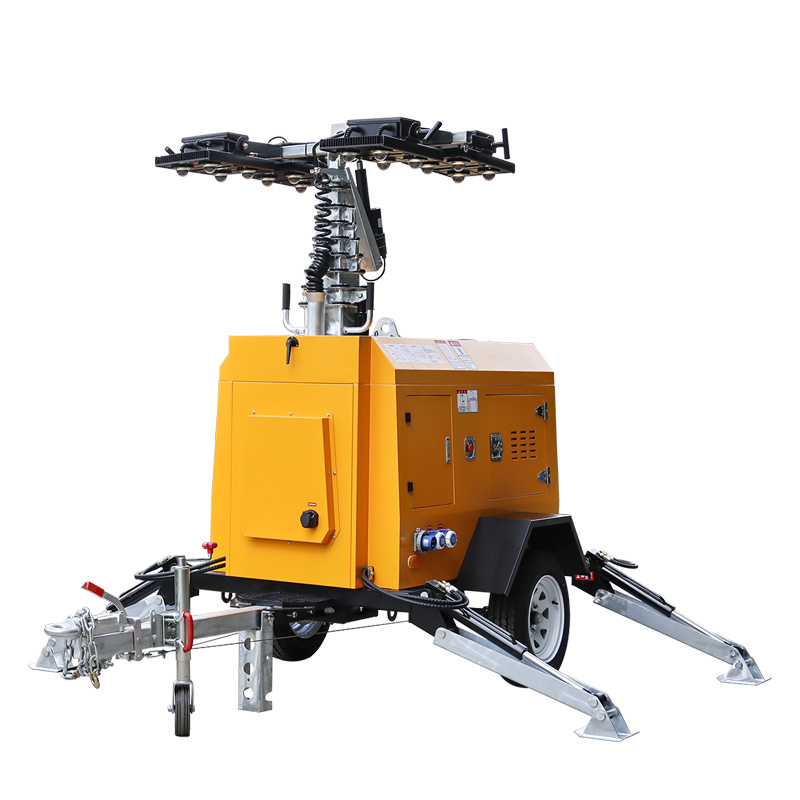

sadadad (3)

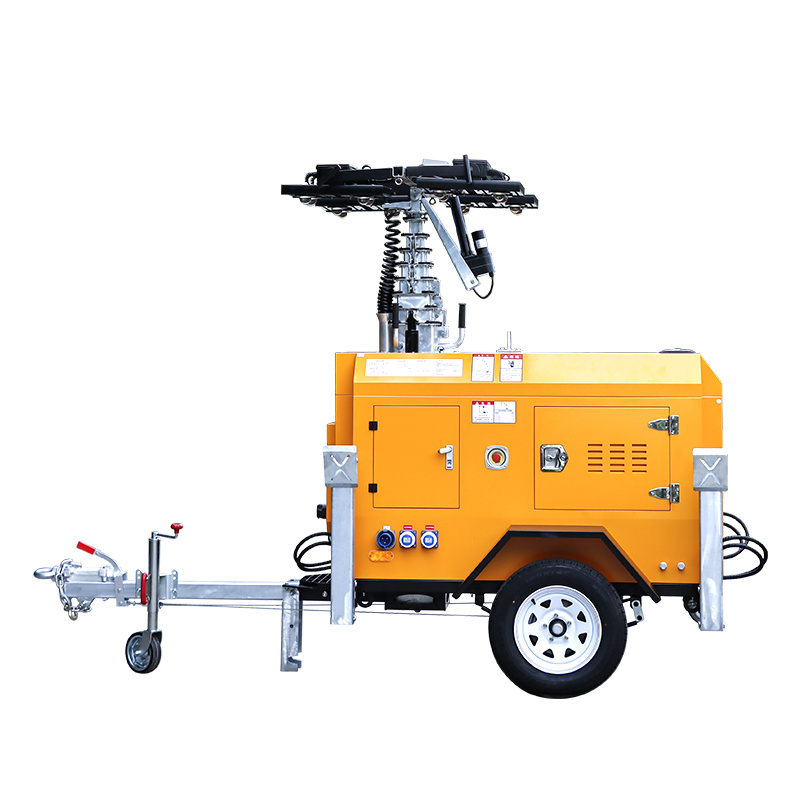

sadadad (2)

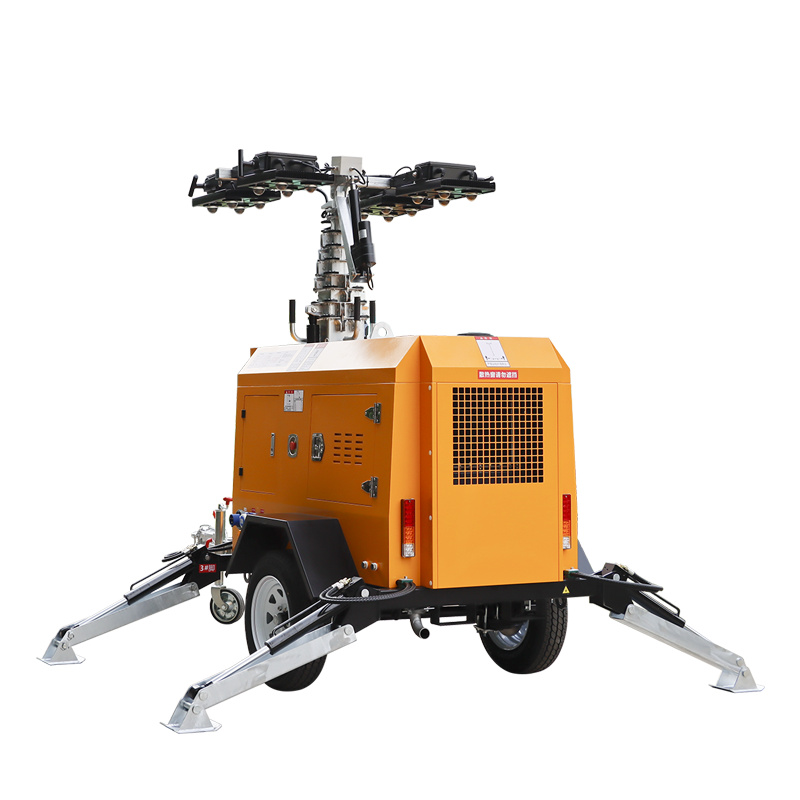

sadadad (4)

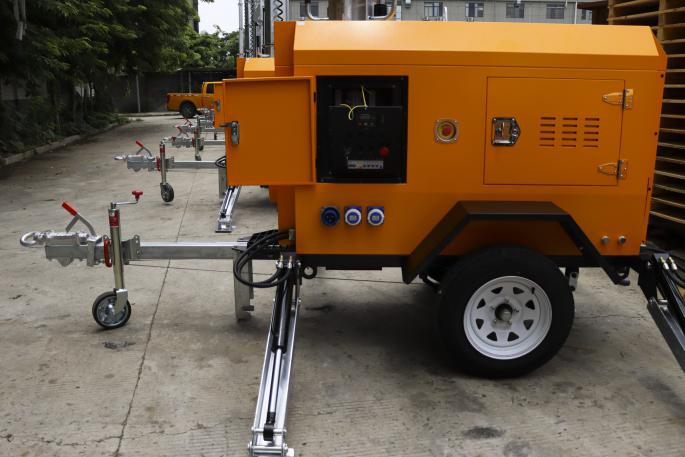

KLT-10000V LED Ⅱ01

KLT-10000V LED Ⅱ02

KLT-10000V LED Ⅱ03

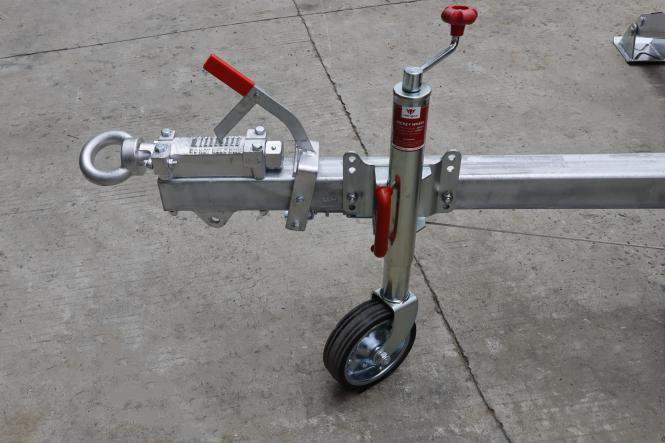

KLT-10000V LED Ⅱ04

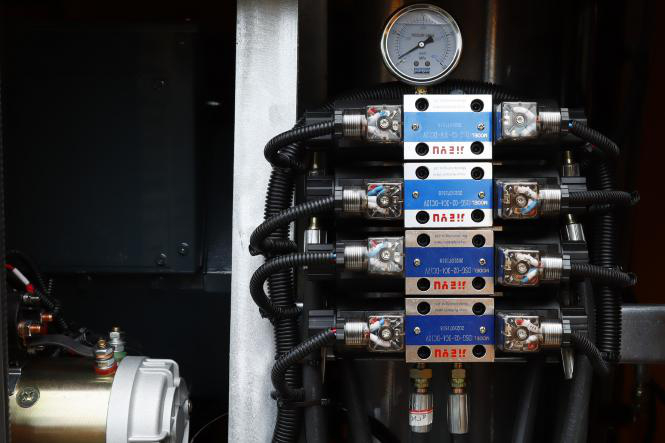

KLT-10000V LED Ⅱ05

KLT-10000V LED Ⅱ06
