KLT-10000V Surveillance

Short Description:

Surveillance Light Tower supplied by Fuzhou Brighter for Public safety provide an independent light source for public events, emergency response and more. The high-efficiency lights top telescoping tower for travel and storage while rising to 30 feet when deployed. Choose four LED light fixtures, which can be aimed independently without the use of tools. The lights operate at any height and the mast can rotate 360 degrees, even while extended Portable light towers are a proven tool for event, fire and rescue and more.


Product Detail

Product Tags

KLT-10000V Surveillance

LED lamp/Hydraulic mast/Hydraulic stabilizer/Mast 10M high

Surveillance Light Tower supplied by Fuzhou Brighter for Public safety provide an independent light source for public events, emergency response and more. The high-efficiency lights top telescoping tower for travel and storage while rising to 30 feet when deployed. Choose four LED light fixtures, which can be aimed independently without the use of tools. The lights operate at any height and the mast can rotate 360 degrees, even while extended Portable light towers are a proven tool for event, fire and rescue and more.

Product Overview

●  Easy to tow and set up

●  Reliable proven design

●  Four 500W LED lamp

●  Lights operate at any height

●  Tower rotates nearly 360 degrees, even while lights are raised

Features

●  High-efficiency light fixtures keep maximum light on the job longer, increasing safety

●  Durable fixtures ensure longevity and dependability

●  One outriggers and four leveling hydraulic jacks provide stability

●  7.5KW 50Hz generator

●  Fuel capacity of 100 litre provides extended run times of up to 60 hours

●  Rotating tower reduces the need to frequently move the light tower trailer

●  Lockable, weather-resistant, steel cabinet protects engine and electrical components from the elements

●  Automatic shutdown system protects engine from damage due to low oil pressure and high coolant temperature

●  Surveillance light tower are ideal for deployment at sporting events, fairs, and demonstrations. Whether planned or unplanned, events where large crowds of people gather present challenges to public safety officials. Whether the event is to last hours or days, the ease and quickness of deployment of surveillance get police and event management the information they need in a timely manner. Just the appearance of our trailer products provides a crime deterrent, making these public gatherings even safer.

●  Surveillance light tower include a variety of options that are well-suited for law enforcement applications. Surveillance light towers with HD cameras are ideal for temporary deployment at construction or incident sites.

●  Most temporary surveillance application requirements can be met with our standard trailer platforms. However, if you have challenging requirements, we can customize our standard platforms to meet your needs

Brief specifications

Mobile Light Tower

Light Tower

KLT-10000V Surveillance

Engine Kubota  D1105 Illuminating Field 250000  Lumen
Lighting Type LED Lamp Lamps Number 4*500W
Mast Lifting Hydraulic Wind Stability 80 Km/h
Engine Speed 1500rpm Rotation 360 degrees
Cooling System Water Mast Maximum Height 10M
Continuous power 7.5KW Fuel Diesel
Generator SMF-160C Dimensions 2418*1508*2449MM(L*W*H)
Voltage 220V Weight 1200 KG

Camera

TL-IPC5220E-DC

The Basic
Image Sensor Progressive Scan CMOS Min.Illumination Color:0.002Lux@F1.3 ; 0 Lux with IR
Day & Night IR cut filter DNR 3D DNR
Gain Control Auto Image Auto white balance
Video
Smart Encoding H.265+ Video Compression H.264
Video Bit Rate 64kbps-8Mbps Max Resolution 1920×1080
Lens
Focus Length 20×Optical Focus Auto,Manual
Shutter Speed 1/25s to 1/100000s, Auto,Manual Aperture Adjustable
Interface
Communication Interface RJ45;Self-adaptive;10M/100M Ethernet Interface
Audio Interface An Input Interface Power Interface One
Network
API ONVIF Intelligent alarm Motion Detection, Video Tampering Alarm
Protocols TCP/IP,ICMP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPOE,NTP,UPNP
General
Operating condition -30°to +60° Humidity 90% or Less
Protection IP66,Lightning Protection Weight Approx. 2.07Kg
Dimension 195mm*195mm*298mm Power 12VDC

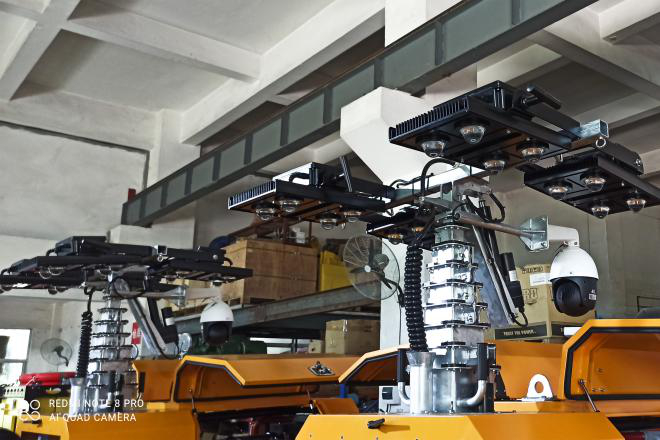

KLT-10000V Surveillance01

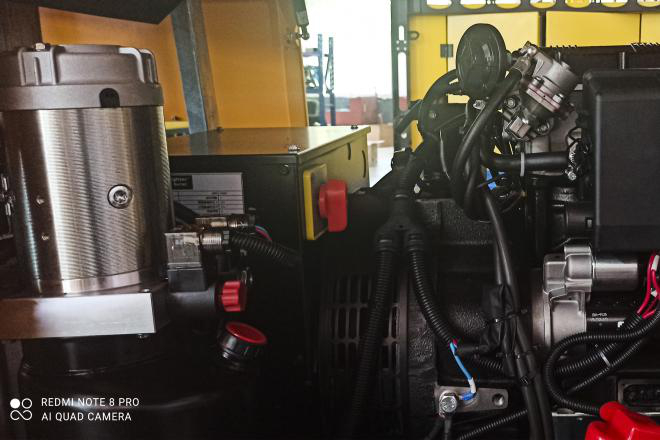

KLT-10000V Surveillance02

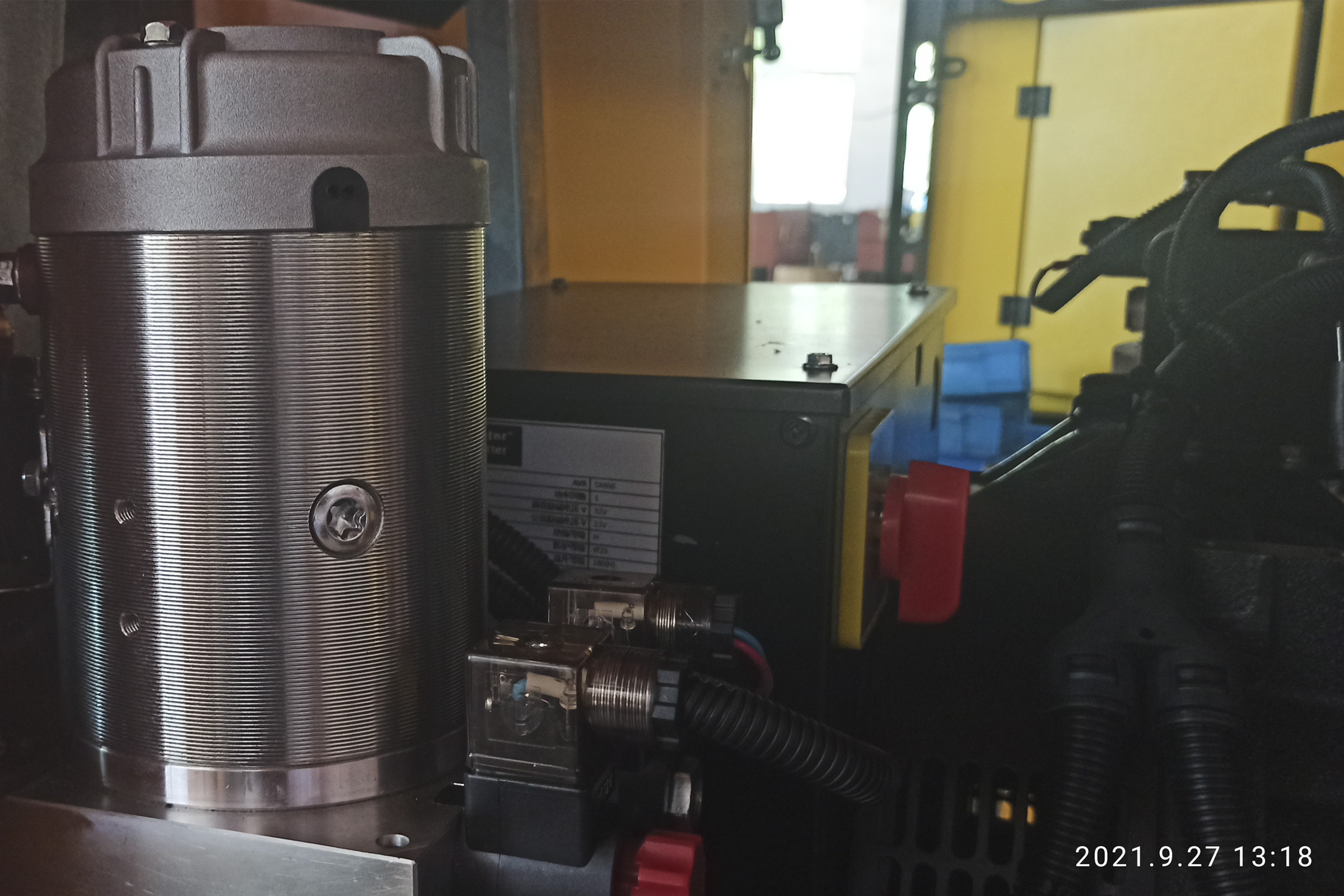

KLT-10000V Surveillance03

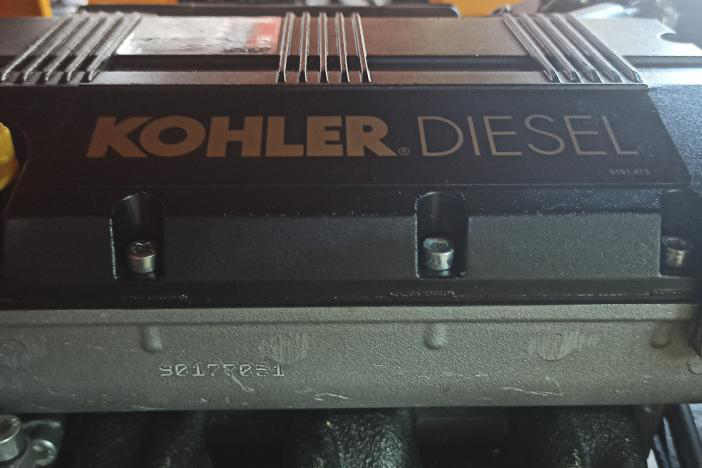

KLT-10000V Surveillance04

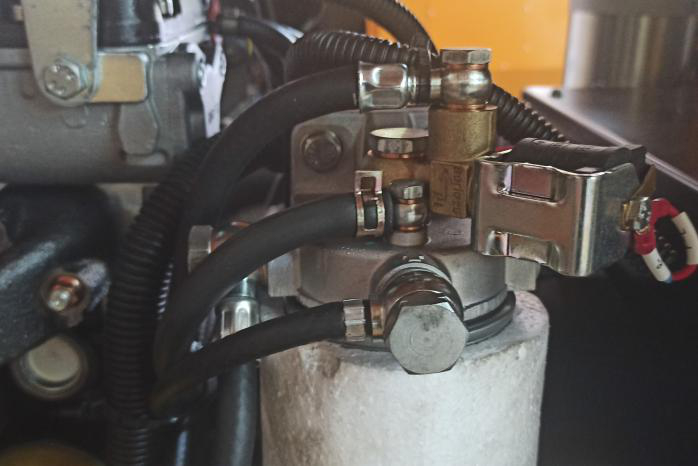

KLT-10000V Surveillance05

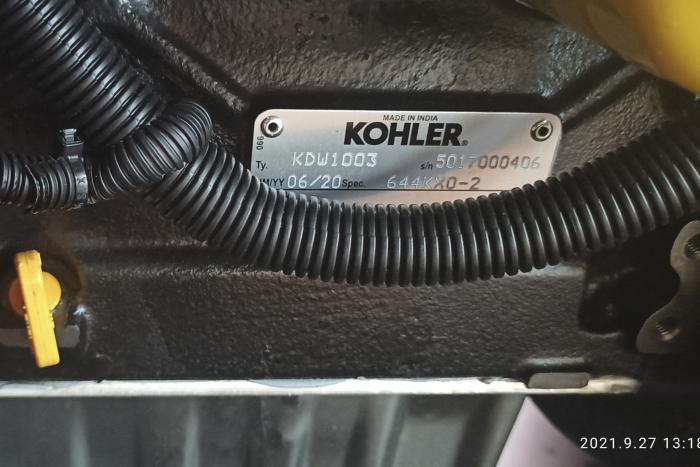

KLT-10000V Surveillance06
