● Easy to tow and set up
● Reliable proven design
● Four 500W LED lamp
● Lights operate at any height
● Tower rotates nearly 360 degrees, even while lights are raised
● High-efficiency light fixtures keep maximum light on the job longer, increasing safety
● Durable fixtures ensure longevity and dependability
● One outriggers and four leveling hydraulic jacks provide stability
● 6-8 KW 50Hz generator
● Fuel capacity of 100 litre provides extended run times of up to 60 hours
● Rotating tower reduces the need to frequently move the light tower trailer
● Lockable, weather-resistant, steel cabinet protects engine and electrical components from the elements
● Control panel features hour meter, 120-Volt GFCI receptacle for powering external equipment, and circuit breakers for on/off functionality and protection
● Automatic shutdown system protects engine from damage due to low oil pressure and high coolant temperature

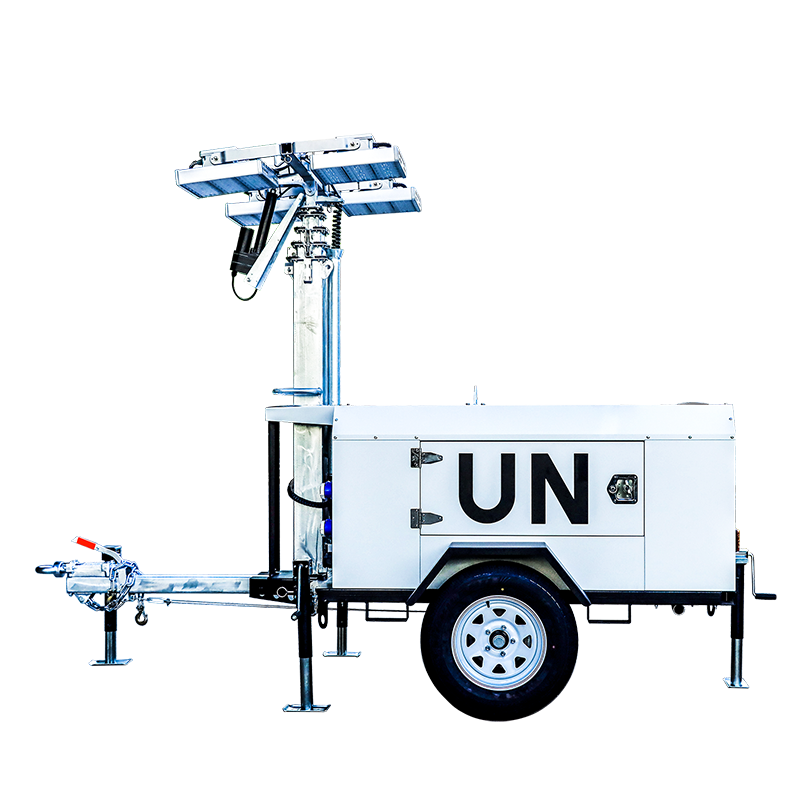

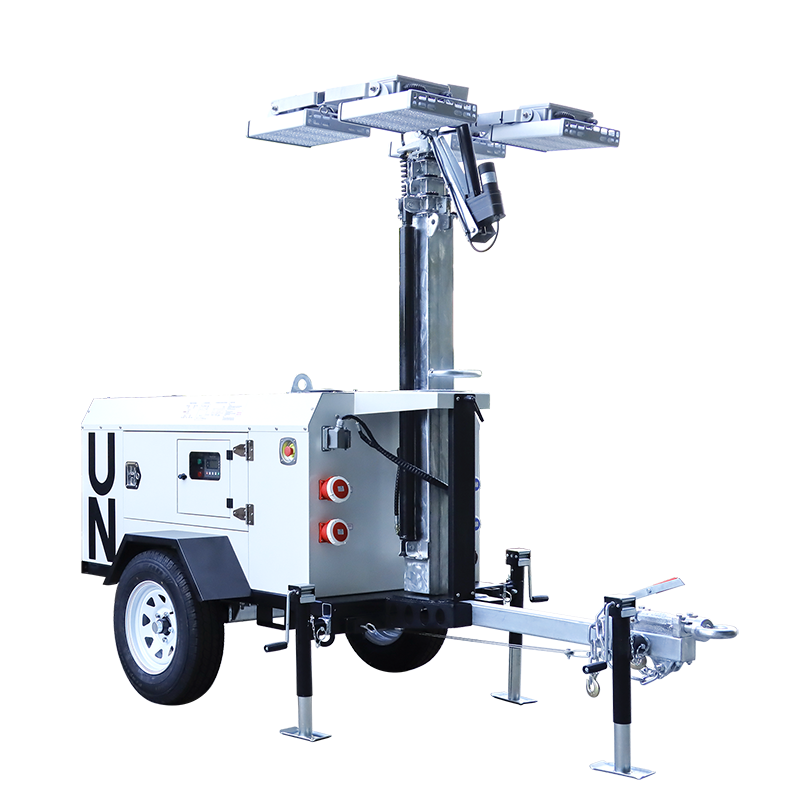

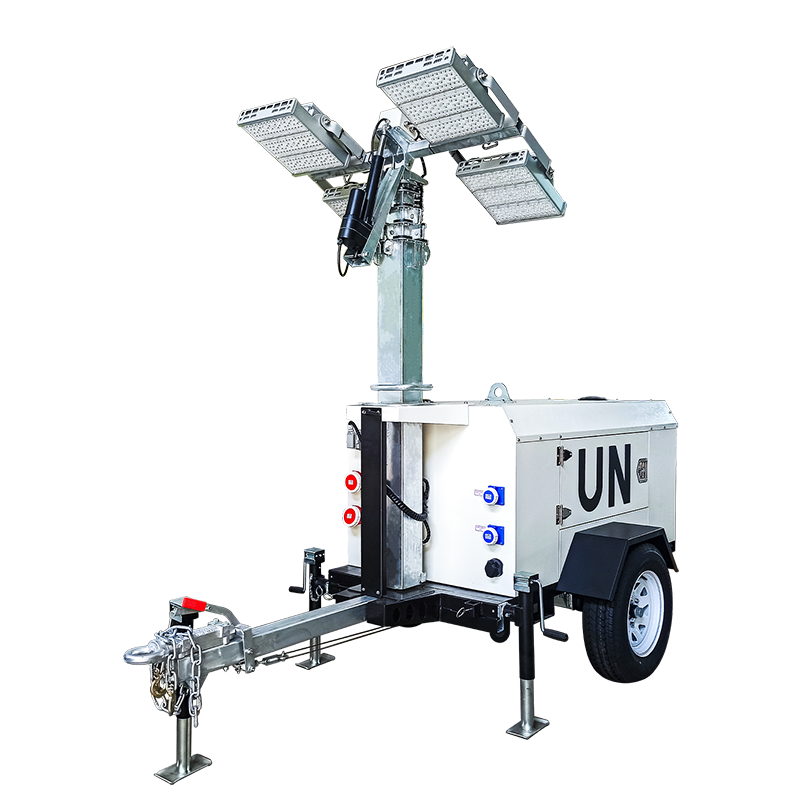

Mobile Light Tower |
|||
Brighter |
KLT-8000DV LED |
||
Engine |
Kubota D1105/Kohler KWD 1003/Yanmar3TN76 |
Illuminating Field |
182000-260000 Lumen |
Lighting Type |
LED Lamp |
Lamps Number |
4*350/4*500 W |
Mast Lifting |
Hydraulic |
Wind Stability |
80 Km/h |
Engine Speed |
1500/1800 rpm |
Rotation |
360 degrees |
Cooling System |
Water |
Mast Maximum Height |
10M |
Continuous power |
7.5KW |
Fuel |
Diesel |
Generator |
SMU 132C |
Dimensions |
2418*1508*2449MM(L*W*H) |
Voltage |
220V |
Weight |
1200 KG |
Since its establishment, our factory has been developing first world class products with adhering the principle
of quality first. Our products have gained excellent reputation in the industry and valuabletrusty among new and old customers..
