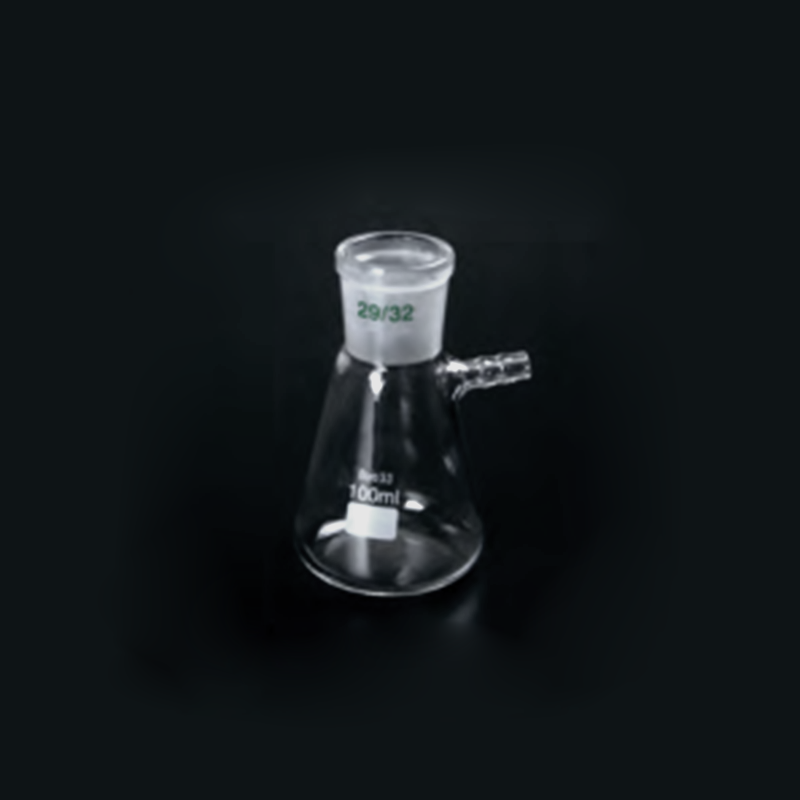

Lab clear Filtering Flask with side tubulature

Short Description:

Product Name: Filtering Flask with side tubulature

Product Name: Filtering Flask with standard mouth

Characteristic:

1. Standard Ground Mouth

Material: Boro 3.3 glass

Color: Clear

OEM is available

Payment Term: T/T,L/C,Western Union,Palpay

Samples: Offered within 5 days generally

Loading Port: Qingdao /Shanghai port or up to customer

Delivery Time:15-30 days up to customer’s quantity

Send email to us

Product Detail

Product Tags

Laboratory Glassware

Filtering Flask

About Filtering Flask

Product Details

Approx Scale

The filter flask in the situation of room temperature or heating, it’s easy to make scale fuzzy and incovenient to experiment. But the APPROX scale is more accurate and durable,not easy scratches

Upper Tubulature

The short tube effectively act as an adapter over which the end of a thick-walled flexible hose (tubing) can be fitted to form a connection to the flask. Can be connected with a hose to source of vacuum such as an aspirator, vacuum pump.

Good Physical Strength

The thick wall of the filter flask provides it the good strength to withstand the pressure difference while holding a vacuum inside.

Label

Convenient, practical, don’t need labels

Product Specification

The dimensions are all measured by hand, so there may be some errors. Please contact us for the specific freight.

Lab clear Filtering Flask with side tubulature

1432	Filtering Flask with side tubulature
Capacity(ml)	O.D.of side tube(mm)	Height(mm)
125	9	120
250	9	160
500	9	210
1000	9	245
2500	11	290
5000	11	370
10000	13	450

5010	Filtering Flask Standard ground mouth
Capacity(ml)	Ground mouth	O.D.of bottle(mm)	Height(mm)
10	10/19	32	60
10	14/23	32	60
25	10/19	42	70
25	14/23	42	70
50	14/23	51	85
50	19/26	51	85
100	19/26	64	105
100	24/29	64	105
250	24/29	85	135
250	29/32	85	135
500	24/29	105	170
500	29/32	105	170
1000	24/29	131	210
1000	29/32	131	210

Product Parameters

BOROSILICATE GLASS
BORO3.3
SiO2 Content	>80%
Strain Point	520°C
Annealing Point	560°C
Softening Point	820°C
Refractive Index	1.47
Light Transmission(2mm)	0.92
Elastic Modulus	67KNmm-2
Tensile Strength	40-120Nmm-2
Glass stress Optical Coefficient	3.8*10-6mm2/N
Processing Temperature(104dpas)	1220°C
Linear Coefficient of Expansion(20-300°C)	3.3*10-6K-1
Density(20°C)	2.23gcm-1
Specific Heat	0.9jg-1K-1
Thermal Conductivity	1.2Wm-1K-1
Hydrolytic Resistance(ISO 719)	Grade 1
Acid Resistance(ISO 185)	Grade 1
Alkali Resistance(ISO 695)	Grade 2
Thermal Shock Resistance Rod6*30mm	300°C
