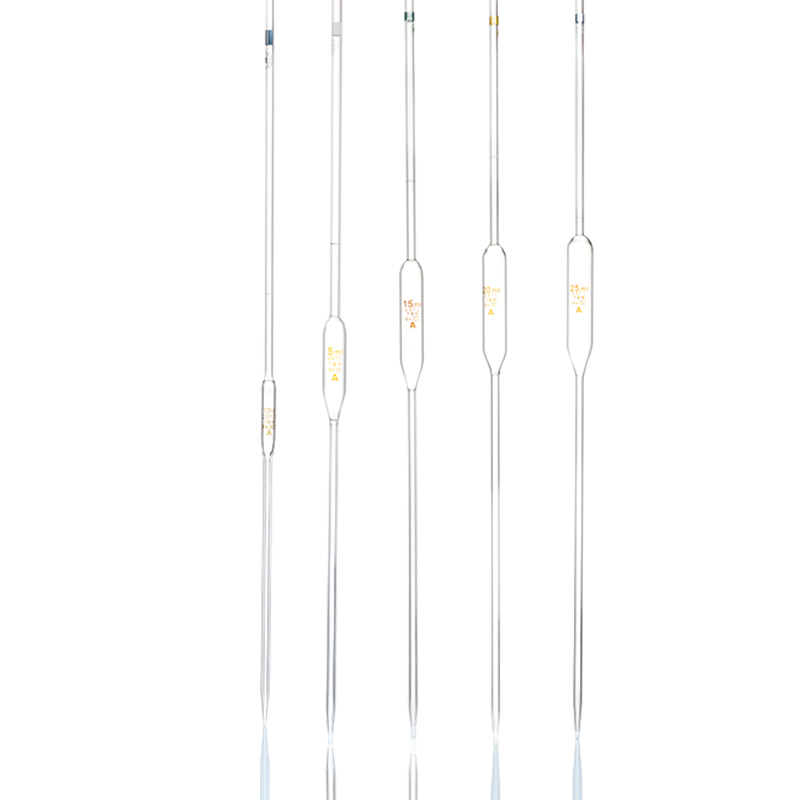

Volumetric Pipette is a bulge in the middle, and the upper and lower ends are connected with slender glass tubes, and the upper tube is engraved with a circular line of nominal capacity. Because the lower arm is thin and the cross-sectional area is small, the capacity tolerance can be reduced; the lower tube is slender and is drawn into a conical discharge nozzle, which is easy to reach into the measuring bottle and other small-mouth containers to absorb the solution. The middle expansion is to increase the storage liquid and shorten the length of the pipette, which is convenient for use.
1633 |
Volumetric Pipette with one mark |
||
Capacity(ml) |
Capacity tolerance(±ml) |
Flow rate(s) |
Length(mm) |
1 |
0.007 |
39641 |
330 |
2 |
0.01 |
39641 |
340 |
3 |
0.015 |
15-25 |
360 |
5 |
0.015 |
15-25 |
400 |
10 |
0.02 |
20-30 |
450 |
15 |
0.025 |
20-30 |
520 |
20 |
0.03 |
25-35 |
560 |
25 |
0.03 |
25-35 |
570 |
50 |
0.05 |
30-40 |
600 |
100 |
0.08 |
35-45 |
640 |
Advantages:
1. Various specifications
2. Preferential price
3. OEM is available
4. High quality
Glass Volumetric Pipette With One Mark
Volumetric Pipette
Soda-lime glass has the characteristics of thermal stability, mechanical strength and hardness.
The Tip
Machine made tip, more thick, no glitch, relatively hard and not friable
Calibration
Calibrated at 20 °C by METTLER TOL EDO brand measuring instrument
The Colour
Colour code made it easy to identify the volume difference.

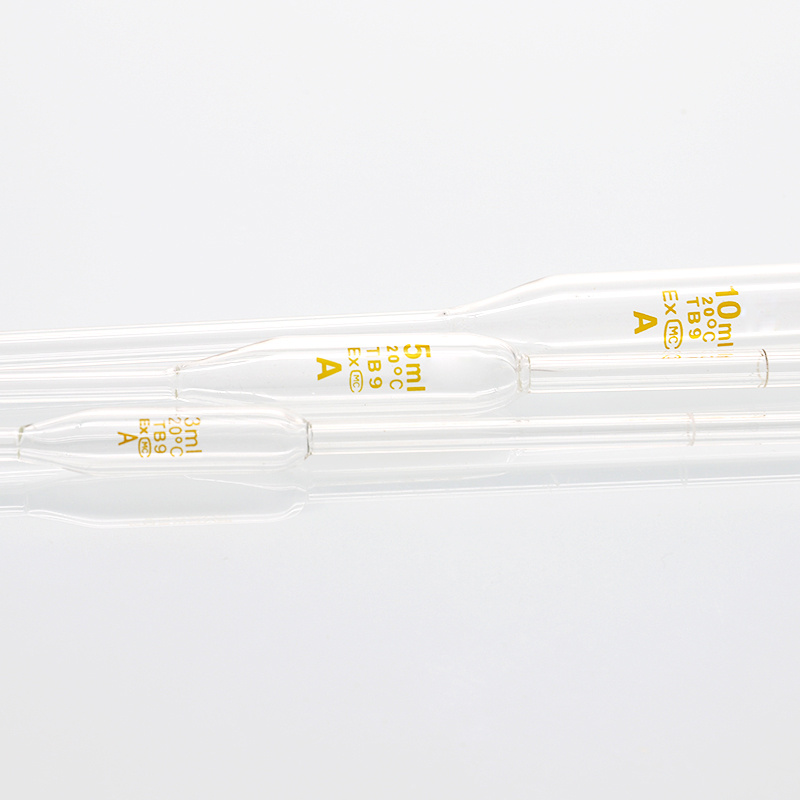

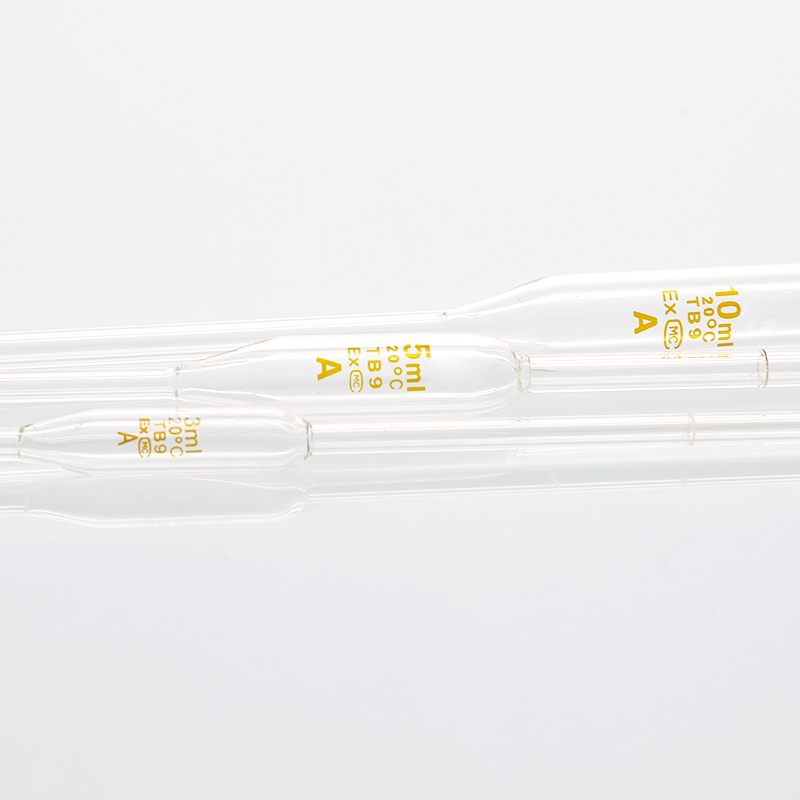

The Color Of The Scale
Marking are made in permanent amber stain diffused into surface of the glass for better visibility and durable (Blue graduation can be supplied on request)
BOROSILICATE GLASS |
|
BORO3.3 |
|
SiO2 Content | >80% |
Strain Point | 520°C |
Annealing Point | 560°C |
Softening Point | 820°C |
Refractive Index | 1.47 |
Light Transmission(2mm) | 0.92 |
Elastic Modulus | 67KNmm-2 |
Tensile Strength | 40-120Nmm-2 |
Glass stress Optical Coefficient | 3.8*10-6mm2/N |
Processing Temperature(104dpas) | 1220°C |
Linear Coefficient of Expansion(20-300°C) | 3.3*10-6K-1 |
Density(20°C) | 2.23gcm-1 |
Specific Heat | 0.9jg-1K-1 |
Thermal Conductivity | 1.2Wm-1K-1 |
Hydrolytic Resistance(ISO 719) | Grade 1 |
Acid Resistance(ISO 185) | Grade 1 |
Alkali Resistance(ISO 695) | Grade 2 |
Thermal Shock Resistance Rod6*30mm | 300°C |
