China Large Size 1200 mm Pipe Fittings Hydraulic Welding Machine One Year Warranty Manufacturer and Supplier

Large Size 1200 mm Pipe Fittings Hydraulic Welding Machine One Year Warranty

Short Description:

1. Butt Fusion Welding Machine

2. ZYR500 (315-500mm)

3. ZYR630(400-630mm)

4. ZYR800(630-800mm)

5. ZYR1000(800-1000mm)

6. ZYR1200(1000-1200mm)

Send email to us

Product Detail

Product Tags

Detail Information

Input Voltage:

Working Range:

Usage:

Materials:

Package Type:

Max Pressure:

380VAC	315-500/400-630/710-800/800-100/1000-1200mm
Large Size Pipe Welding	HDPE,PP,PB,PVDF
Packing In One Plywood Case. The Dimension(WDH):12010087cm N.W:250kg G.W:290kg	6MP

Product Description

1. The hydraulic system is made of imported control valve and seals. The oil seals are well controlled and have a long life.

2. The heating plate is made of imported DuPont Teflon coating and coated by the standard coating process of professional paint factory. The effect is good and the service life is long.

3. Temperature sensing system, accurate temperature control and long service life.

4. The milling cutter has a safety micro switch to prevent accidents.

5. Single clamp, accurate processing size, can effectively reduce the time of pipeline routing, improve work efficiency or welding efficiency.

6. Equipped with a crane for welding large pipe or pipe fittings

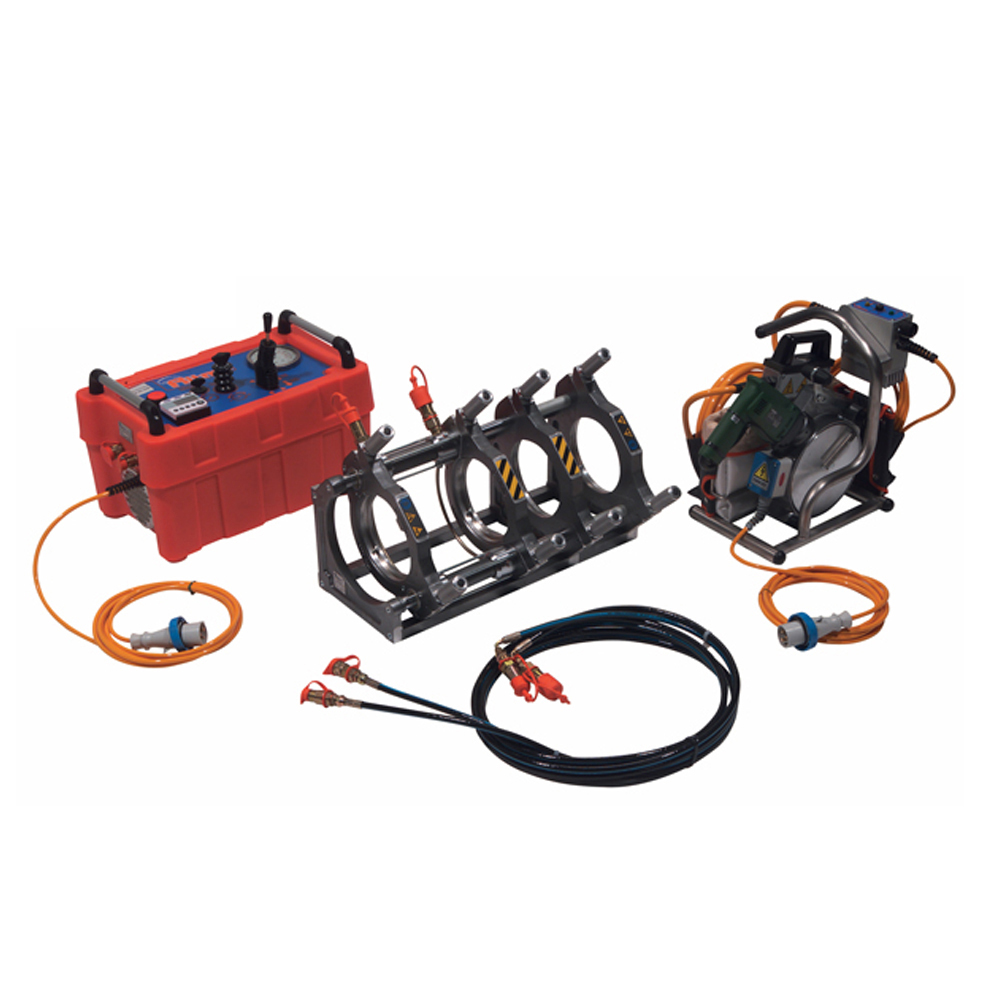

Standard composition:

1.Machine body

2.Milling cutter

3.Heating plate

4.Hydraulic control unit

5.Support

6.Multilayer stacking clamps

Specification

Model	ZYR-500	ZYR-630	ZYR-800	ZYR-1000	ZYR-1200
Working Range(mm)	315-500mm	400-630mm	710-800mm	800-1000mm	1000-1200mm
Rated voltage	380VAC- 50/60HZ
Weight	520kg	753kg	2600kg	2680kg	2780kg
Rated power	3550W	4950W	8850W
Max Pressure	6MP
Material	PE,PP,PB,PVDF
Hydraulic oil	46#
Rated power	9.5kw	12.95kw	18.2kw
