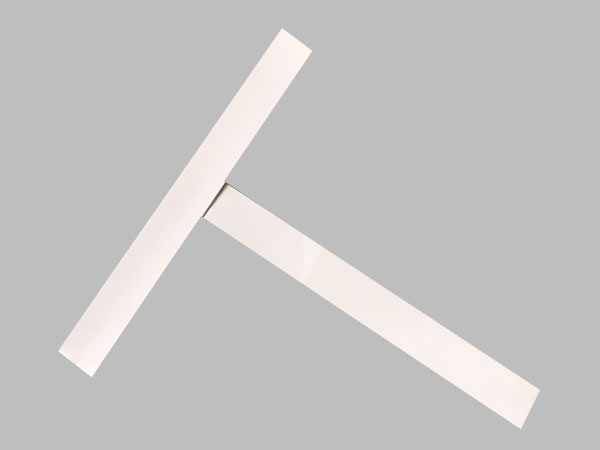

Narrow  flat ceiling grid
Simple and elegant shape, excellent shock resistance. Light weight, easy and quick installation.

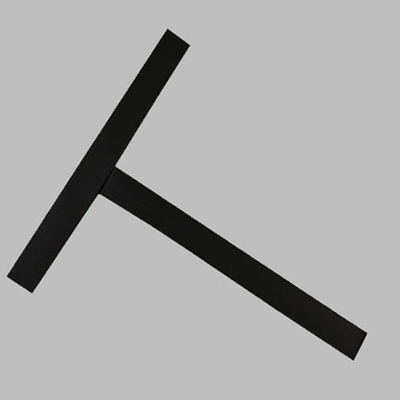

Groove-type ceiling grid
Groove shape is available in black and white, with strong three-dimensional effect.
Easy installation, firm system.

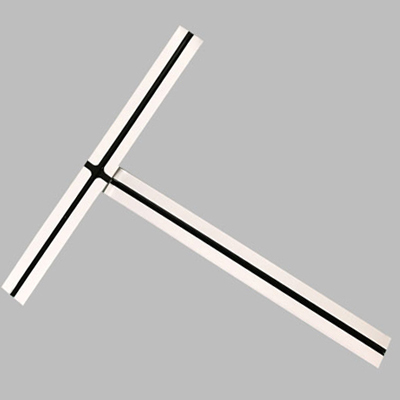

Exposed ceiling grid
Using double-sided color coated steel strip as raw material, soft color, clear lines, strong three-dimensional effect has high dimensional accuracy and close coordination. It can be used with metal ceilings and mineral wool sound-absorbing panels. It is a classic product for indoor ceilings in modern buildings.

Installation conditions

1. During structural construction, the joints of the cast-in-place concrete floor or precast concrete floor should be pre-embedded with φ6~φ10 reinforced concrete suspenders according to the requirements of the shot meter. When the shot meter is not required, the steel bar hanger shall be embedded according to the arrangement position of the large keel rod, the general spacing is 900~1200mm.

2. When the wall pillars of the suspended ceiling room are brickwork, they should be pre-embedded with anticorrosive wood bricks at the elevation of the ceiling along the walls and pillars. The distance between the walls is 900~1200mm, and each side of the pillars should be buried. More than two wooden bricks.

3. After installing the various pipelines and ventilation channels in the ceiling, determine the position of the light, the ventilation opening and various openings.

4. All kinds of materials are complete.

5. The wall and ground wet work projects should be completed before the ceiling cover panel is installed.

6. Set up the shelf of the ceiling construction operation platform.

7. Before the large-area construction of the lacquered skeleton ceiling, a sample room should be made. The curvature of the ceiling, the structure treatment of the light trough, the vent, the division and the fixing method, etc. should be tested and installed and approved before the large area construction.
