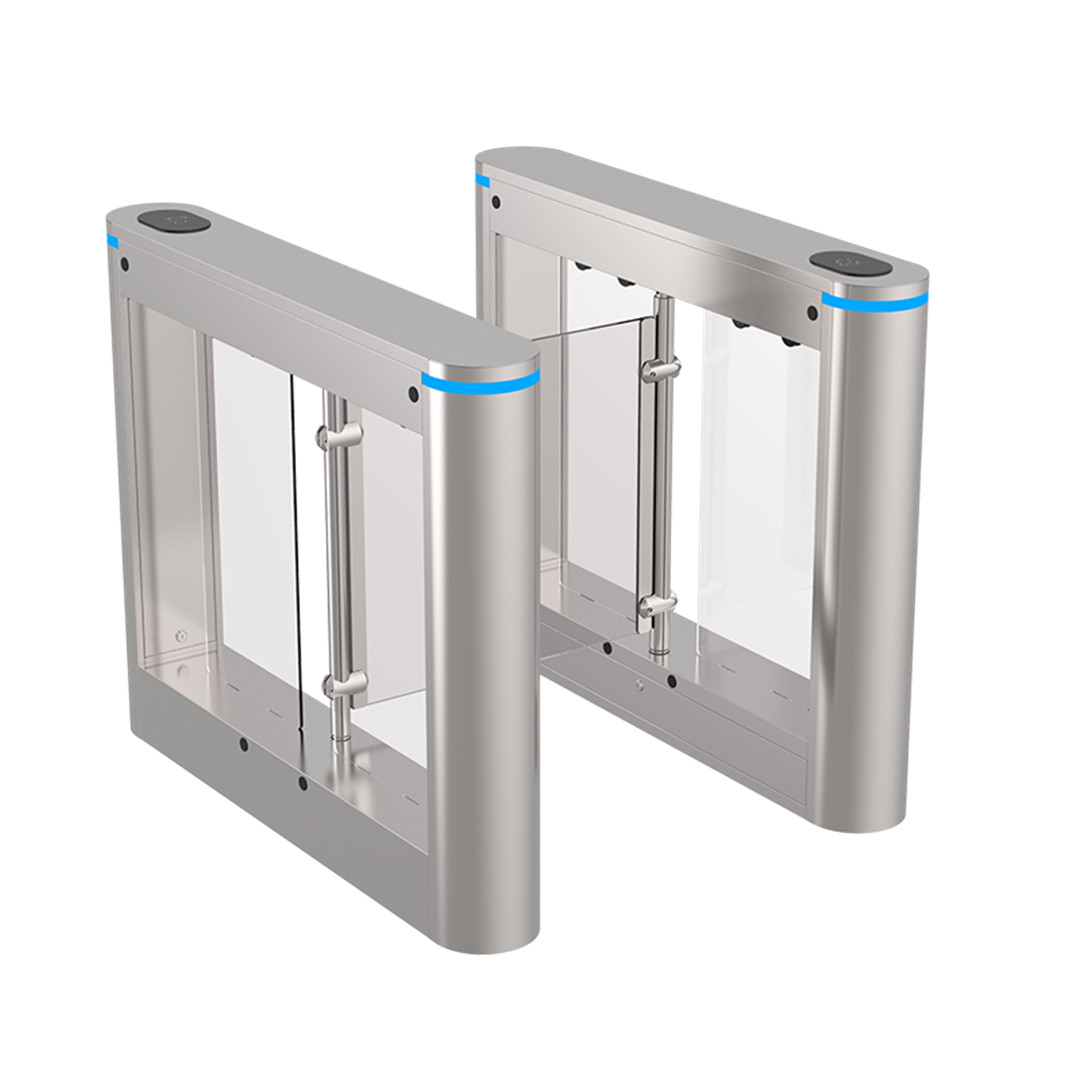

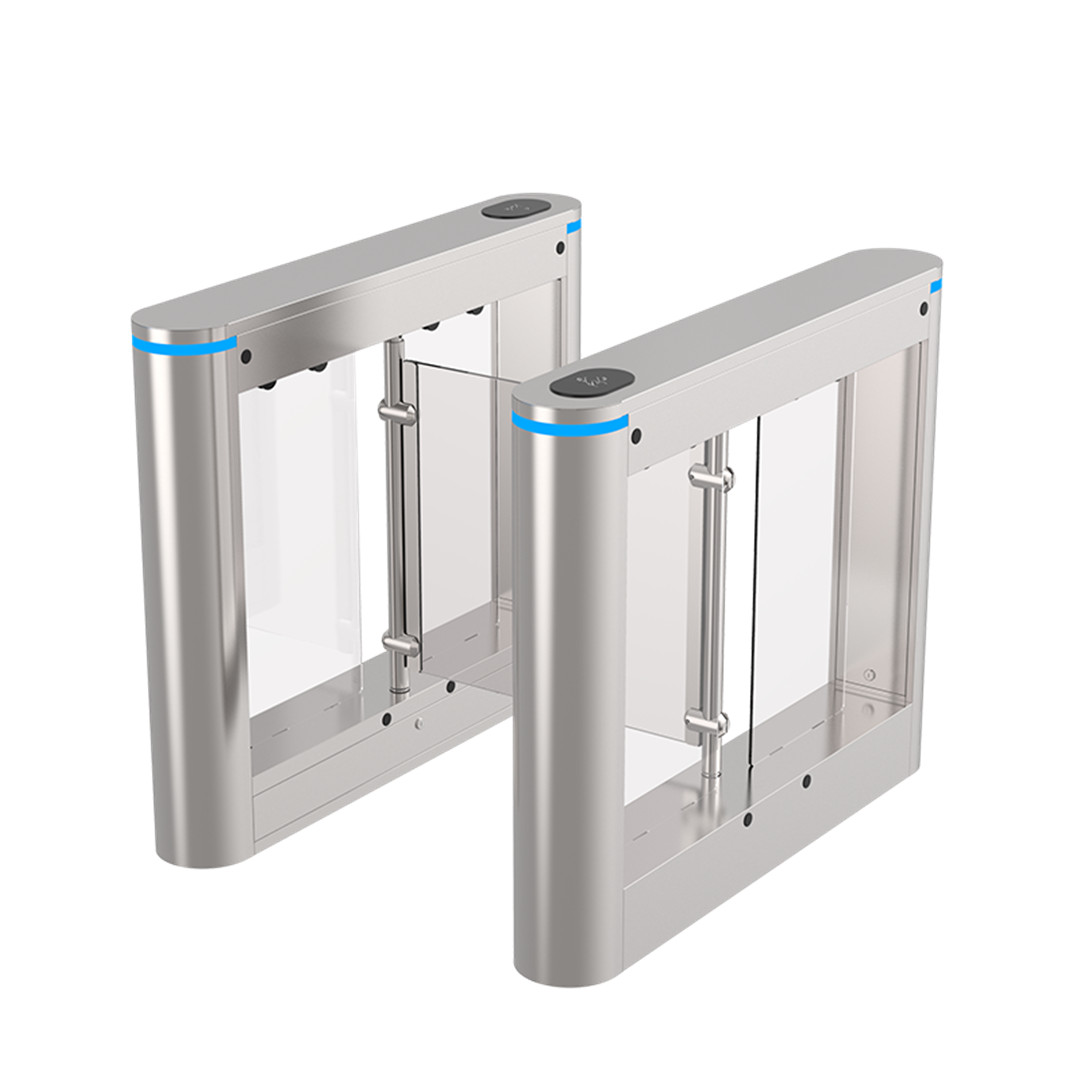

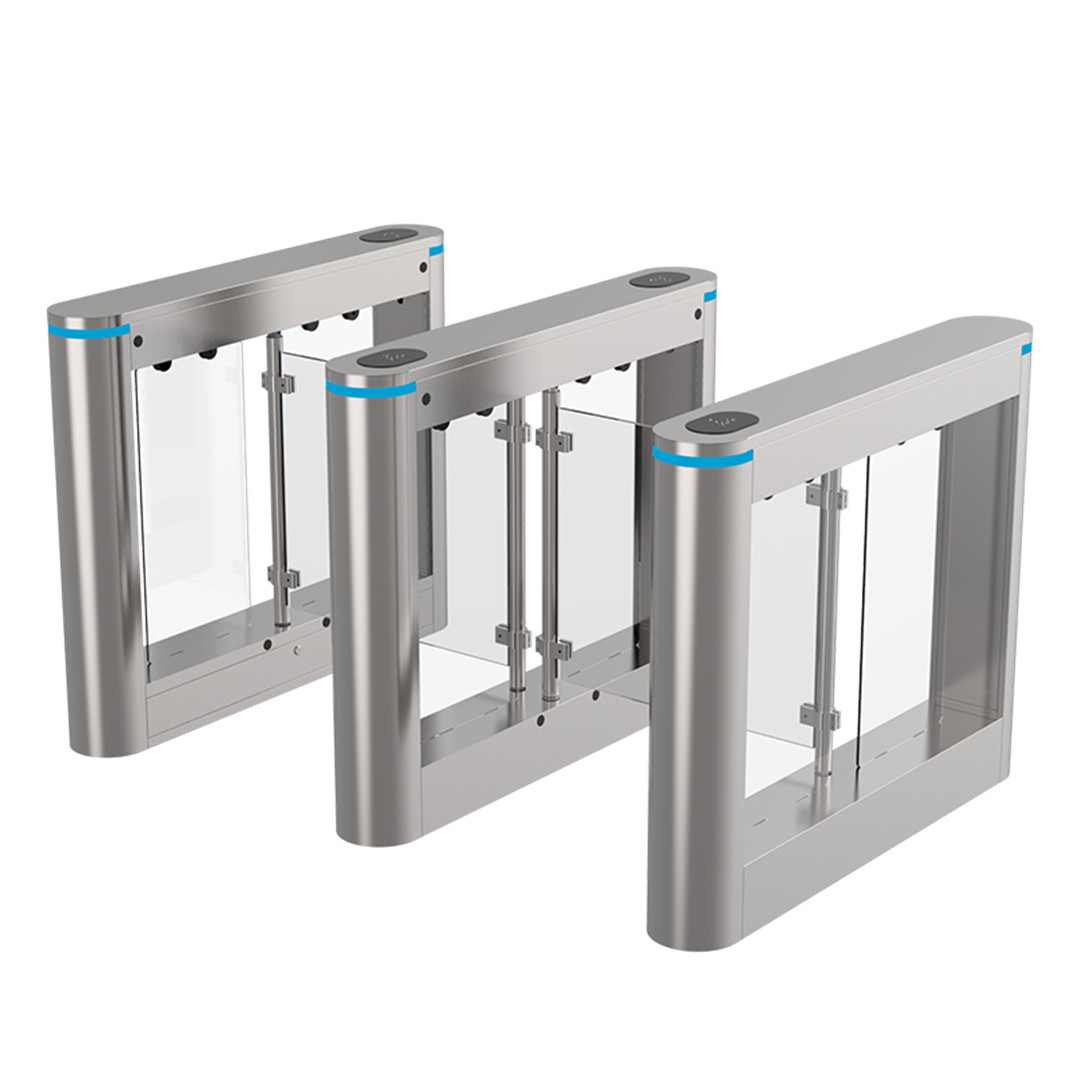

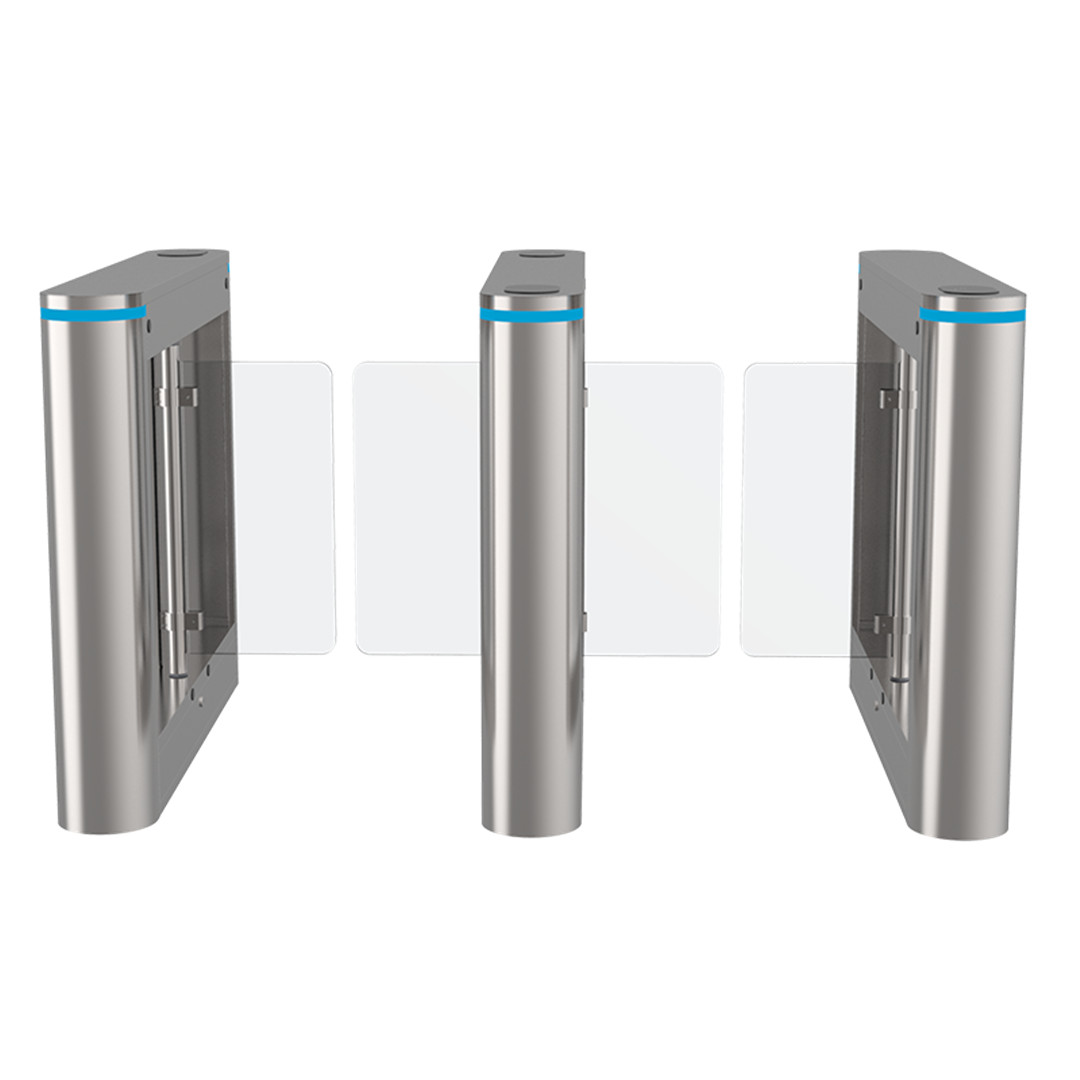

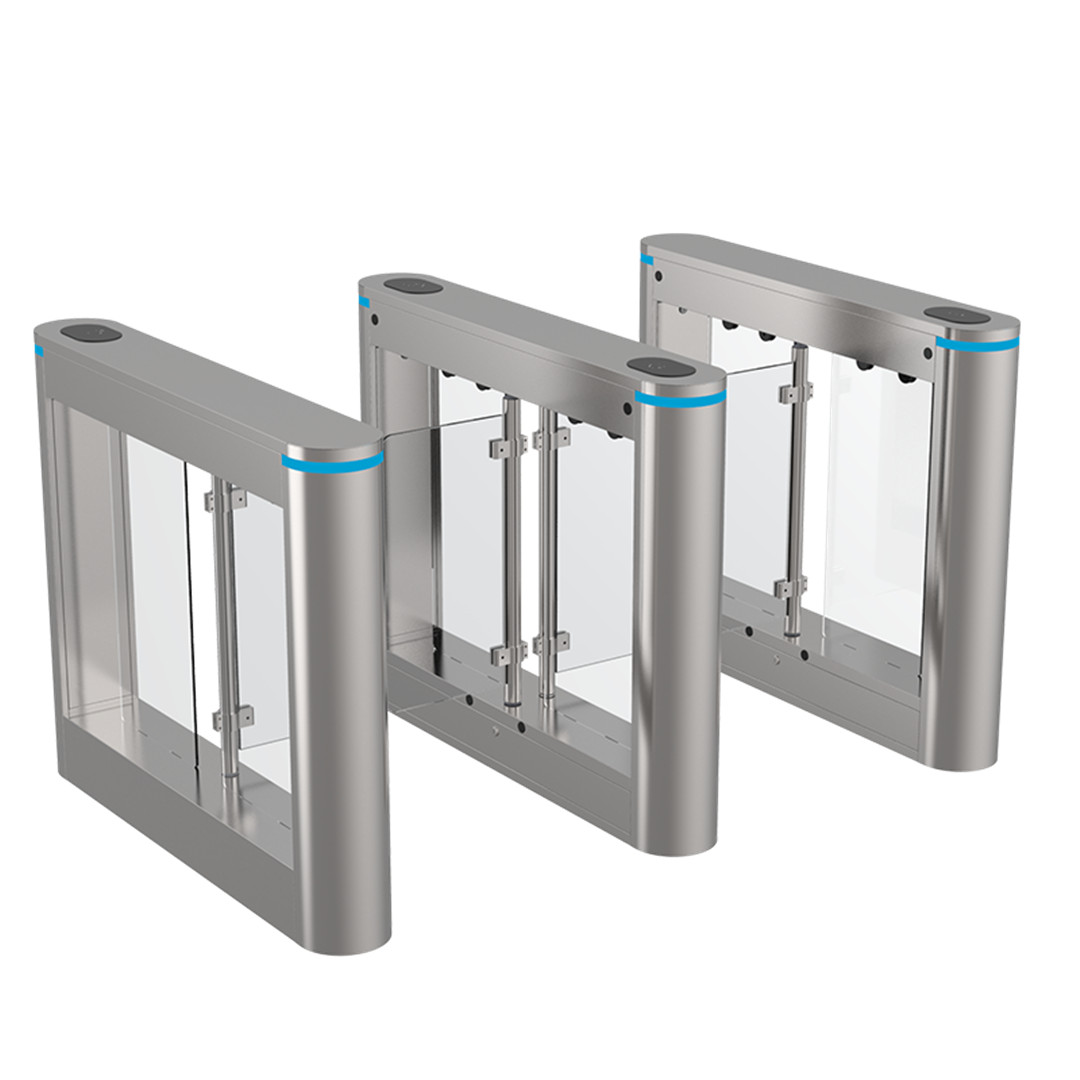

LED Indicator Card Reader Speed Gate Entrance System Swing Gate
Product Parameters
| Model NO. | ES30812 |
| Size | 1200x185x980mm |
| Main Material | SUS304 1.5mm Top Cover + 0.9mm Body + 10mm Transparent Acrylic Barrier Panels |
| Pass Width | 600-900mm |
| Pass Rate | 35-50 person/min |
| Working Voltage | DC 24V |
| Power | AC 100~240V 50/60HZ |
| Communication Interface | RS485, Dry contact |
| MCBF | 3,000,000 Cycles |
| Motor | 60K 50W DC Brushless motor |
| Machine Core | Brushless Swing gate integrated Machine Core |
| Infrared Sensor | 4 pairs |
| Working Environment | Indoor and Outdoor |
| Applications | Campus, Hospital, Community, Factory, Construction site, Office building, etc |
| Package Details | Packed into wooden cases, Single/Double: 1285x270x1180mm, 58kg/78kg |
Product Descriptions
Brief introduction
The brushless swing turnstile gate is a kind of two way speed access control equipment designed for places with high class security requirements. It is easy to integrate with IC access control, ID access control, code reader, fingerprint, face recognition and other identification devices. It realizes the intelligent and efficient management of passage.
DC brushless small swing gate which comes with RGB led indicators, mainly used for campus, hospital, community, factory, construction site, office building and etc, its competitive price usually attracted most distributor’s sight.
Function Features
·Varied pass mode can be chosen flexibly.
·Standard signal input port, can be connected with most of the access control board, fingerprint device and scanner other equipment.
·The turnstile has automatic reset function, if people swipe the authorized card, but don’t pass through within the settled time, it need to swipe card again for entry.
·Card-reading recording function: single-directional or bi-directional access can be set by the users.
·Automatic opening after emergency fire signal input.
·Physical and infrared double anti pinch technology.
·Anti-tailgating control technology.
·Automatic detection, diagnosis and alarm, sound and light alarm, including trespassing alarm, anti-pinch alarm and anti-tailgating alarm.
·High light LED indicator , displaying passing status.
·Self diagnostic and alarm function for convenient maintenance and use.
·The speed gate will open automatically when power failure.
#304 stainless steel
Anti-rust
Wear resistance
High temperature resistance
Corrosion resistance
Brushless swing gate integrated machine core
Die-cast aluminum integral molding + spraying treatment
With brushless motor, seamless connection, long-lasting use
Pedestrian turnstile gate main board
RGB three-color light
Infrared anti-pinch
Physical anti-pinch
Memory mode 13 traffic modes
Audible alarm
Dry contact opening/RS485
Standard fire interface
Chinese and English display
Counting function
Secondary development
Audible alarm
Brushless Swing gate PCB board
1. Arrow + three-color light interface
2. Double anti-pinch function
3. Memory mode 4. Multiple traffic modes
5. Sound and light alarm
6. Dry contact / RS485 opening
7. Support fire signal access
8. LCD display
9. Support secondary development
10. More than 80 subdivision menus on the control board, more intimate and more user-friendly to meet your requirements
