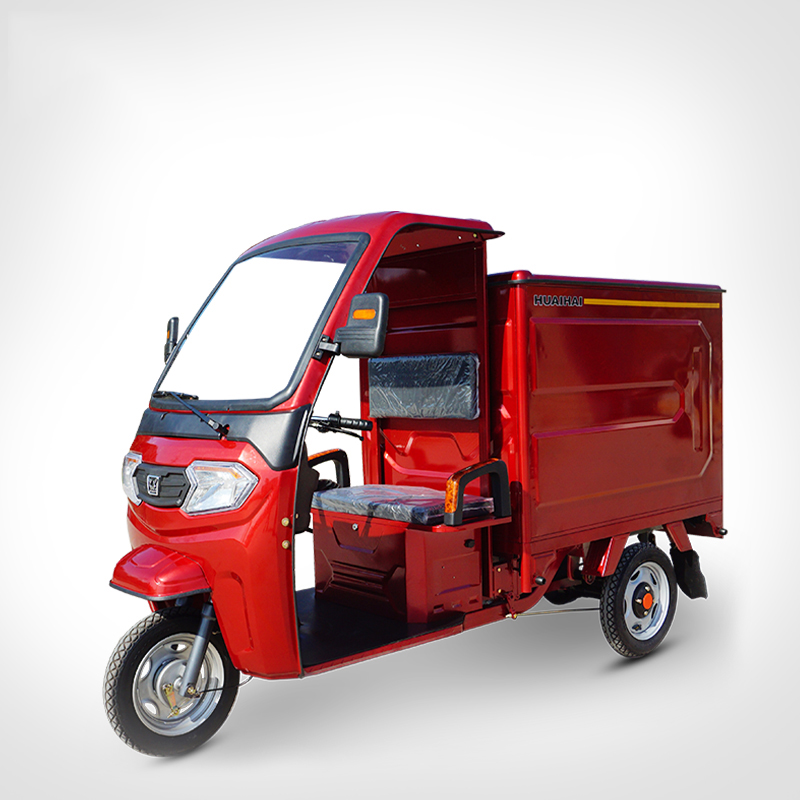

Logistics electric vehicle
| Overall Size | 3020*980*1705mm |
| Cargo Box Type | 1400*900*950mm |
| Cargo Box Size | Closed cargo box |
| Motor Type | Built-in motor/DC synchronous/square wave/magnet hight 45 |
| Rated Power | 800W |
| Peak Power | 2200W |
| Transmitting Mode | Gear transmitted |
| Controller | 18 tubes |
| Max. Current | 42A |
| Front Suspension | Duplex/φ33mm/720mm tube absorber |
| Rear Suspension Type | 6pcs leaf spring+spring absorber |
| Rear Shock Absorber | / |
| Rear Axle | Taper axle/1:10/φ60mm/thickness 3.5mm |
| Min. Turning Radius | 6500mm |
| Min. Ground Clearance | 150mm |
| Leaf Spring | 6 pcs leaf spring/width 45mm/thickness 5mm |
| Tyre (F/R) | 3.50/3.50-12 |
| Brake Type | Mechanical brake |
| Brake Mode | Drum / drum |
| Max. Speed | 28km/h |
| Battery | 60V/60Ah |
| Mileage Per Charge | 110km |
| Charging Time | 6-8 hours |
| Curb Weight | 260 kg |
| Rated Gross Weight | 560kg |
| Max. Designed Gross Weight | 650kg |
| 40HQ Container Packing Qty. | CKD 48 sets |
| Features | 1. Multimedia instrument panel, one-button intelligent alarm 2. Application technology of lithium electrical energy storage system 3. Handrail with integrated handbrake type 4. Integratable intelligent positioning module 5. Wide vision for driving |
