Manual Cutting Machine
This machine uses combined structure; the main head can rotate 180 degree and be electrically moving up and down. The whole machine has compact structure, fine appearance, stable functions and high processing precision, which suits for edge cutting and milling of small slates, lath and thick tiles.
| Appellation | Unit | A | B | |
| Max. disc diameter | mm | Φ600 | Φ600 | |
| Max. lifting stroke | mm | 350 | 350 | |
| Worktable size | mm | 3000×750 | 3500×750 | |
| Max. processing size | mm | 2700×1100/1200 | 3200×1100/1200 | |
| Water consumption | m³/h | 3 | 3 | |
| Power of main motor | kW | 15/18.5 | 15/18.5 | |
| Total power | kW | 16/19.5 | 16/19.5 | |
| Dimension(LxWxH) | mm | 5500×2200×2250 | 6000×2200×2250 | |
| Weight | kg | 2800 | 3200 | |
Machine part
1. The work table adopts rack and pinion structure to move back and forth to to greatly reduce power loss, improve transmission efficiency and enhanced service life.The machine adopts the joint structure, which has good rigidity, stable and reliable operation and durability.This machine worktable is manufacture as a whole, which the whole castings and steels are all made of national standard steel. The specifications of the profiles are larger than those of the manufacturers on the market. The thickness of the plates and materials is thicker, which is having a good quality and strong overall rigidity.
The whole machine has compact structure and the main head can rotate 180 degree and be electrically moving up and down, suit which suit for edge cutting and milling of small, lath and thick tiles.
The appearance is novel; the color is combined with Chinese red and dark blue. Chinese red is the color that the Chinese people like, symbolizing passion and joy; the deep blue symbolizes industry, full of design sense, futuristic, giving a strong visual impact.Innovative painting process, from the traditional machine painting process to the current single part painting process, fine workmanship, making parts more anti-corrosion, anti-rust, overall appearance.
Electric part
The electrical part adopts domestic famous brands, with stable quality and high cost performance.
Other
A. Machine work can be changed from manual to automatic according to customer needs（Customizable）
B. Packing & Loading
Each unit packed into one 20ft or 40ft container, screws fix well into container to avoid shake.
C. After-sales service：
Thoughtful and efficient after-sales service, provide support and protection for your benefit
1. According to the contract, guide equipment installation, commissioning for customers on schedule.
2, On-site training, guide the customer about the product specification operation and technical use
3. Responsible for receiving and handling customer’s suggestions and complaints about product quality and service quality
4. In warranty period, we will do the tracking and inspection unscheduled to implement our service with dynamic management.
5 If there is something problem with the machine during the warranty period, we will send someone to repair it for free
6. The customer can enjoy life-long after-sales service after the warranty period.
7. Responsible for training service personnel regularly, continuously improve the overall quality of service personnel
8. We provide customers with equipment failure maintenance personnel, business consulting, customer complaints and other recommendations the whole day.

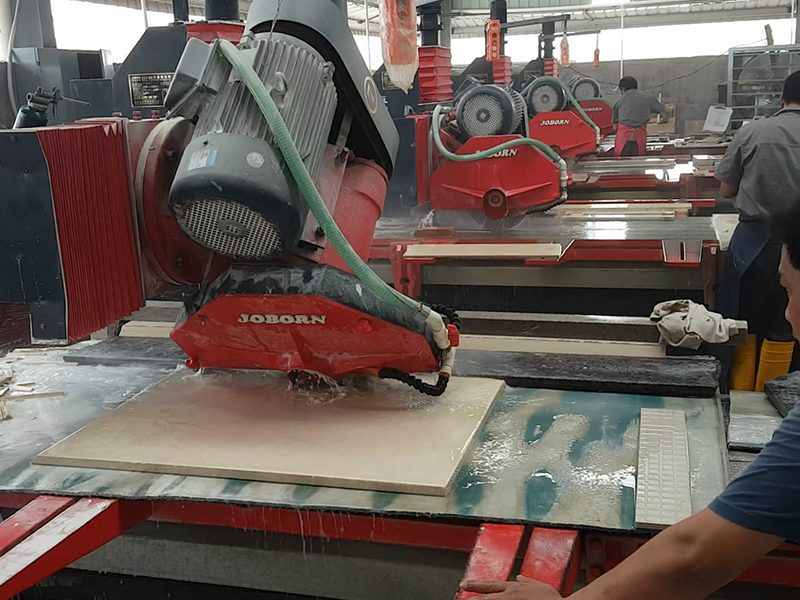

Processing site
Products categories
WHY CHOOSE US
Since its establishment, our factory has been developing first world class products with adhering the principle
of quality first. Our products have gained excellent reputation in the industry and valuabletrusty among new and old customers..
