China Manufacturer Solid-liquid Separation Belt Filter Press Equipment Manufacturer and Supplier

Manufacturer Solid-liquid Separation Belt Filter Press Equipment

Short Description:

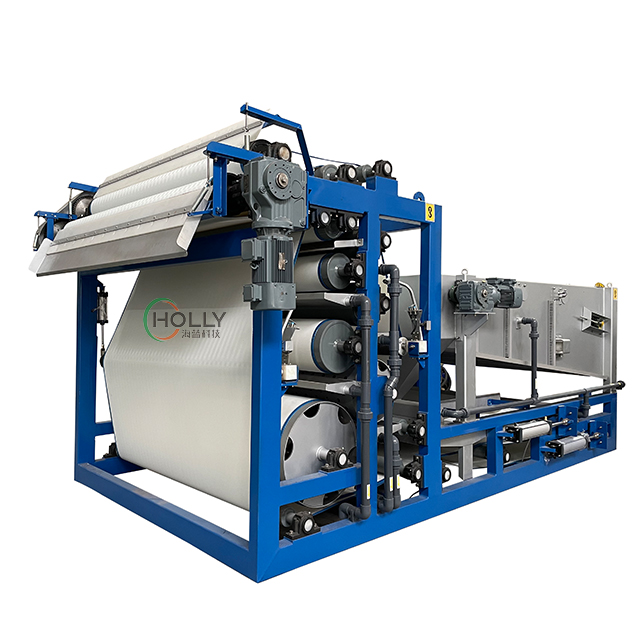

The belt filter (belt press filter, or belt filter press) is an industrial machine, designed and manufactured by our factory. It has S-shaped filter belt, so the pressure of sludge is gradually increased and eased. It is suitable for the dewatering of organic hydrophilic materials and inorganic hydrophobic materials , particularly the dewatering of sludges in the chemical industry, mining and water treatment. The process of filtration is primarily obtained by passing a pair of filtering cloths and belts through a system of rollers. The system takes a sludge or slurry as a feed, and separates it into a filtrate and a solid cake.Due to lengthening the settling zone, this series of press filter has rich experience in filter pressing and dewatering of different types of materials.

Send email to us

Product Detail

Product Tags

Product Features

1. Material of the main structure : SUS304/316
2. Belt : Has a long service life
3. Low power consumption, slow-speed of revolution and low noise
4. Adjustment of belt: Pneumatic regulated, ensures the stability of the machine
5. Multi-point safety detection and emergency stop device:improve the operation.
6. The design of the system is obviously humanized and provides convenience in operation and maintenance.

Applications

The Sludge Dewatering Screw Press can be widely used for various wastewater treatment systems such as municipal, petrochemical, chemical fiber, paper making, pharmaceutical, leather and other industrial water treatment system. Also it can be used for Dairy Farm Manure Treatment, Palm Oil Sludge, Septic Sludge, etc. The practical operation shows that Dewatering Screw Press can bring considerable economic and social benefits for users.

Beverage processing

Dairy industry

Meat Processing

Mining industry

Municipal Wasterwater

Paint factory

Paper Mill

Petrochemicals

Printing and Dyeing

Sewage Treatment

Technical Parameters

Model Item	DNY 500	DNY 1000A	DNY 1500A	DNY 1500B	DNY 2000A	DNY 2000B	DNY 2500A	DNY 2500B	DNY 3000
Output Moisture Content%	70-80
Polymer Dosing Rate%	1.8-2.4
Dried Sludge Capacity kg/h’	100-120	200-203	300-360		400-460		470-550		600-700
Belt Speed m/min	1.57-5.51	1.04-4.5
Main Motor Power kW	0.75	1.1					1.5
Mixing Motor Power kW	0.25	0.25	0.37		0.55
Effective Belt Width mm	500	1000	1500		2000		2500		3000
Water Consumption m3/h	6.2	11.2	16	17.6	20.8	22.4	24.1	25.2	28.8
