MIL Tantalum Hybrid Capacitor ▏ CBEN

Short Description:

❖ Characteristics and Application

•All tantalum case, hermetic sealed, square, small size, radial leads, Polarized
•This product is made up of tantalum capacitor and electrochemical capacitor
•Stable electric performance, high reliab山ty, long life, large energy density per unit volume, store much energy.
•Used as battery in Energy conversion circuit and power pulse ci「cuit, Perform Energy storage,filter, power-off delay in circuit.
•Standard: GJB733A-96,QJ/PWV500-2013,QJ/PWV519-2013,QJ/PWV518-2013


Product Detail

Product Tags

❖ Technical Performance

Temperature range: -55’C-+125•c C >85″C use derated voltage) Store environment temperature: -62’C-+130’C

Capacitance tolerance: K=士10%; M=士20 : Q=-10%-+30%

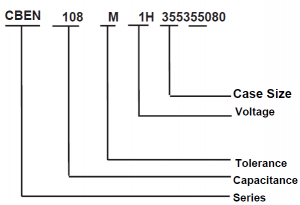

PART NUMBER EXAMPLE

NEIFAGH7_N_7PY0PC2-300x205

Notes

•Tantalum capacitors can’t been measured by multimeter.(Easily cause irreversible damage and lead to reject when reversed polarity)
•Capacitance, OF measure frequency: 100Hz,DC offset voltage U-=2.2% V,Exchange offset voltage U-= 1.0°-o.sV(effective value), measure method is by series equivalent circuit
•Measure the leakage cur「ent at 125℃,please use derated voltage. DCL read at 5 minute
•Special size and big capacitance products, please negotiate with us
