Model: XT80-1, Full automatic down washing&centrifuging machinery.

Short Description:

This Full automatic down washing&centrifuging machinery is the most advanced down wash & centrifuge machine in modern times, it integrates washing and centrifuging functions together in one independent machine.


Product Detail

Product Tags

Name Washing&Centrifuging Machine
Model XT80
Power 37KW
Material Stainless steel
External Dimension 4000×2000×2200mm
Output 60-80KG /time

Control mode is automatic/manual.Integrated wash feather and dehydration together,the structure is simple but compact.Adopted full variable frequency speed transmission, steady and smooth operation, low failure rate Without stirring washing,low feather damage rate, saving water and electricity. Electronic control using PLC to control. Steam to loose feather, wind pressure assist to discharge feathers. The outer cylinder material is stainless steel , wall board material is steel plate. The outside sieve plate of rotate drum material is stainless steelδ. The pipe material is stainless steel 304,the flange is carbon steel .

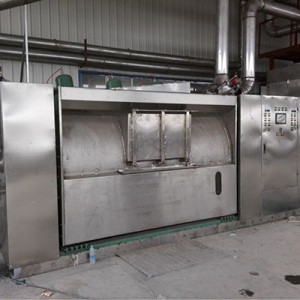

23

It is the most advanced down washing&centrifuging machine in modern times, it integrates washing and centrifuging functions together in one independent machine. It replaces older down washing machinery and centrifuging  machinery, which promote the washing technology to a new step with high-new technology and Main features:

  • Full automatically control by micro computer. From the procedures of feather-in, water-in, heating, washing, rinsing, centrifuging to feather-out, every step is full automatically.
  • High work efficiency. Work capacity can meet 80—150kg every time and 5—7 times every shift (eight hours).
  • Non-stirring washing. It reduces the friction and collision between feathers and machinery, which  highly  reduce the feather damage ratio.
  • Rotating drum and outer roller material are all stainless structure, which can resist acid and alkali and not rust. The quality of down washing will be improved obviously.
  • Reduce water consumption. It would reduce about 30% water consumption comparing with older feather washing machinery.
  • Warm water to wash feather. Utilizing steam to heat and enhance down washing quality and efficiency.
  • It adopts frequency control speed system which is simple in structure and work stably, high quality.
