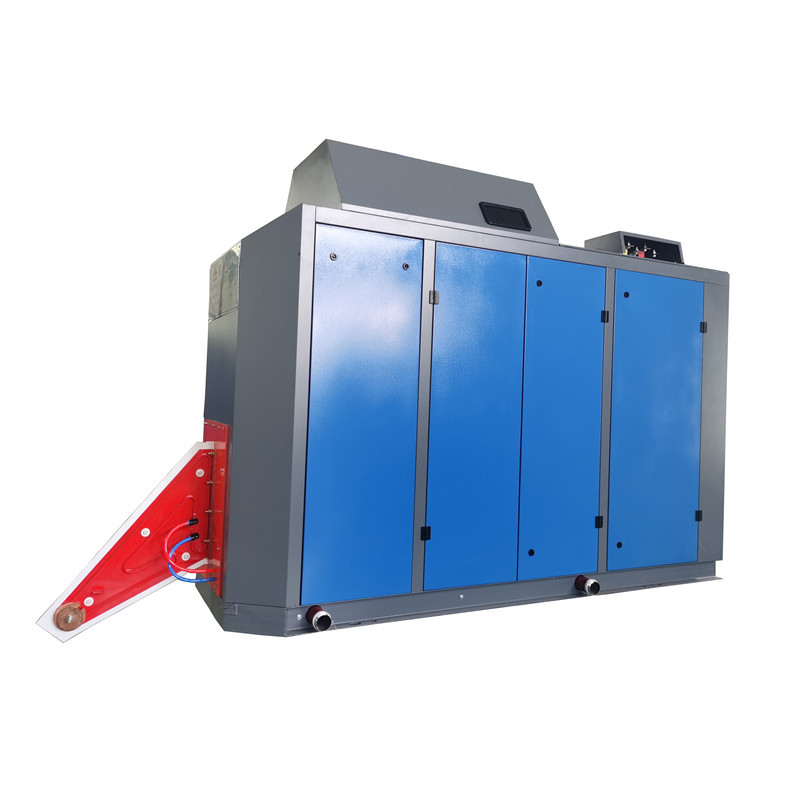

Production Introduction of 600kw HF solid state Induction heating equipment

The all-transistor (solid-state) high-frequency welding machine is designed for the straight seam induction welding of steel pipes. The module composed of MOS high-power devices constitutes the oscillation part, and the power capacitor bank C, the inductor coil L and the reliable protection control circuit constitute a constant current type inverse Changer. The solid-state high frequency is realized by the sequential control system to realize the equipment chain control and fault display function.

Production Parameter (specification) of the 600kw high frequency solid state welding carbon steel tube machine

Main Design Index of Solid State H.F. Welder
Output power	600kw
Rating Voltage	230V
Rating Current	3000A
Design Frequency	150~250kHz
Electricity Efficiency	≥90%

Recommended range of pipes that can be welded by the 600kw Mosfet Digital Control Solid State High Frequency Tube Welder

Pipe material: carbon steel

Pipe diameter:76-200 mm

Pipe wall thickness:2.0-8.0mm

Cooling Mode: Use Water-Water cooler system to cool 600kw solid state high frequency welder

After sale service:Online support,Field installation,commissioning and training,Filed maintenance and repair service

Equipment principle of solid-state high frequency (HF) welders which instead of Vacuum tube

The three-phase input voltage is stepped down and isolated by a step-down transformer, and then rectified into a DC voltage of 250 volts through a three-phase fully controlled rectifier bridge. After two-stage LC filtering, it is sent to the inverter bridge, inverted into alternating current of the required frequency, and finally output to the load through the tank circuit.

Use for Three phase switch welder for industrial

High-frequency welding machines can be used for welding metal pipe fittings, such as: copper pipes and copper pipes, copper pipes and steel pipes, steel pipes and steel pipes, steel pipes and iron pipes, copper pipes and iron pipes, iron pipes and iron pipes, copper pipes and aluminum pipes , Butt welding, plug welding, sleeve welding of steel pipe and aluminum pipe, aluminum pipe and aluminum pipe, etc., used for welding metal pipe fittings
