Muffle Furnace
Video
Description

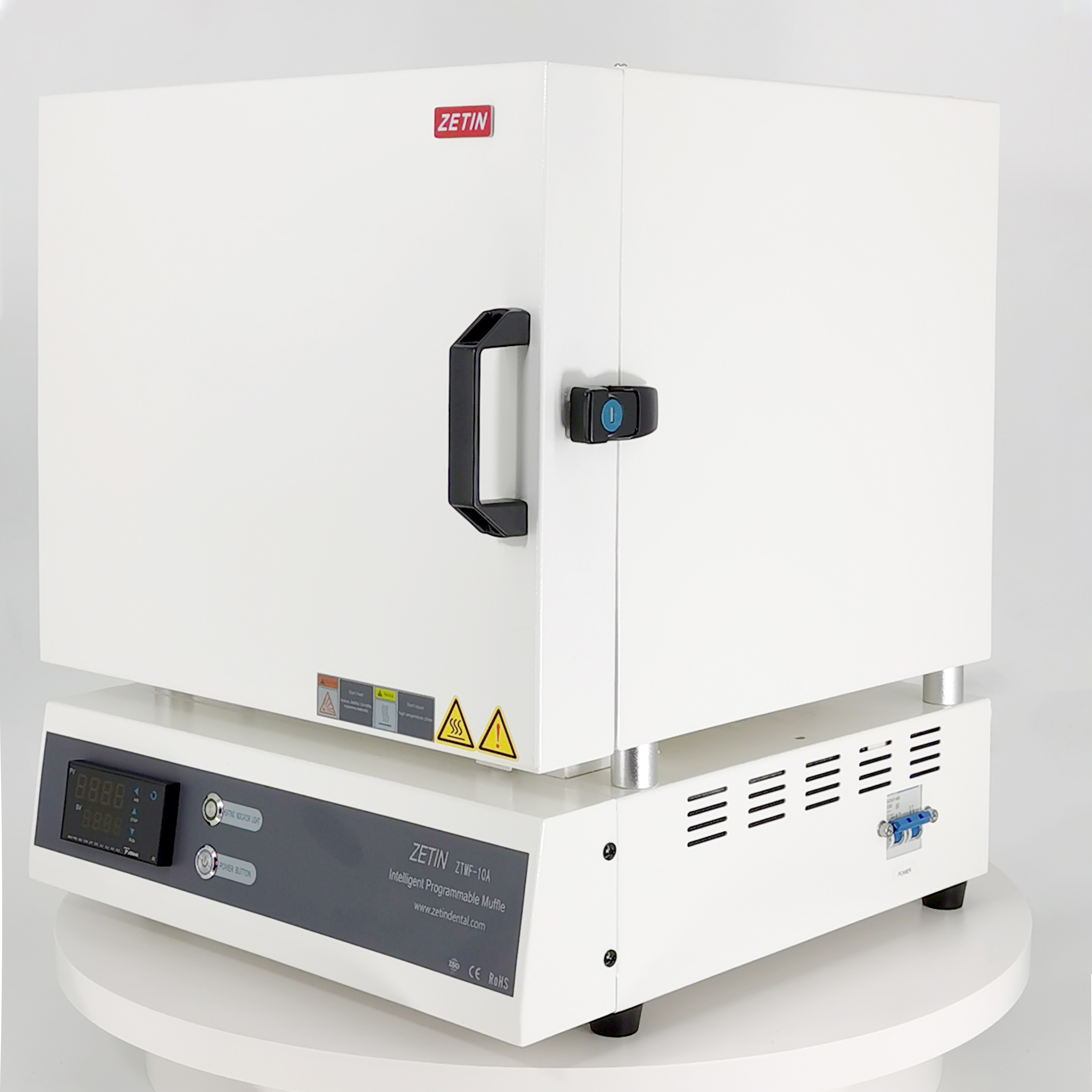

Zetin muffle furnace has fast heat-up rates. The compact design perfect for many applications in the laboratory. There 8 carbon robs on are on the right and left side of chamber, also has a secure switch, so the power will automatically cut off when the door was open, and outer is designed with multi-point connection and ground wire design ensure the operator safe.
Technical Parameters
| Max.temperature | 1100℃ |
| Heating rate | ≤70℃/min |
| Temperature control accuracy | ±1℃ |
| Electrical connected value | 220 V 50/60 HZ |
| Rated power | 4 KW |
| Heating element | Dental silicon carbide rods |
| Capacity | 150×150×165 mm |
| Program stage | 30 stages |
| Size (L*W*H) | 420 × 410 ×490 mm3 |
| Net weight | 20 KG |
Features
◑ Safety micro switch, which will automatically cut off the power when the door is opened to protect the operator safe;
◑ The furnace shell is grounded, and the power wire is reserved for grounding to ensure operator safe;
◑ High-performance optimization silicon carbide heating elements for dental field, stable heating with non-pollution;
◑ 30-segment programmable temperature curves, which can set heating rate and holding time according to the demand;
◑ PID intelligent temperature control instrument with high temperature control precision;
◑ New environmentally thermal insulation materials, thick insulation layer design, good thermal insulation effect, power and energy saving;
