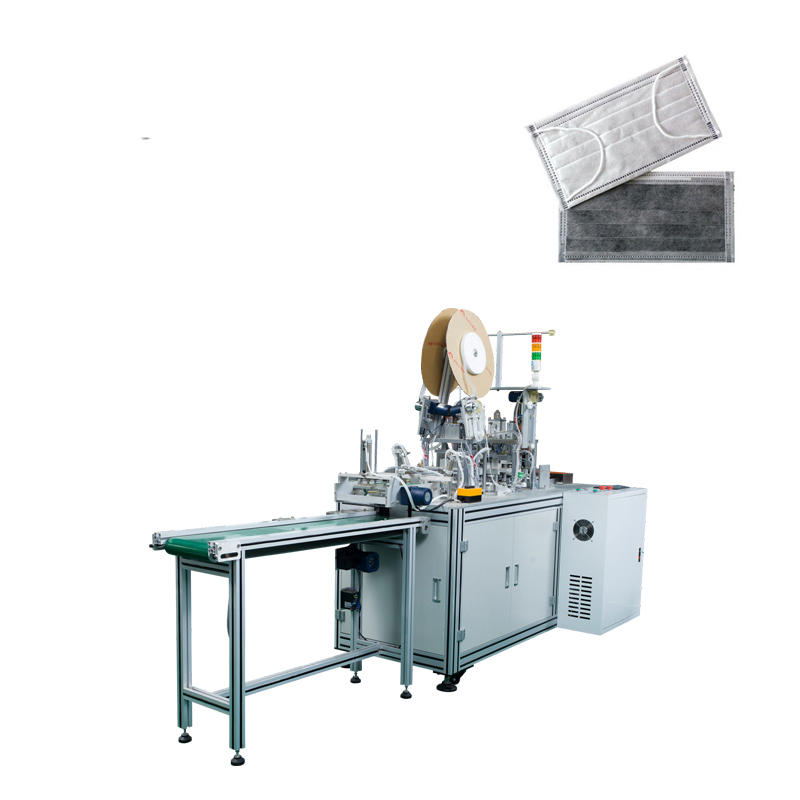

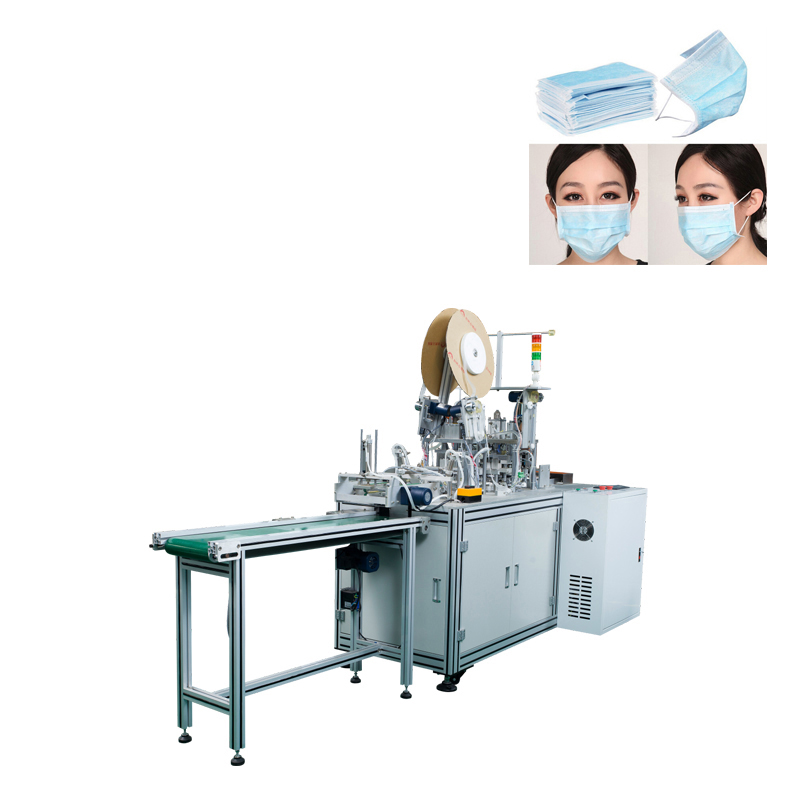

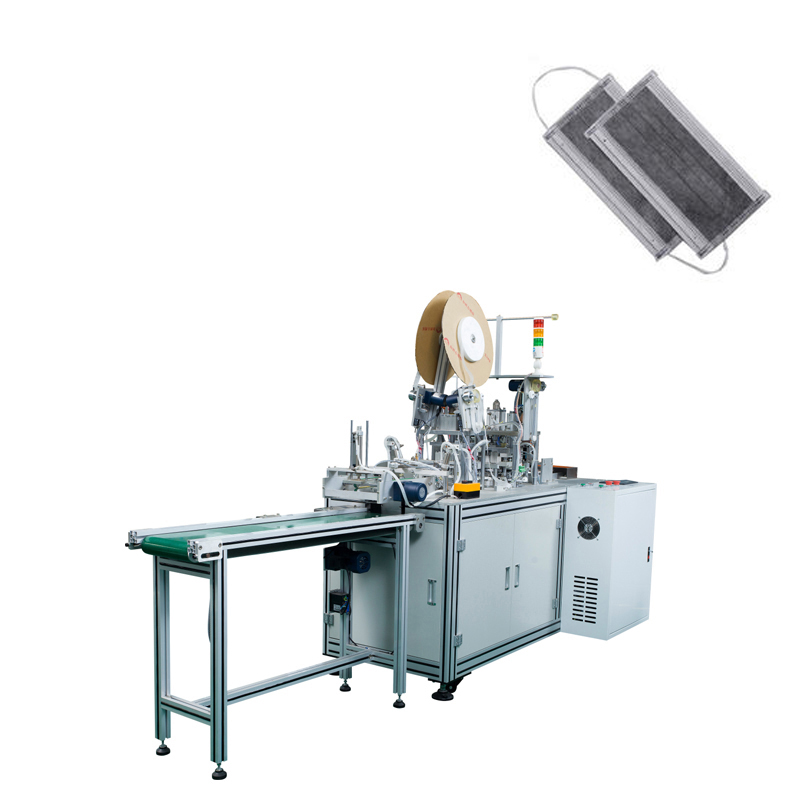

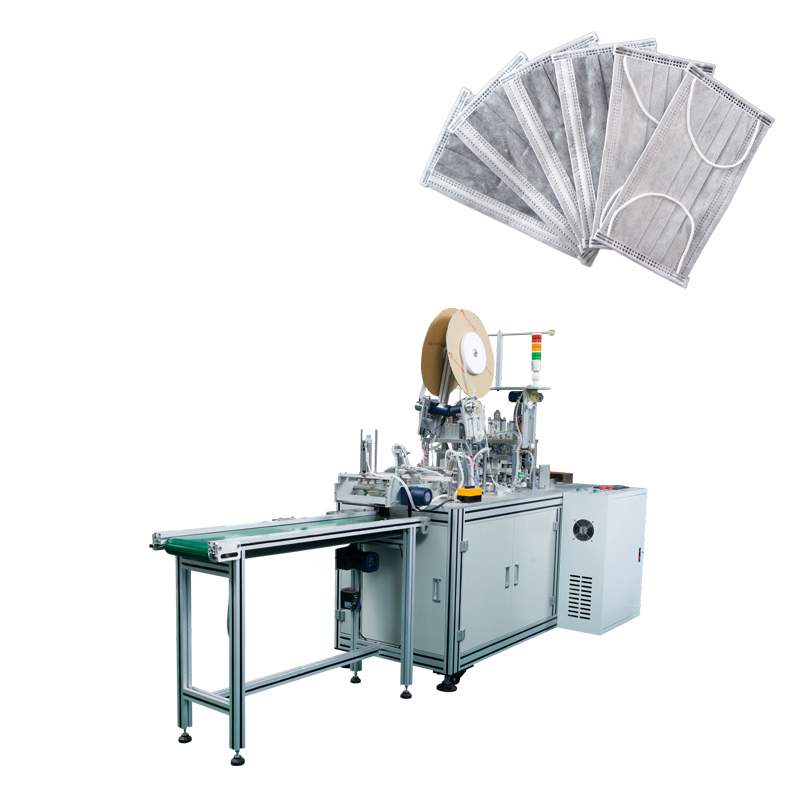

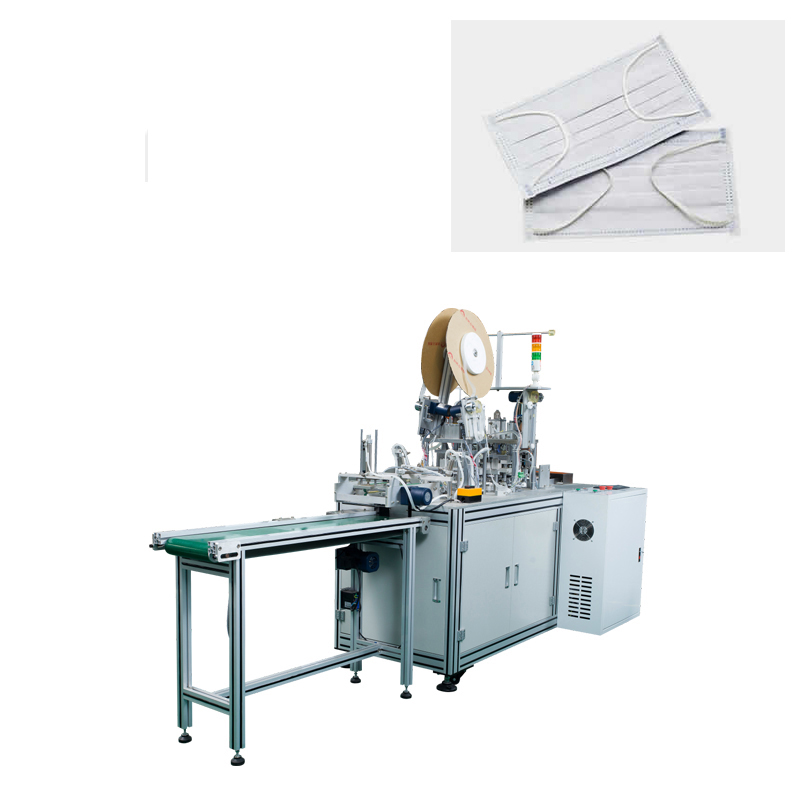

Nonwoven Dust Face Mask Ear Loop Welding Machine

Short Description:

This machine is to put 3-7 mm wide elastic belt on the both sides of the face mask blank by the ultrasonic welding. Only 1 operator is needed to put the face mask blank on the moving belt one by one and the finished face mask will be made by the machine automatically. On the basic of the old-style mask machine, this machine has a more stable and high output and changed its rotating way for the ear-loop.

Min. Order / Reference FOB Price1 Set US $12,000-14,000/ SetProduction Capacity: 30 Sets/MonthApplication: Labor, Medical, LifeCertification: CE, ISO9001:2015Condition: NewOutput: 50-70PCS/MinModel Number:HY100-02


Product Detail

Product Tags

Disposable Face Mask Making Machine

TECHNICAL PARAMETERS

Machine Size  1960*960*2300 mm
Output  50-70 pcs/min
Voltage  220 V/380V
Power  1.0 KW
Pressure  0.6 Mpa
Fuselage material  Aluminium alloy
Note  Optional machine, waste collector is available



SPECIFICATIONS

Brand Name: HY Payment Terms: T/T
Automatic Grade: Automatic Warranty: 1 year
Customized: Optional After-Sales Service Provided: Engineers available to service machinery overseas

Features

1. Tight machine structure, small size, does not occupy space.

2. High stability, low errors.

3. Beautiful strong and rustproof with the aluminum alloy structure.

1

1 (4) 1 (3)

Packaging & Delivery

Packaging Details Packaged by standard export wooden box
Port SHENZHEN
Lead Time 35-50 days
