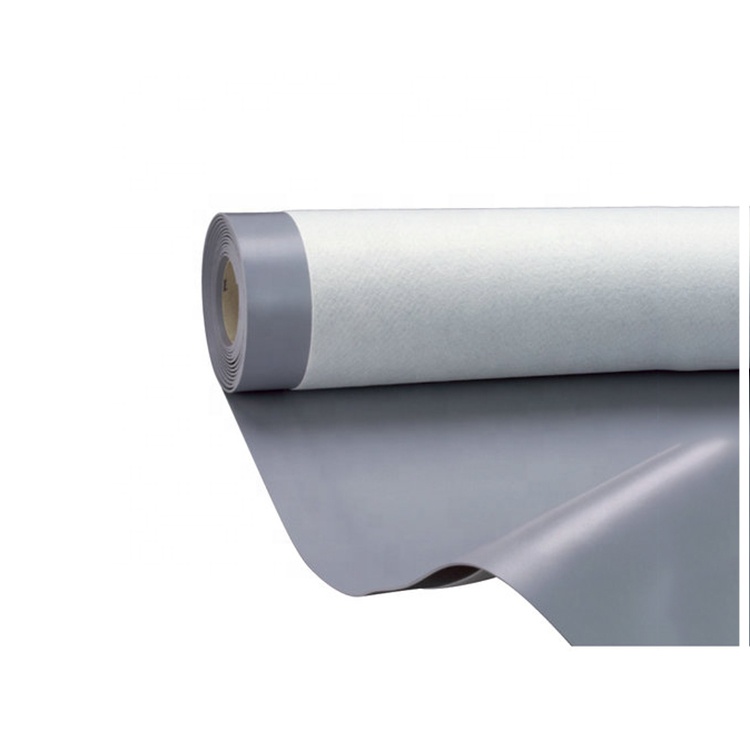

On Sale PVC Membrane for Roofing and Building Waterproof

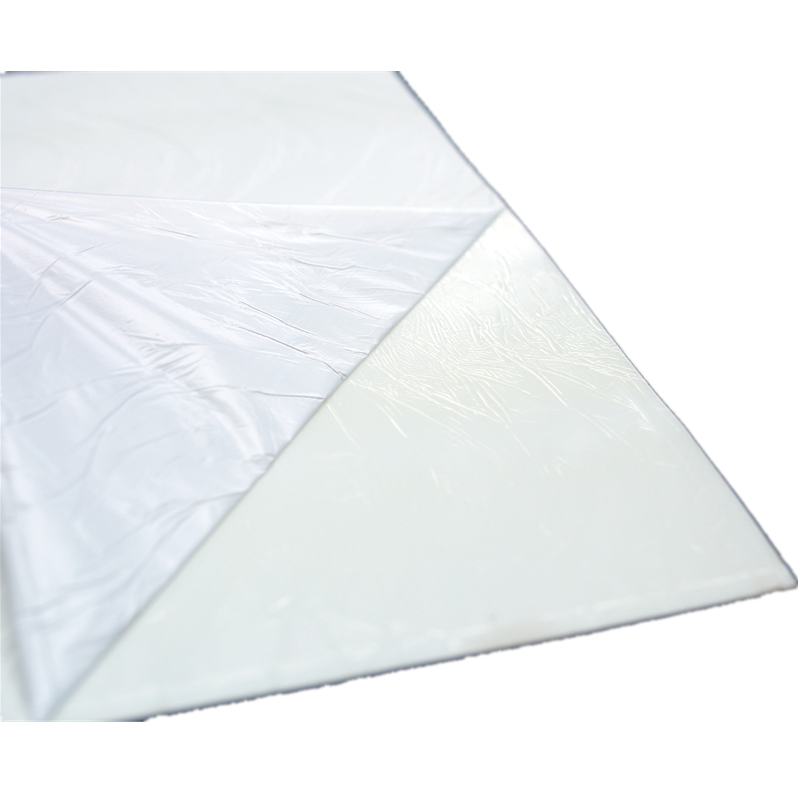

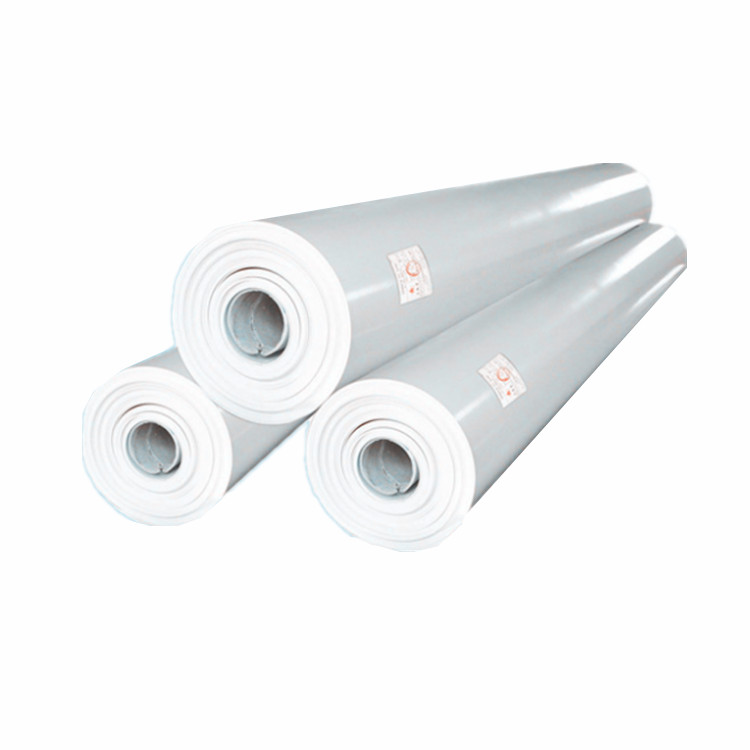

PVC geomembrane
PVC geomembrane is a highly flexible thermoplastic waterproofing geomembrane manufactured from a mixture of vinyl compounds, plasticizers and sabilizers. They are your answer if you need to cover your subgrade fast. With custom fit prefabricated panels up to 40,000 sq. ft we often cover the subgrade faster than the contractor can prepare it, protecting your valuable subgrade investment!
PVC geomembranes offer excellent puncture, abrasion, and tear-resistance and work to prevent contaminants from entering the groundwater to preserve potable water sources. Its wide range of chemical compatibility also makes it the best choice for buried geomembrane applications.
| TESTED PROPERTY | TEST METHOD | UNIT ENGLISH METRIC |
VALUE ENGLISH(METRIC |
||||
| 20PV | 30PV | 40PV | 50PV | 60PV | |||
| Thickness | ADTM D 5199 | mil(mm) | 20±1（0.51±0.03） | 30±1.5（0.76±0.04） | 40±2（1.02±0.05） | 50±2.5（1.27±0.06） | 60±3（1.52±0.08） |
| Tensile properties: Strength at break Elongation Modulus @ 100% |
ASTM D 882 Min | lbs/in(kN/m) % lbs/in(kN/m) |
48(8.4） 360 21（3.7） |
73(12.8) 380 32（5.6） |
97(17) 430 40（7.0） |
116(20.3) 430 50（8.8） |
137(24.0) 450 60（10.5） |
| Tear Strength | ASTM D 1004 min | Ib(N) | 6(27) | 8(35) | 10(44) | 13(58) | 15(67) |
| Dimensional Stability | ASTM D1204 Max Chg | % | 4 | 3 | 3 | 3 | 3 |
| Low temperature impact | ASTM D 1790 Pass | °F（°C） | -15（-26） | -20（-29） | -20（-29） | -20（-29） | -20（-29） |
| INDEX PROPERITIES | |||||||
| Specific Gravity | ASTM D 792 Typical | g/cc | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 |
| Water Extraction %loss(Max) | ASTM D 1239 Max Loss |
% | 0.15 | 0.15 | 0.2 | 0.2 | 0.2 |
| Average Plasticizer Molecular Weight | ASTM D 2124 | 400 | 400 | 400 | 400 | 400 | |
| Votatility Loss % loss(Max) | ASTM D 1203 Max Loss | % | 0.9 | 0.7 | 0.5 | 0.5 | 0.5 |
| Soil Burial Break strength Elongation Modulus @ 100% |
G160 max chg | % % % |
5 20 20 |
5 20 20 |
5 20 20 |
5 20 20 |
5 20 20 |
| Hydrostatic Resistance | ASTM D 751 min | psi(kpa) | 68(470) | 100(690) | 120(830) | 150(1030) | 180（1240） |
| SEAM STRENGTH | |||||||
| Shear Strength | ASTM 882 D min | lbs/in(kN/m) | 38.4(6.7) | 58.4(10) | 77.6(14) | 96(17) | 116(20) |
| Peel Strength | ASTM 882 D min | lbs/in(kN/m) | 12.5(2.2) | 15(2.6) | 15(2.6) | 15(2.6) | 15(2.6) |
| This data is provided for informational purposes only. Trump Eco makes no warranties as to the suitability or the fitness for a specific use or merchantability of the products referred to, no guarantee of satisfactory results from reliance upon contained information or recommendations and disclaims all liability from resulting loss or damage. This information is subject to change without notice, | |||||||
APPLICATIONS
- Irrigation ponds, canals, ditches & water reservoirs.
- Mining heap leach & slag tailing ponds.
- Golf course & decorative ponds.
- Landfill cells, covers & caps.
- Wastewater lagoons.
- Secondary containment cells / systems.
- Liquid containment.
- Environmental containment.
- Soil Remediation.
- Animal Waste Containment.
- Mining-Heap Leach & Slag Tailings.
- Liners for Golf Courses & Decorative Ponds.
- Potable Water Reservoirs.
- Tank Linings.
- Brine & Processed Water Applications.
- Water & Wastewater Treatment & Containment.
- Industrial Applications.
- Environmental Containment.
- Soil Remediation.
Why Choose Us
-
Professional Team
Over 35 years experience, we are always able to find the best solution for you.
-
Quick Response
24*7 service.
You will always get answers in 6 hours.
-
Trust
We promise to supply products as per sample and your requirement,not cheat any client.
-
One Stop Solution
From the beginning to end, we take care of every step in your project.
-
Free Sample and High Customization
Sample will be free for you, and products liner as per the sizes of your roof and pond.
-
Free Value-added Service
Finding you the solution is the first step, more service (technical support, construction guidance etc) will supply to you soon.
Features
- Ease of molding or shaping.
- Durability under all environmental conditions.
- Good mechanical strength and toughness.
- Very good tear strength and elongation.
- Excellent resistance to abrasion.
- Good barrier to moisture.
- Excellent UV resistant.
- Very good impermeable properties.
