P2.9 Transparent LED Display

Short Description:

Transparent LED display enters into retail industry quickly as a new product with new advertising  display technology, which combines high transparency to high brightness, massively used on the glass wall of shops, such as jewellery shops, cosmetic shops, clothing shops, 4S stores, etc, even restaurant, hotel, fashion show, exhibition,etc.With the retail industry developing, transparent LED display will have a bright future.


Product Detail

Product Tags

Introduction

Radiant P2.9 transparent LED display for retail store advertsing display

Transparent LED display enters into retail industry quickly as a new product with new advertising  display technology, which combines high transparency to high brightness, massively used on the glass wall of shops, such as jewellery shops, cosmetic shops, clothing shops, 4S stores, etc, even restaurant, hotel, fashion show, exhibition,etc.

With the retail industry developing, transparent LED display will have a bright future.

Details

/products/transparent-led-screen/
/products/transparent-led-screen/
/products/transparent-led-screen/
1
2
3
/products/transparent-led-screen/
/products/transparent-led-screen/
/products/transparent-led-screen/

Features

High transparency 75%-95%

Small weight and easy installation

Magnetic module for fast maintenance

Specification

Item RDT-TP2.9 Pixel Pitch 2.9mm x 5.8mm
Module size 500mm x 250mm Cabinet size 500mm x 250mm
Cabunet Resolution 336 x 84 pixels Cabinet Weight 5 kg
Physical Density 289050 dots/m² Brightness 2500-4000nits
Driving Mode Constant Current 1/21 Refresh Rate 1920-3840 Hz
Working Voltage 100-240V AC, 50&60Hz Gray Level 16 bit
Maximum Power Consumption 800W /m² Average Power Consumption 250W /m²
Protection Level IP43 Viewing Distance >3m
Working Temperature -10℃~ +50 ℃ Working Humidity 10 – 95 % RH
LED Life(Normal Tep) 100,000 Hours Viewing Angle 140°/140°
Application Indoor install outdoor view Installation Type Fixed installation
Maintenance Method Front and rear Software System Novastar

Market

Shopping mall

25%
Retail store

35%
Exhibition & event

10%
Bank

15%
Museum

10%
Others

5%
15%

North America

10%

Europe

60%

Domestic market

15%

Others

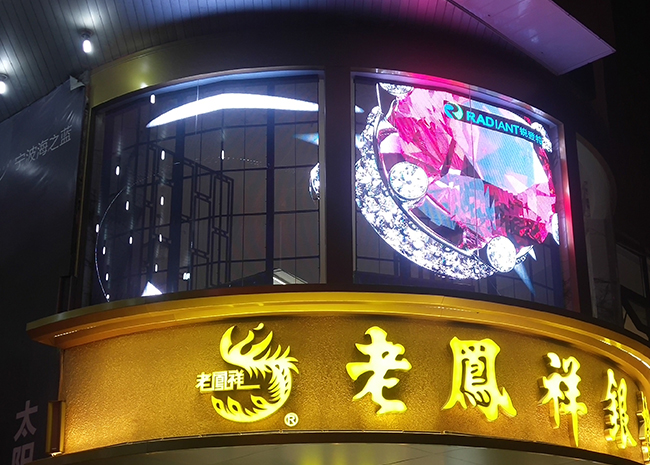

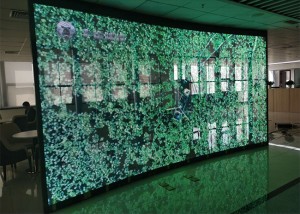

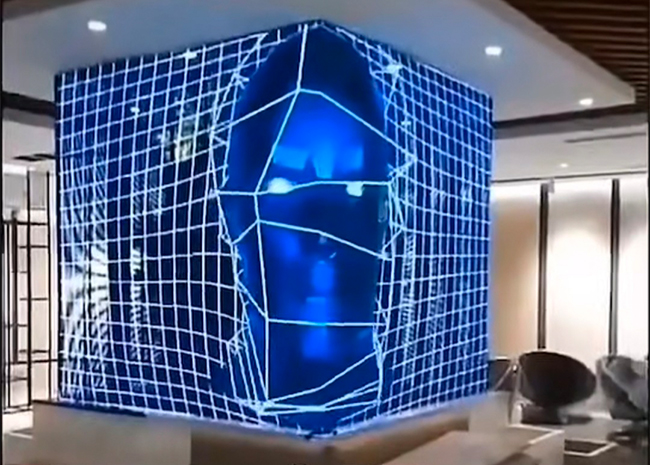

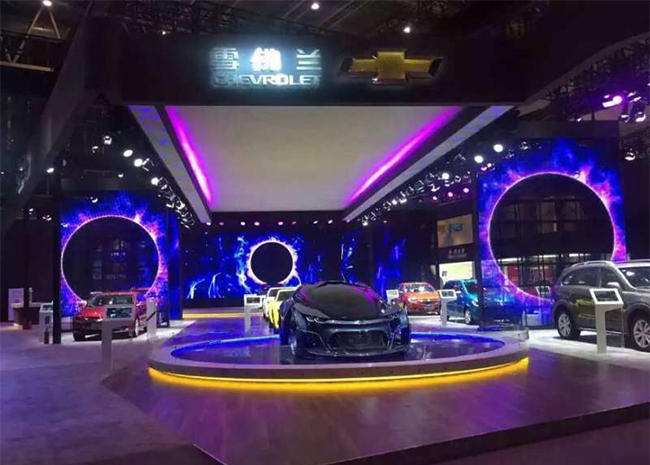

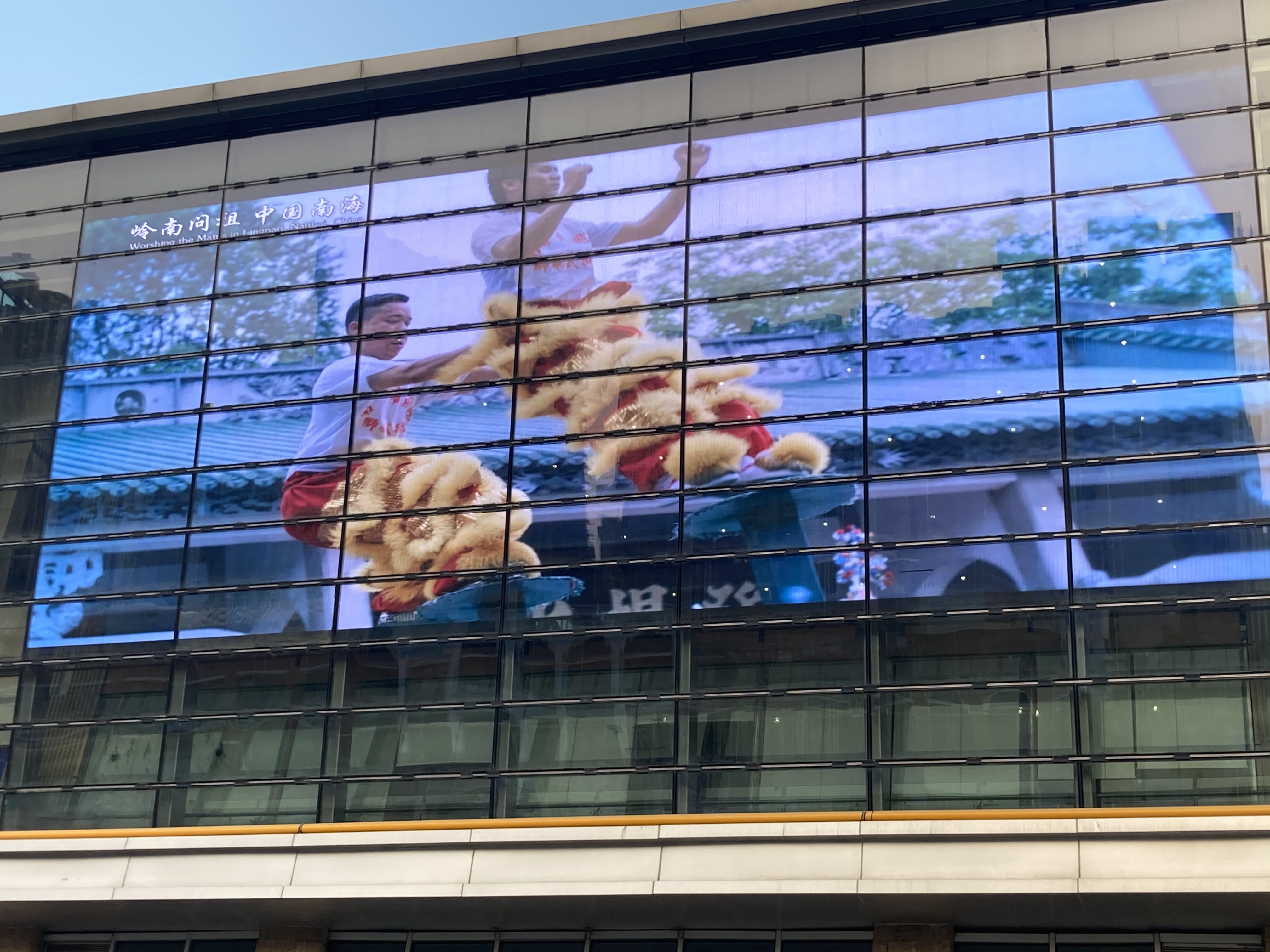

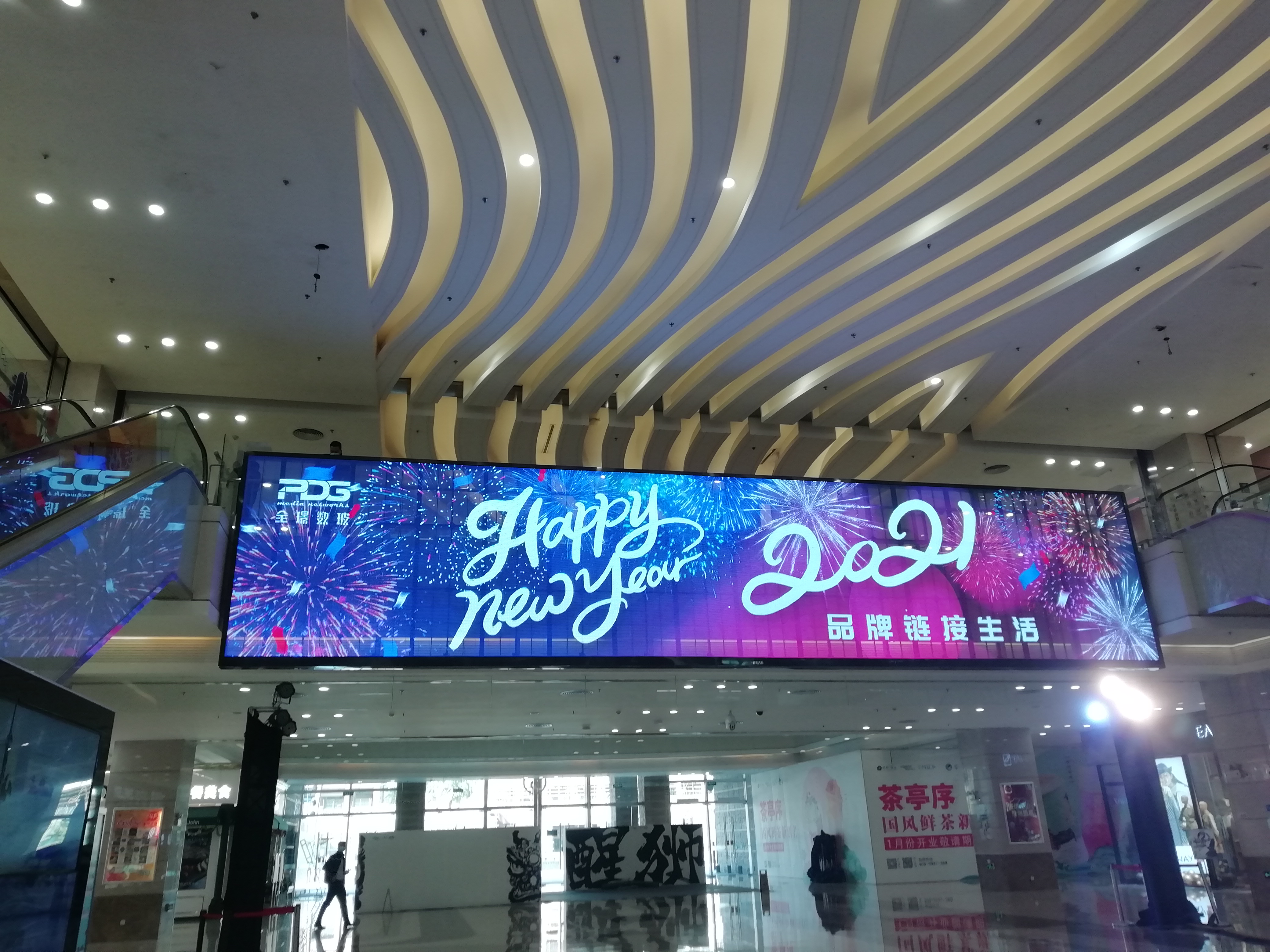

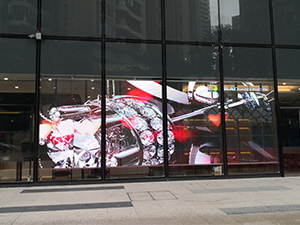

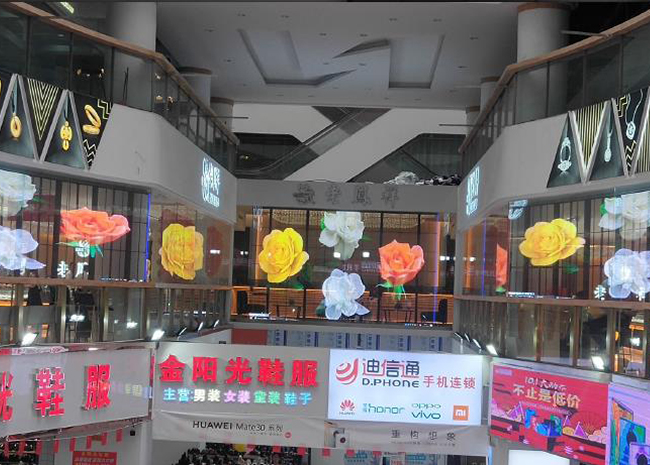

Case Study

/products/transparent-led-screen/
/products/transparent-led-screen/transparent-led-display-transparent-led-screen/
/products/transparent-led-screen/
/products/transparent-led-screen/
/products/transparent-led-screen/transparent-led-display-transparent-led-screen/
/products/transparent-led-screen/
/products/transparent-led-screen/
/products/transparent-led-screen/
