PE100 PN16 SDR11 HDPE Fusion Fittings , HDPE 90 Degree Elbow With Welding Parameters

Short Description:

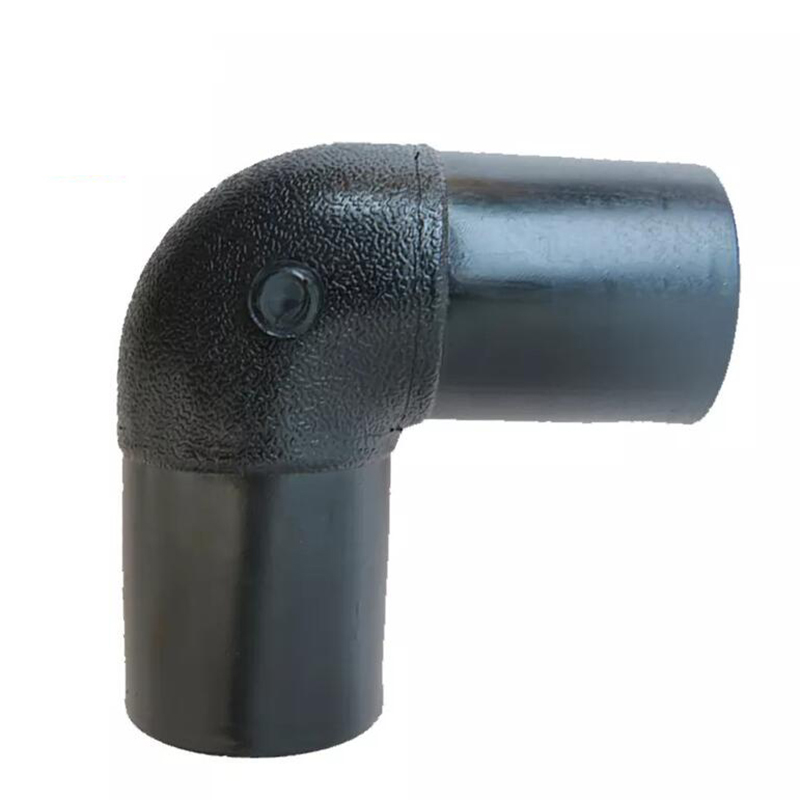

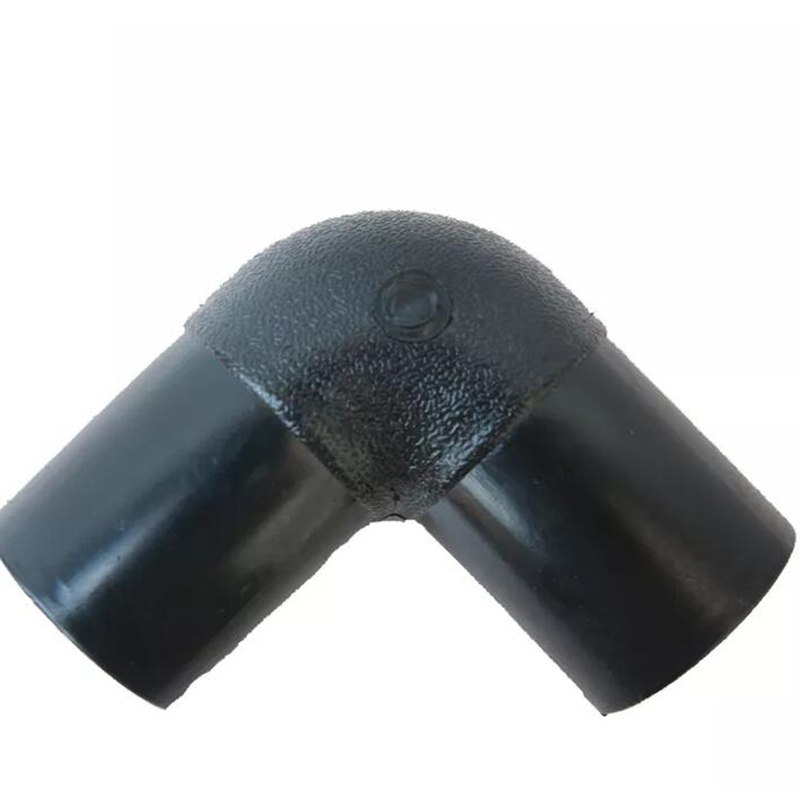

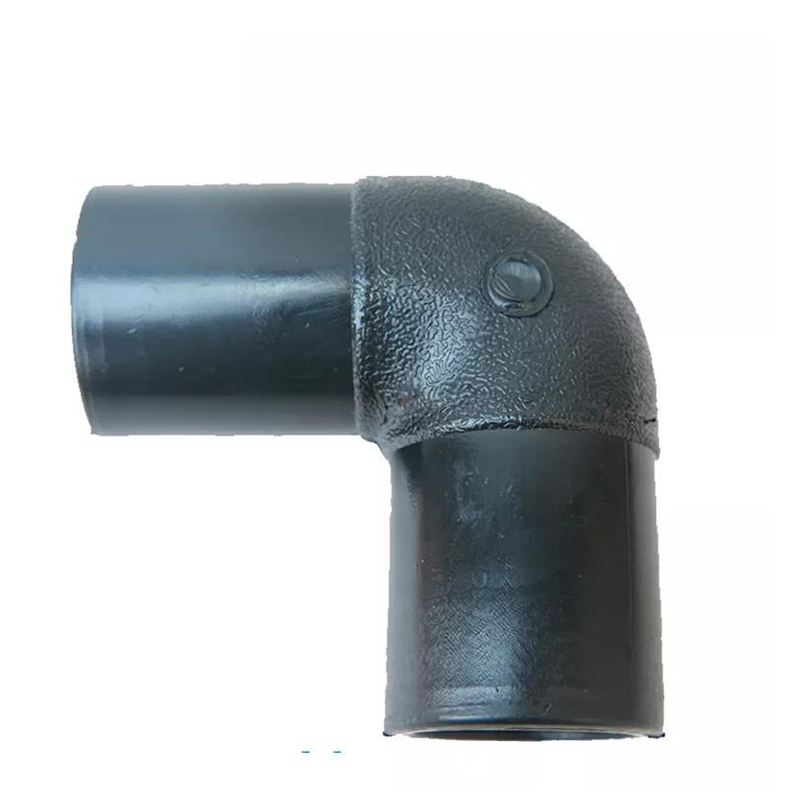

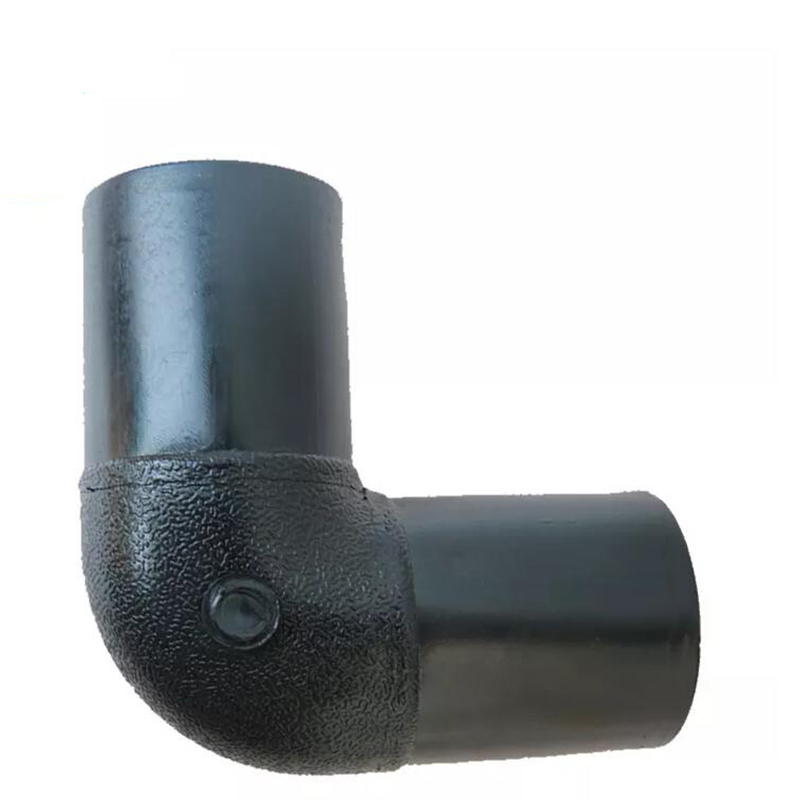

1. Name:  90 degree Elbow

2. Size: dn20-dn630mm

3. PE100 SDR11/Water PN16/Gas 10 Bar

4. PE100 SDR17/Water PN10/ Gas 6 Bar

5. Standard: ISO4427/ISO4437/EN12201/EN1555


Product Detail

Product Tags

Detail Information

a

Product Name:

Standard:

Material:

Material Suppier:

Production Process:

Port:

Butt Welding Pipe Fitting 90 Degree Elbow EN 12201-3:2011,EN 1555-3:2010
PE100 Virgin Raw Material SINOPEC, BASELL, SABIC, BOROUGE Etc
Injection Molding Ningbo,Shanghai Or As Required



Product Description

Hdpe Fusion Fittings 90 Degree Elbow With Welding Parameters PE100 PN16 SDR11
Description ofButtfusion 90 Degree Elbow Fitting

Products name Buttfusion 90 Degree Elbow fitting
Sizes Available 50-630mm
SDR SDR11 SDR17
PN PN16 PN10
Material Brand BOROUGE,SINOPEC, BASELL, SABIC
Executive Standard EN 12201-3:2011,EN 1555-3:2010,ISO
Colors Available Black color , blue color, Orange or as request.
Packing Method Normal export packing. by carton
Production Lead Time Depending on the order quantity.Normally about 15-20 days for 20ft container, 30-40 days for a 40ft container.
Certificate WRAS,ISO, CE,BV,SGS,Factory Test report
Supply Ability 100000 Ton/Year
Payment Method T/T, L/C at sight
Trading Method EXW, FOB, CFR, CIF,DDU

Specification

Specifications

φD×90°

L

MM

A

MM
50×90°
120
55
63×90°
133
63
75×90°
163
70
90×90°
182
79
110×90°
214
82
125×90°
240
87
140×90°
244
88
160×90°
258
80
180×90°
297
97
200×90°
308
97
225×90°
367
115
250×90°
362
100
280×90°
433
130
315×90°
460
125
355×90°
540
150
400×90°
600
180
