China Pelletizing line Manufacturer and Supplier

Pelletizing line

Short Description:

Send email to us

Product Detail

Product Tags

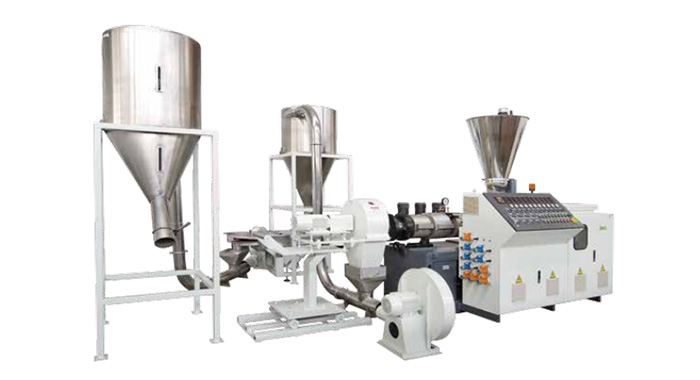

Single screw pelletizing line

This pelletizing machine has special screw design and different configuration, it is suitable for the recycling of PP, PE, PS, ABS, PC, etc. The gearbox is high torque designed which attains the functions of low noise and stable operation. The surface of the screw and barrel have been special treated so that the screw and barrel are wearable, and they have very high mixing efficiency and the production capacity is high. The extruder has the vacuum vented design which can exhaust the vapor or gas during the production, so that the output are more stable and the pellets are more uniform.

Model	Screw Dia.	L/D	Screw Speed	Main Motx Power	Output
JWL45	45	25-35	20-100	11-15	30-50
JWL65	65	25-35	20-100	30-37	60-120
JWL50	90	25-35	20-90	45-55	180-200
JWL120	120	25-35	20-75	75-110	250-350

Model	Screw Dia.	L/D	Screw Speed	Main Motx Power	Output
JWL150	45	25-35	20-75	110-160	350-500
JWL160	65	25-35	20-70	132-185	400-550
JWL180	90	25-35	20-70	200-250	600-800
JWL200	120	25-35	20-60	250-315	800-1100

Counter Rotation Conical Twin-screw Pelletizing Machine

The unit is a complete set of equipment consisting of a series of conical twin-screw extruders and corresponding pelletizing auxiliary machines. It is mainly used for pelletizing of PVC fillers. The produced plastic pellets are uniform, compact and beautiful. The auxiliary machine adopts die face dicing, wind feeding aggregate, vibration separation and cooling, and has the characteristics of high automation and high production efficiency.

Model	Screw Dia	Pellet Size	Main Motor Power	Output
SJZ55	55/110	ø3-ø4	22	100-120
SJZ65	65/132	ø3-ø4	37	220-260
SJZ80	80/156	ø3-ø4	55	320-450
SJZ92	92/188	ø3-ø4	110	650-800

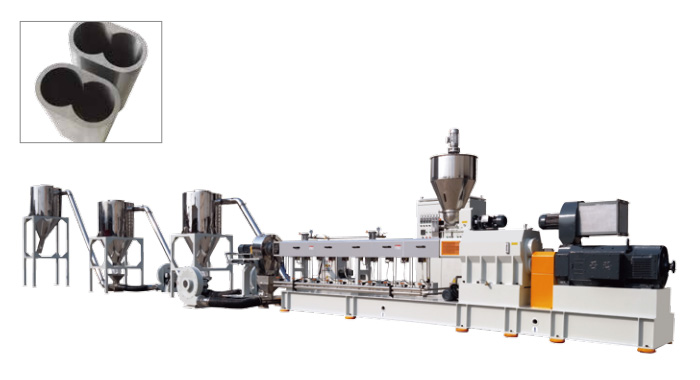

WPC Pelletizing Machine

The unit is a complete set of parallel twin-screw extruder and corresponding pelletizing auxiliary machine are mainly used for granulation of wood powder or filler with raw materials like PVC, PP and PE . The auxiliary machine adopts wind-blowing collecting and cooling system, and has the characteristics of high automation and great production efficiency.
