China PET sheet extrusion line Manufacturer and Supplier

PET sheet extrusion line

Short Description:

Send email to us

Product Detail

Product Tags

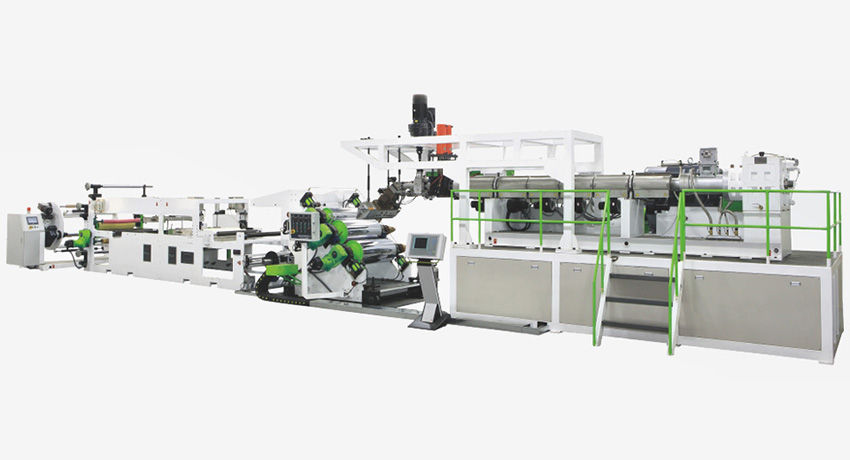

Single screw PET sheet extrusion line

Parameters	Multi layer	Single layer	Highly-efficient
Extruder specification	120/65-1000	120-1000	150-1500
Thickness of the product	0.20-1.5mm	0.20-1.5mm	0.20-1.5mm
Main motor power	110kw/45kw	110kw	160kw
Capacity(Max)	500kg/h	450kg/h	800kg/h

Twin screw Dryer – free Vented PET Sheet Extrusion Line

develops the parallel twin screw extrusion line for PET sheet, this line equipped with degassing system, and no need drying and crystallizing unit. The extrusion line has the properties of low energy consumption, simple production process and easy maintenance. The segmented screw structure can reduce the viscosity loss of PET resin, the symmetrical and thin-wall calender roller improves the cooling effect and improve the capacity and sheet quality. Multi components dosing feeder can control the percentage of virgin material, recycling material and master batch precisely, the sheet is widely used for thermal forming packaging industry.

Parameters	Multi layer	Single layer	85/40-1000
Extruder specification	85/40&36/40-1000	75/40-1000	150-1500
Thickness of the product	0.20-1.5mm	0.15-1.5mm	0.15-1.5mm
Main motor power	110kw/45kw	110kw	160kw
Capacity(Max)	500kg/h	450kg/h	800kg/h

Application

APET, PETG, CPET single-layer or multi-layer sheet extrusion machine
It is one of the most advanced production lines with matured technology and stability in China. Compared with other same kind equipment, it’s over 30% higher in overall efficiency. This line is suitable for PS, PP, PE as well.

PETG sheet
PETG is called low temperature PET, it’s a new environment-friendly packing material with features such as high luster, good transparency, excellent barrier property, self-adhesion, which is used for glue bonding and high-frequency processing.

CPET sheet
CPET is a kind of modified PET, with good resistance to high temperature, It is usually used for package in microwave oven.

PET stereoscopic optical grating sheet
It can be used as top grade package for cosmetics, medicine, tobacco & alcohol and common goods such as stationery, advertisements, posters and all kinds of cards.

PLA sheet
PLA is a kind of line shape Aliphatic Polyesters. PLA can be used in rigid package of fruits, vegetables, eggs, cooked food and roast food, also can be usedfor packaging of sandwich, biscuit and some other packages like fresh flower.

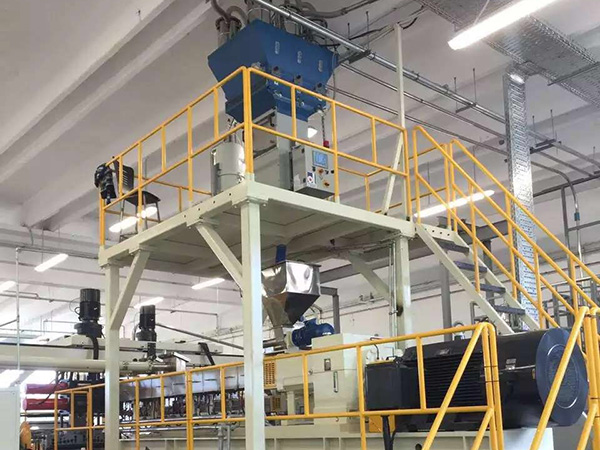

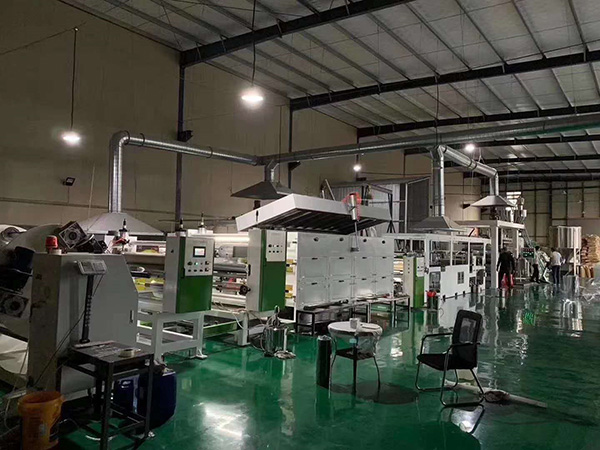

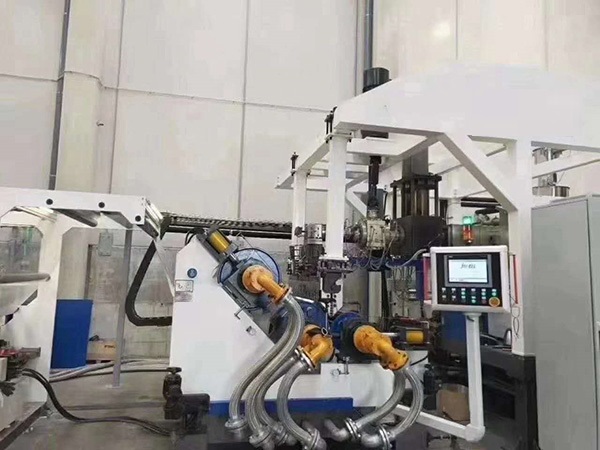

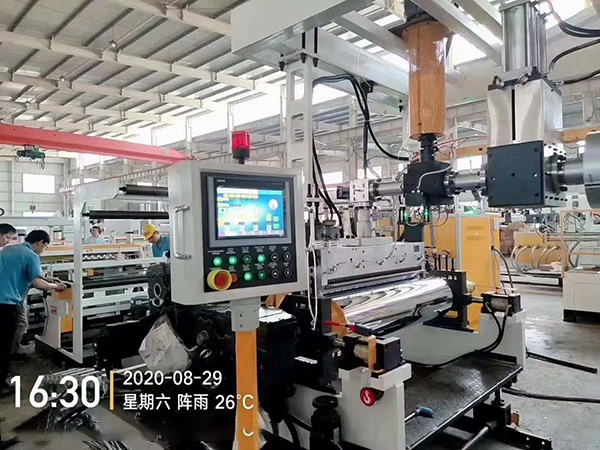

Customer reference
