HDPE/PPR/PP Solid Wall Pipe Extrusion Line

Performance & Advantages
Our company’s latest research and development of energy-saving high-speed production line, suitable for high-speed polyolefin pipe extrusion. 35% energy saving and 1x increase in production efficiency.
Specifically designed 38-40 L/D screw structure and the feeding slot barrel make the melt extrusion and plasticizing effects greatly improved. High-torque, high-strength gearboxes ensure stable operation of the equipment.
Extrusion molds and sizing sleeves adopt the most advanced design structure. The PLC variable frequency control vacuum tank, servo-driven multi-track tractor, and high-speed chipless cutter are equipped with a meter weight control system. The
pipe extrusion weight is more accurate.

Main technical parameters

Model

Pipe Spec (mm)

Extruder

Main Power(kw)

Output (kg/h)

JWPEG-H63

ø16-ø63

JWS-H 60/40

90

400

JWPEG-H110

ø20-ø110

JWS-H 60/40

110

450

JWPEG-H160

ø50-ø160

JWS-H 75/38

132

500

JWPEG-H250

ø75-ø250

JWS-H 75/38

132

550

JWPEG-H315

ø110-ø315

JWS-H 75/38

160

650

JWPEG-H450

ø160-ø450

JWS-H 90/38

250

950

JWPEG-H630

ø315-ø630

JWS-H 90/38

280

1050

UPVC/CPVC Pipe Extrusion Line

Performance & Advantages
A variety of specifications and models of PVC twin-screw extruder can produce pipes of different diameters and different wall thicknesses.
Specially designed screw structure with uniform plasticization and high output. Extrusion molds made of high quality alloy steel, internal flow channel chrome plating, polishing treatment, wear and corrosion resistance; with a dedicated high-speed sizing sleeve, pipe surface quality is good; The special cutter for PVC pipe adopts a rotating clamping device, which does not require replacing the fixture with different pipe diameters. With chamfering device, cutting, chamfering, one-step molding. Support optional online belling machine.

Main technical parameter

Type

Pipe Spec(mm)

Extruder



Main Power(kw)

Output(kg/h)

JWG-PVC63

ø16-ø63

SJZ65/132

37

250~300

JWG-PVC110

ø20-ø110

SJZ65/132

37

250~300

JWG-PVC160

ø50-ø160

SJZ65/132

37

250~350

JWG-PVC250

ø75-ø250

SJZ80/156

55

300~450

JWG-PVC400

ø200-ø400

SJZ80/173

75

450~600

JWG-PVC500

ø250-ø500

SJZ80/173

75

450~600

JWG-PVC630

ø315-ø630

SJZ92/188

110

650~750

JWG-PVC800

ø400-ø800

SJZ95/192 or SJP135/31

132

850-1000

JWG-PVC1000

ø630-ø1000

SJZ110/220 or SJP135/31

160

1100~1200

JWG-PVC1200

ø800-ø1200

SJZ110/220 or SJP 135/31

160

1100~1200

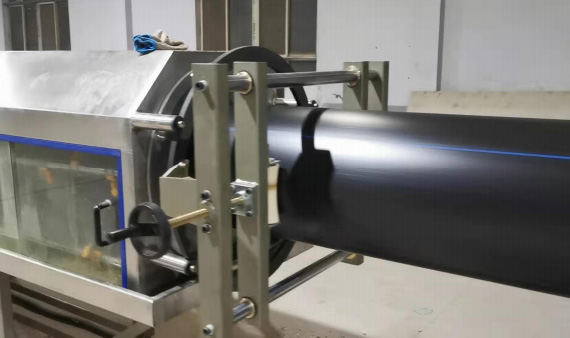

Pipe Line6

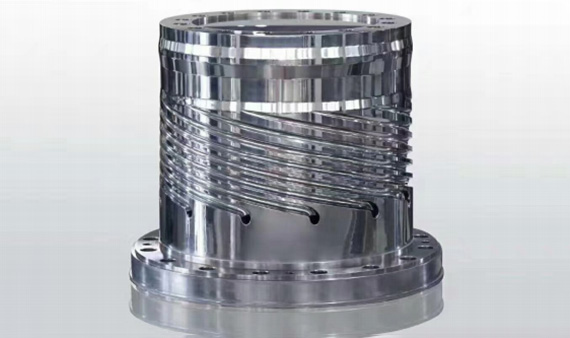

Pipe Line7

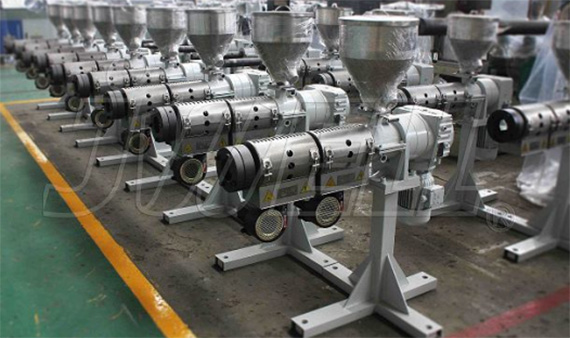

Pipe Line8
