China pneumatic AC Series FRL unit air source treatment combination air filter pressure regulator with lubricator Manufacturer and Supplier

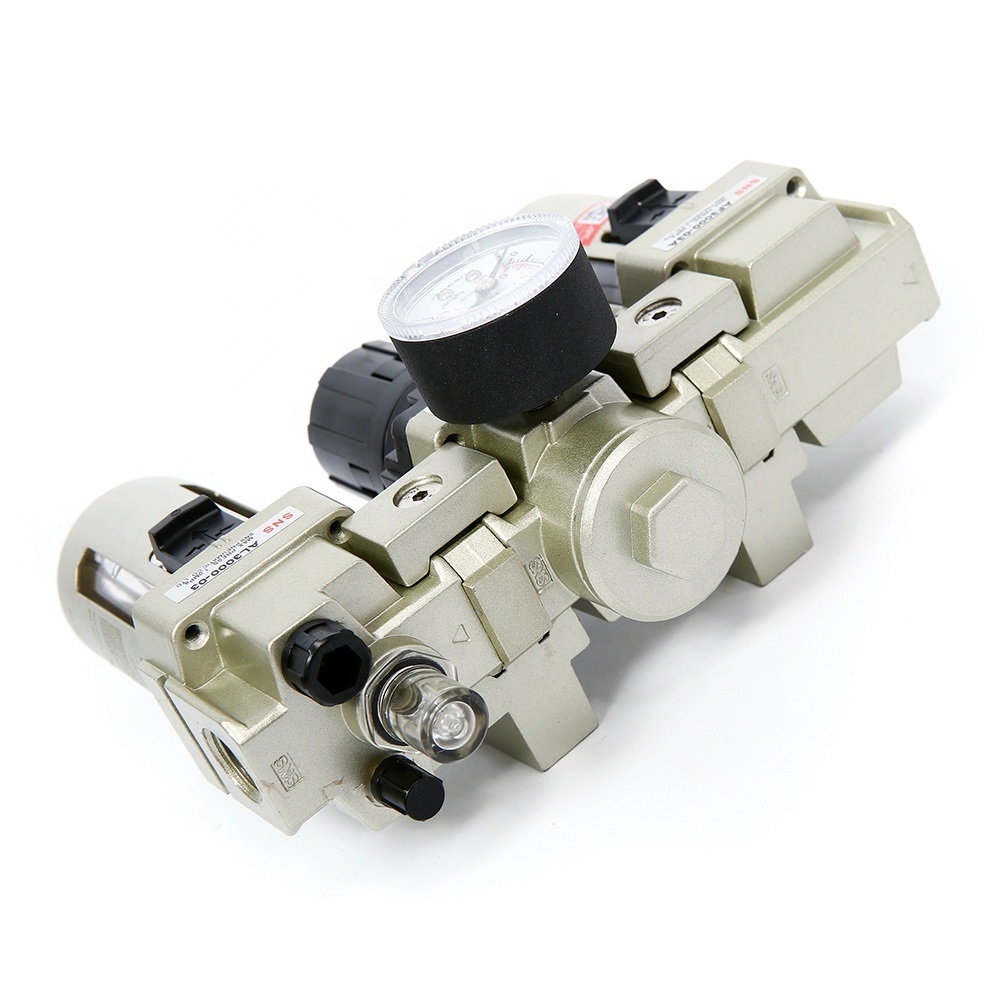

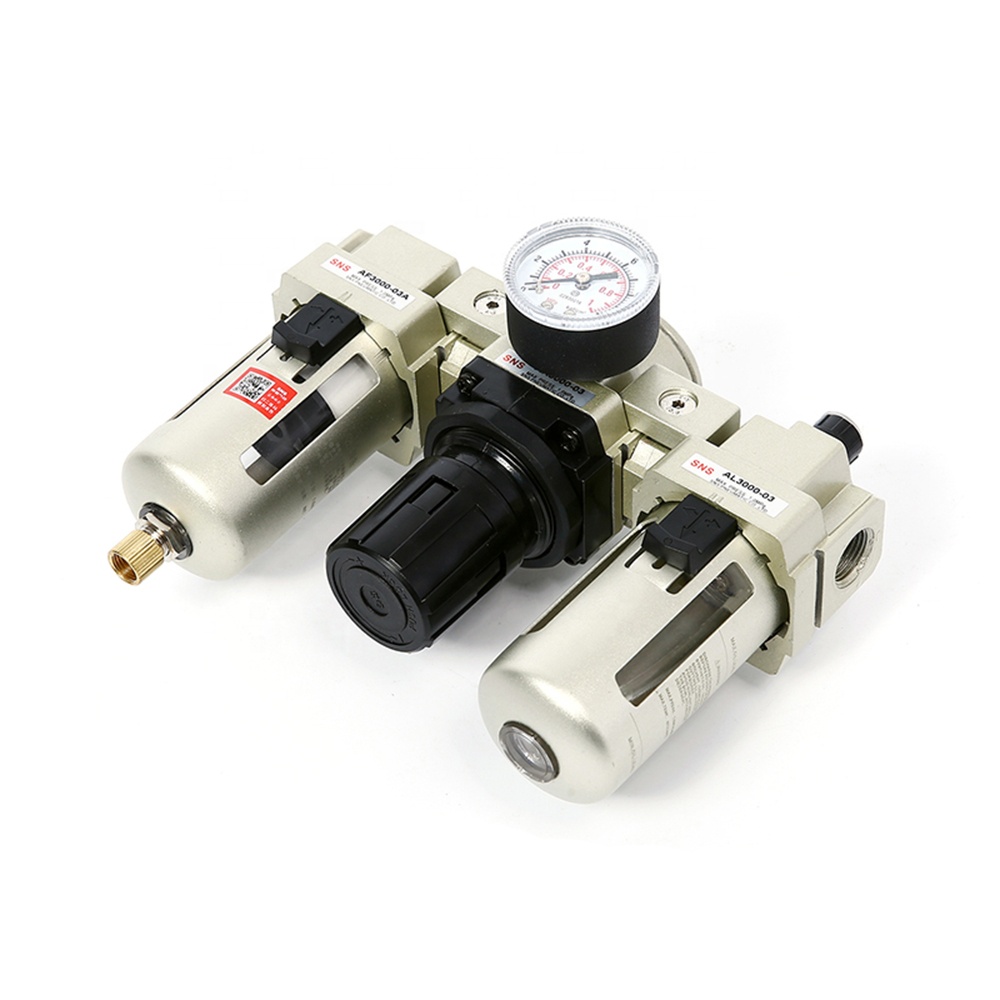

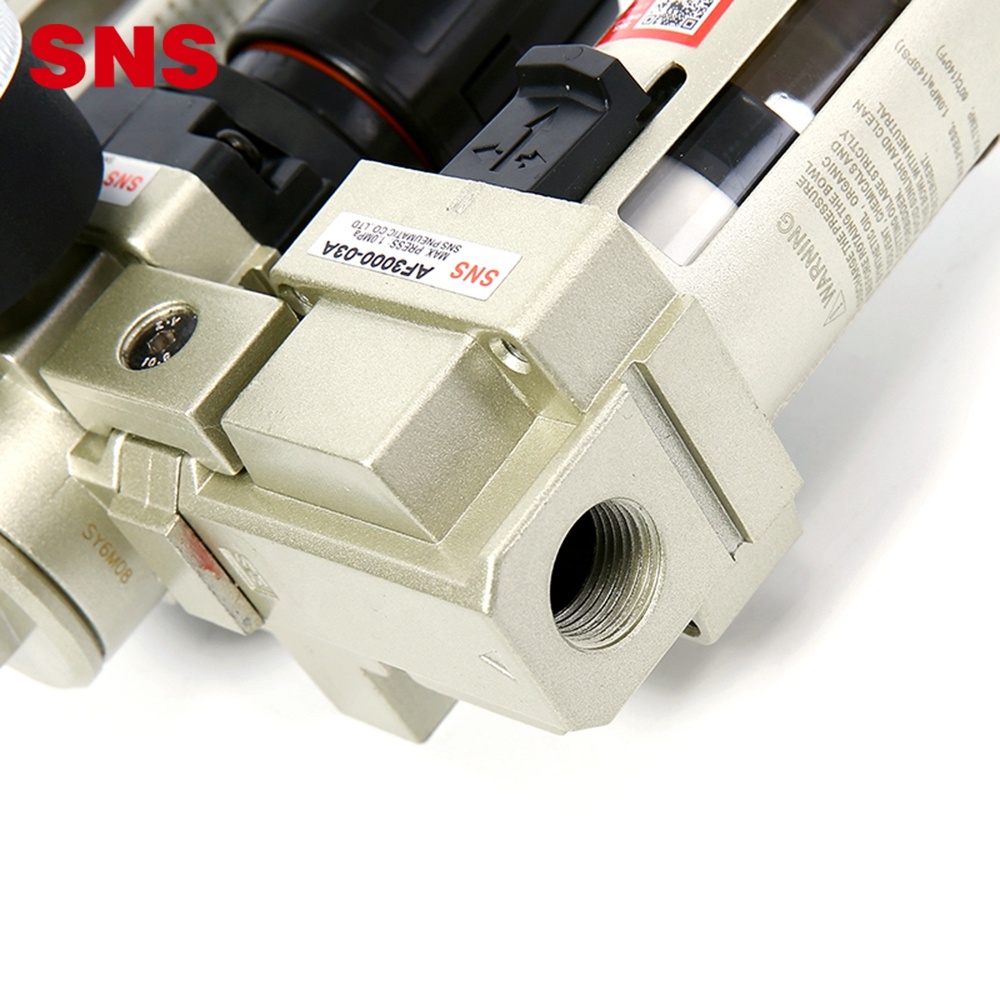

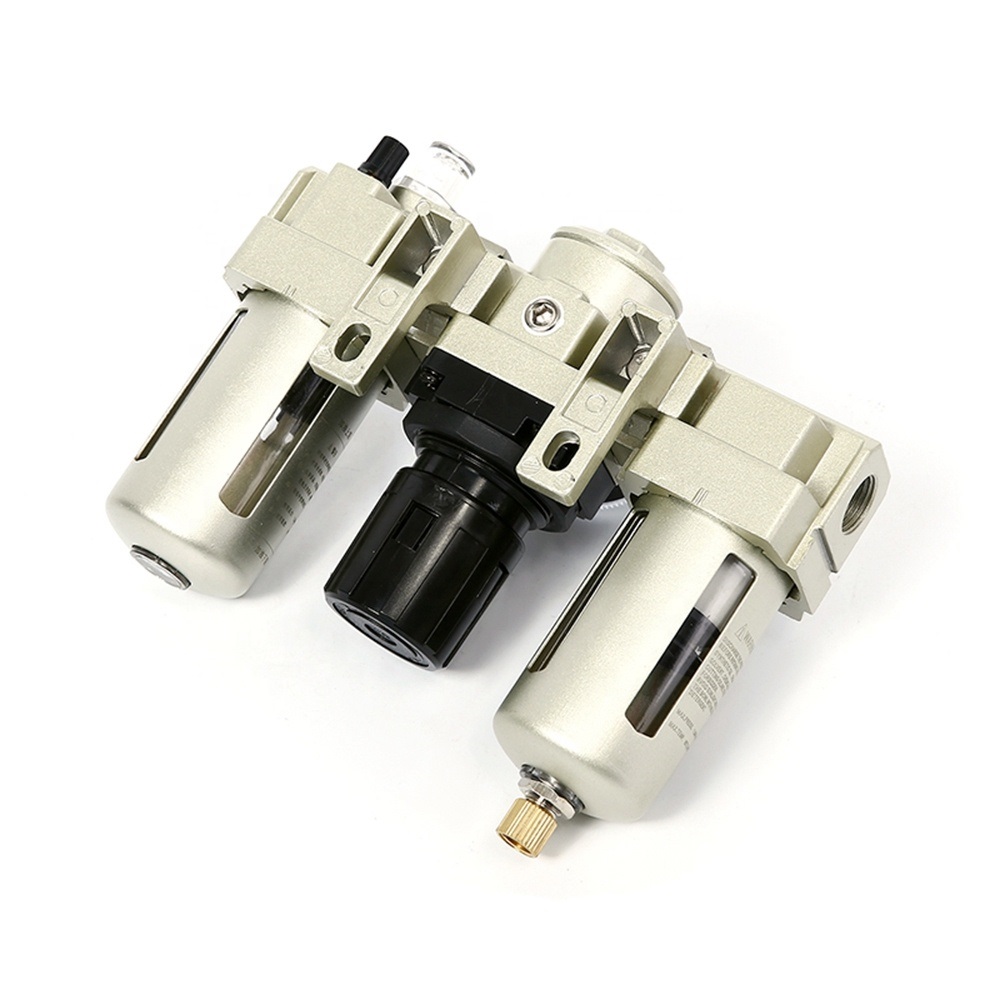

pneumatic AC Series FRL unit air source treatment combination air filter pressure regulator with lubricator

Short Description:

1,The working medium of gas source processor should use clean and dry compressed air, and the air in the piping should be fully blown to prevent impurities from bringing into the system and causing bad action of cylinders and valves. The fuel mist in the piping system should be lubricated.2,After the air source processor maintains the normal operation of the system, it is necessary to check the working conditions of air filters and oil mists regularly, and to discharge and refuel water in time.3,Often check the operation of various pneumatic components, check whether the fastening bolts are loose? Is there any damage or leakage in the seal of the element?4,When maintaining, it is necessary to shut down the gas source beforehand and empty the compressed air in the pipeline system before carrying out maintenance work.5,Components must be cleaned when repairing and reassembling, and impurities must not be brought into the system.

Send email to us

Product Detail

Product Tags

Model		AC1000-M5	AC2000-01	AC2000-02	AC2500-02	AC2500-03	AC3000-02	AC3000-03
Module	Filter	AF1000	AF2000	AF2000	AF2500	AF2500	AF3000	AF3000
	Regulator	AR1000	AR2000	AR2000	AR2500	AR2500	AR3000	AR3000
	Lubricator	AL1000	AL2000	AL2000	AL2500	AL2500	AL3000	AL3000
Port Size		M5×0.8	PT1/8	PT1/4	PT1/4	PT3/8	PT1/4	PT3/8
Pressure Gauge Port Size		M5×0.8	PT1/8	PT1/8	PT1/8	PT1/8	PT1/8	PT1/8
Rated Flow(L/Min)		90	500	500	1500	1500	2000	2000
Working Media		Compressed Air
Proof Pressure		1.5Mpa
Range of Regulation		0.05~0.7Mpa	0.05~0.85Mpa
Ambient Temperature		5~60℃
Filter Precision		40 μ m(Normal)or 5 μ m(Customized)
Suggested Lubricating Oil		Turbine NO.1 Oil(ISO VG32)
Bracket(two)		Y10L	Y20L		Y30L
Pressure Gauge		Y25-M5	Y40-01
Material	Body Material	Aluminum Alloy
	Cup Material	PC
	Cup Cover	AC1000~AC2000:without AC2500~AC5000:with(Iron)

Model		AC4000-03	AC4000-04	AC4000-06	AC5000-06	AC5000-10
Module	Filter Regulator	AF4000	AF4000	AF4000	AF5000	AF5000
	Regulator	AR4000	AR4000	AR4000	AR5000	AR5000
	Lubricator	AL4000	AL4000	AL4000	AL5000	AL5000
Port Size		PT3/8	PT1/2	G3/4	G3/4	G1
Pressure Gauge Port Size		PT1/4	PT1/4	PT1/4	PT1/4	PT1/4
Rated Flow(L/Min)		4000	4000	4500	5000	5000
Working Media		Compressed Air
Proof Pressure		1.5Mpa
Range of Regulation		0.05~0.85Mpa
Ambient Temperature		5~60℃
Filter Precision		40 μ m(Normal)or 5 μ m(Customized)
Suggested Lubricating Oil		Turbine NO.1 Oil(ISO VG32)
Bracket(one)		Y40L		Y50L	Y60L
Pressure Gauge		Y50-02
Material	Body Material	Aluminum Alloy
	Cup Material	PC
	Cup Cover	AC1000~AC2000:without AC2500~AC5000:with(Iron)

Note:Rated flow should be under the pressure of 0.7Mpa.

src=

Model	Port Size	A	B	C	D	E	F	G	H	J	K	L	M	N	P
AC1000	M5×0.8	91	84.5	25.5	25	26	25	33	20	4.5	7.5	5	17.5	16	38.5
AC2000	PT1/8,PT1/4	140	125	38	40	56.8	30	50	24	5.5	8.5	5	22	23	50
AC2500	PT1/4,PT3/8	181	156.5	38	53	60.8	41	64	35	7	11	7	34.2	26	70.5
AC3000	PT1/4,PT3/8	181	156.5	38	53	60.8	41	64	35	7	11	7	34.2	26	70.5
AC4000	PT3/8,PT1/2	283	191.5	41	70	65.5	50	84	40	9	13	7	42.2	33	88
AC4000-06	G3/4	253	193	40.5	70	69.5	50	89	40	9	13	7	46.2	36	88
AC5000	G3/4,G1	300	271.5	48	90	75.5	70	105	50	12	16	10	55.2	40	115
