Porcelain Furnace

Short Description:

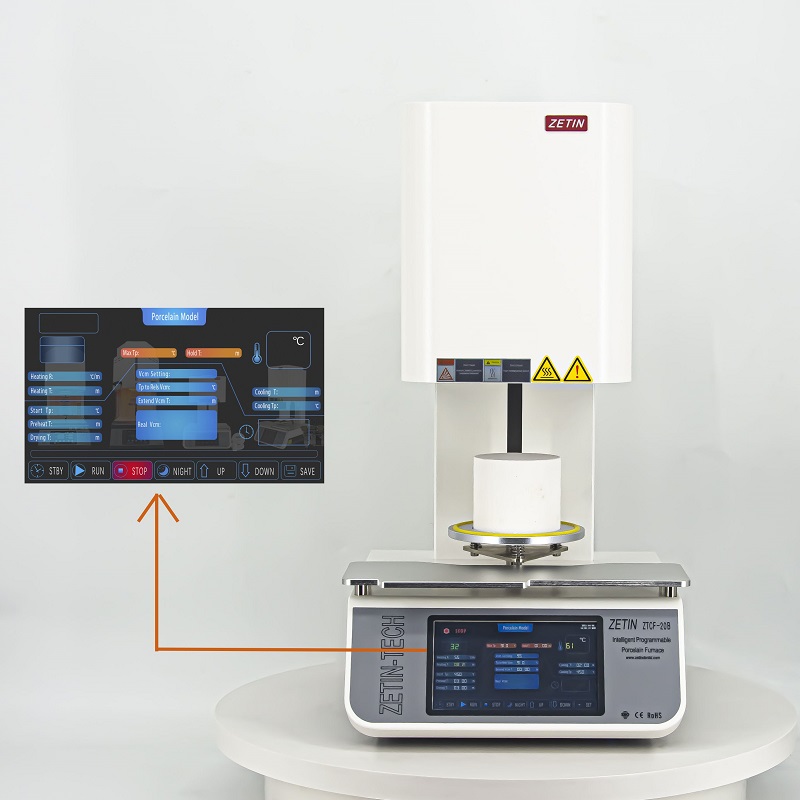

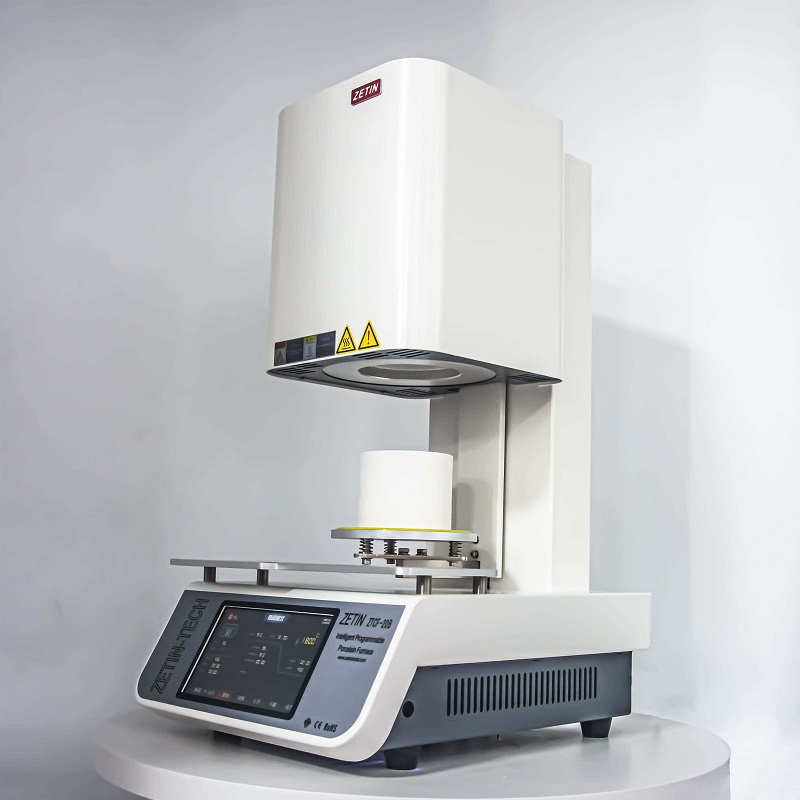

Zetin Porcelain/Ceramic Furnace with Vacuum Pump

ZTCF-20B

  • Min.Order Quantity: 1 Set
  • Manufacture : Zetin Factory Directly Sale
  • Certification: CE / ISO 9001
  • Application: Lab Heating Test Equipment
  • Warranty : 1 Year
  • Brand : Zetin China
  • Payment Methods: 100% TT
  • Consult Line : 0086 18538256129

  • Product Detail

    Product Tags

    Video

    Description

    Zetin Porcelain Furnace’s temperature control is accurate, the internal temperature of the furnace is uniform, the automatic lifting tray design has good sealing performance, and it is equipped with a low-noise oil-less vacuum pump. Zetin Porcelain Furnace is suitable for all kinds of ceramic powder on the market, such as IVOCLAR, VITA, NORITAKE, etc.

    Technical Parameters

    Max.Temperature 1300℃
    Max.Vacuum -98 Kpa
    Heating wire Long lifetime heating wire
    Heating rate ≤140℃/min
    Temperature control accuracy ±1℃
    Maximum Power Consumption 1600 W
    Power supply 220 V  50/60 HZ
    Chamber Size Ø 100 mm×70 mm
    Number of program memories 100 programs (Can extend to 500 programs )
    Size (L*W*H) 380*320*610 mm3
    Net weight 23 KG

    Features

    ◑ Equipped with a heating wire with a long service life, and the heating is even and no pollution;

    ◑  Has Stored IVOCLAR,VITA and NORITAKE ceramic powder programs, operator can according brand of ceramic powder to choose the program;

    ◑  PID intelligent temperature control system ensures the high temperature control accuracy. The temperature error at ±1℃; ;

    ◑  Equipped with high sensitive sensor ensures vacuum measurement accurate ;

    ◑  Equipped with low-noise oil-free vacuum pump, has great vacuum value, almost don’t need to service;

    ◑  Large-size and touch screen display all the date ;

    ◑  Unique vacuum pipeline filter design ensures the long life of internal electrical components;

    ◑  New environmental thermal insulation material with good thermal insulation performance ensures a stable chamber temperature.
