China PP and PVC Material Tube Settler Media Manufacturer and Supplier

PP and PVC Material Tube Settler Media

Short Description:

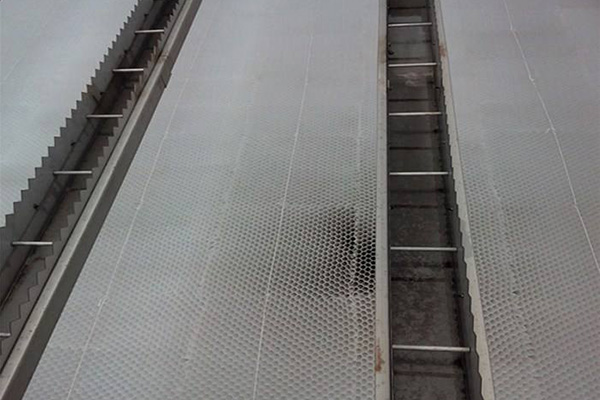

The tube settler media is very suitable in all different clarifiers and removing sand. It is regarded as universal water treatment equipment in water supply and drainage engineering. It has wide application, high handling efficiency, small area, etc. It is suitable in removing sand in inlet, industry and drinking water precipitation, separation in oil & water. The modular and cubical self-supporting settler design of Honeycombed Inclined Tube Settler aids handling during installation and any subsequent maintenance.

Send email to us

Product Detail

Product Tags

Product Description

The tube settler media is very suitable in all different clarifiers and removing sand. It is regarded as universal water treatment equipment in water supply and drainage engineering. It has wide

application, high handling efficiency, small area, etc. It is suitable in removing sand in inlet, industry and drinking water precipitation, separation in oil & water. The modular and cubical self-supporting settler design of Honeycombed Inclined Tube Settler aids handling during installation and any subsequent maintenance.

The design of tube settler media avoids thin wall membrane sand utilizes forming techniques to minimize component stress and subsequent environmental stress cracking fatigue.

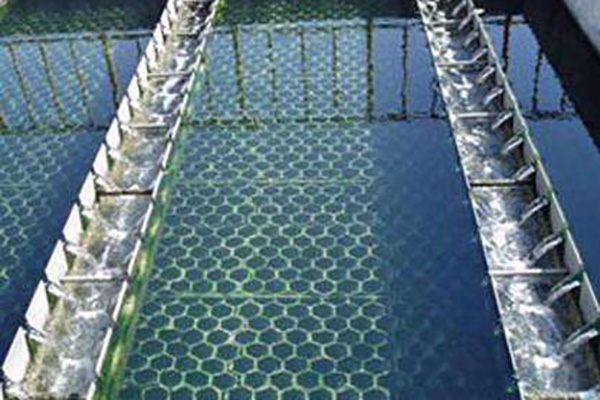

Tube settler media offers an inexpensive method of upgrading existing water treatment plant
clarifiers and sedimentation basins to improve performance. They can also reduce the tank
age/footprint required innew installations or improve the performance of existing settling basins by reducing the solids loading on downstream filters.

Product Features

1.Handles wide range of hydraulic loading rates
2.Robustness
3.Random dumping
4.High durability
5.Precise dimension
Extremely easy to install

Typical Applications

1.Sugar Industry
2.Paper Mills
3.Pharmaceutical Industry
4.Distillery
5.Dairy Industry
6.Chemical/Petroleum Industry

Packing and Delivery

Technical Parameters

Material	Aperture(mm)	Thickness(mm)	Pieces	Color

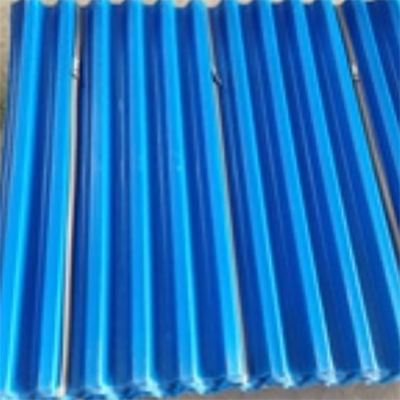

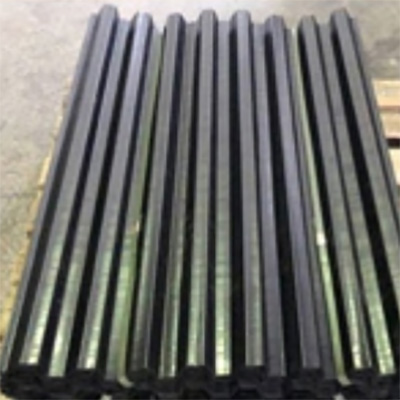

PVC	ø30	0.4	50	Blue/Black
		0.6
		0.8
		1
	ø35	0.4	44
		0.6
		0.8
		1
	ø40	0.4	40
		0.6
		0.8
		1
	ø50	0.4	32
		0.6
		0.8
		1
	ø80	0.4	20
		0.6
		0.8
		1

Material	Aperture(mm)	Thickness(mm)	Pieces	Color
PP	ø25	0.4	60	White
		0.6
		0.8
		1
		1.2
	ø30	0.4	50
		0.6
		0.8
		1
		1.2
	ø35	0.4	44
		0.6
		0.8
		1
		1.2
	ø40	0.4	40
		0.6
		0.8
		1
		1.2
	ø50	0.4	32
		0.6
		0.8
		1
		1.2
	ø80	0.4	20
		0.6
		0.8
		1
		1.2
