PTFE Glyd Ring Rod Seal With ring
Product Description

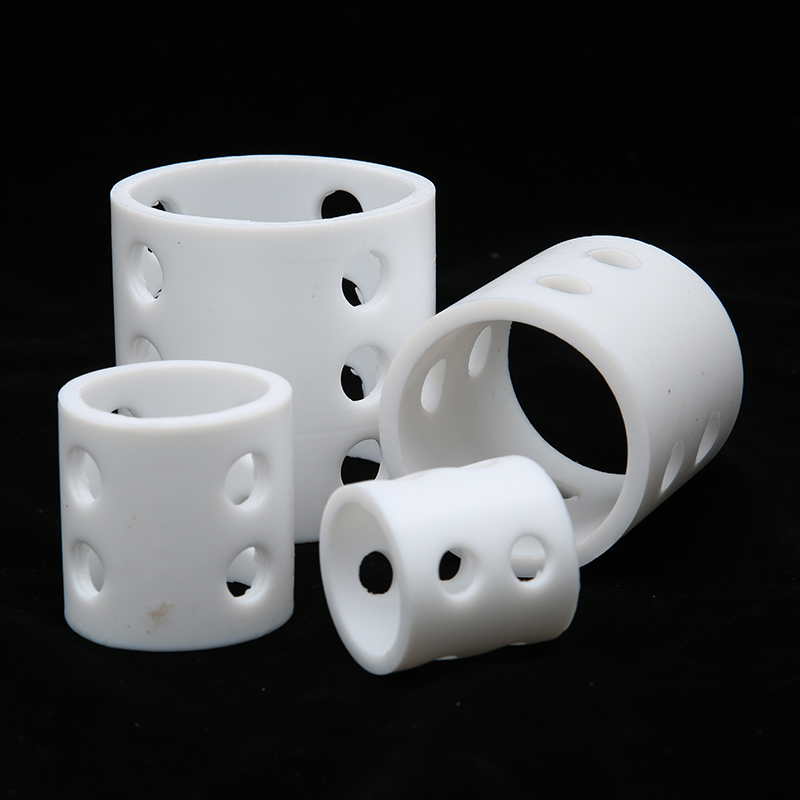

The PTFE cascade ring with height-diameter ratio of 1:2 is improved on the basis of short Raschig ring and Pall ring, and is designed with a tapered flange at one end to reduce the resistance of gas flowing through the bed, Increase throughput and filler strength.
Make the gas-liquid distribution uniform, increase the gas-liquid contact area, and improve the mass transfer efficiency.
Basic Info
| S.N | Specificationmm | CapacityKg/m | Packing number n/m3 | Specific surface area (m2/m3) | Void ratio(%) |
| 1 | 20×20×2 | 522 | 110000 | 267 | 92.8 |
| 2 | 25×25×2 | 450 | 56000 | 219 | 93.4 |
| 3 | 38×38×2.5/3 | 320/360 | 140000 | 165 | 94.6 |
| 4 | 50×50×2.5/3 | 260/300 | 6500 | 113.5 | 94.9 |
| 5 | 65×65×4/5 | 330/500 | 4600 | 84 | 94.8 |
| 6 | 76×76×4/5 | 270/330 | 1850 | 73 | 92.0 |
Feature
1、High separation rate – high throughput, low resistance, high separation efficiency and operational flexibility
2、Low temperature resistance – maintains 5% elongation even when the temperature drops to -196°C
3、Corrosion Resistant – Inert to most chemicals and solvents, resistant to acids, bases, water and organic solvents
4、Weatherability – the best aging life in plastics
5、Harmless – non-toxic to biology
Application
Contact packing gas of reaction towers such as petroleum, chemical, chlor-alkali, coal and other medium and low temperature (60-150 ° C) stripping, absorption, washing towers, CO2 degassing towers, ozone contact reaction towers and other reaction towers and environmental protection industries.
