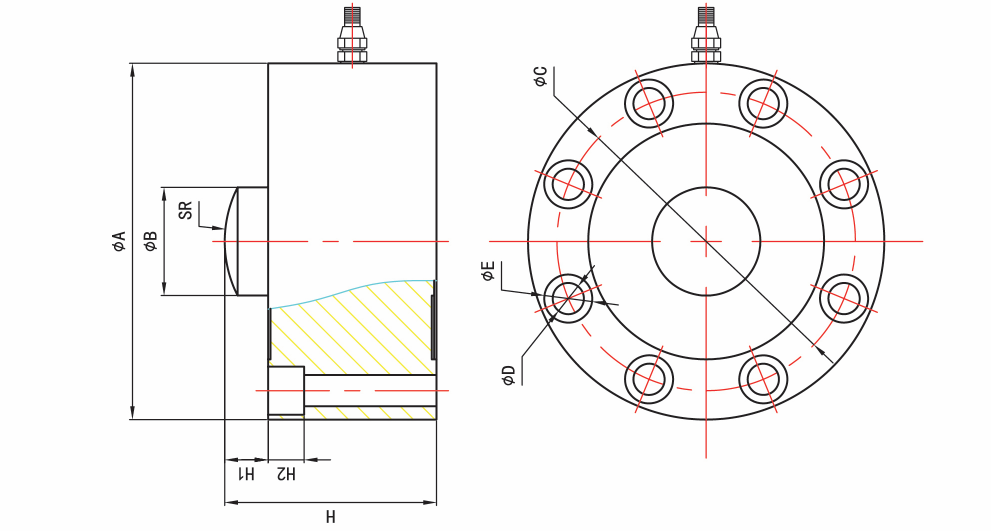

RC-27 Spoke load cell(huge capacity)
Profile: Spoke load cell has low height, high accuracy, and strong anti-eccentric load capacity. It is widely used in belt scales, hopper scales, storage scales, tanks, material mechanics testing machines and industrial automation control systems.
Technical Parameter
|
Sensitivity |
2.0±0.05mV/V |
|
Nonlinear |
±0.05≤%F.S |
|
Hsteresis |
±0.05≤%F.S |
|
repeatability |
0.05≤%F.S |
|
Creep |
±0.05≤%F.S/30min |
|
Zero output |
±1≤%F.S |
|
Zero temperature coefficient |
+0.05≤%F.S/10℃ |
|
Sensitivity temperature coefficient |
+0.05≤%F.S/10℃ |
|
Operating temperature range |
-20℃~ +80℃ |
|
Input resistance |
750±20Ω |
|
Output resistance |
700±5Ω |
|
Safe overload |
150≤%RO |
|
Insulation resistance |
≥5000MΩ(50VDC) |
|
Reference excitation voltage |
5V-12V |
|
Method of connecting wire |
Red-INPUT(+) Black- INPUT(- ) Green-OUTPUT(+)White-OUTPUT( – ) |
