RC-30 Column type load cell

Short Description:

The sensor is suitable for cement, platform scales and other industrial automated measurement systems for weight measurement. Strong comprehensive stability and good structural sealing.


Product Detail

Product Tags

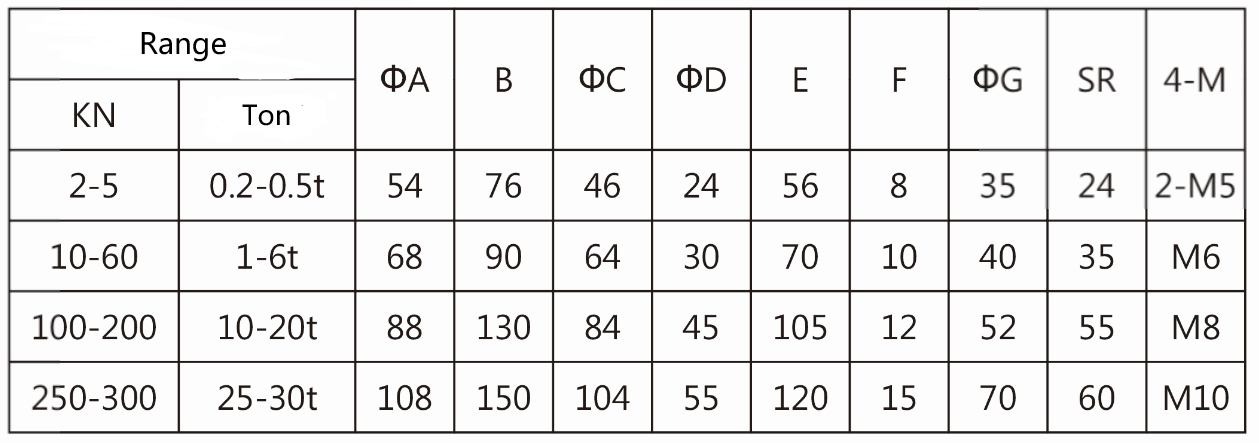

RC-30-2

Technical Parameter

Sensitivity 1.5 ~ 2.0+0.05mV/V
Nonlinear ±0.05≤%F.S
Hsteresis ±0.03≤%F.S
Repeatability 0.05≤%F.S
Creep ±0.03≤%F.S/30min
Zero output ±1≤%F.S
Zero temperature coefficient ±0.05≤%F-S/10℃
Sensitivity temperature coefficient ±0.05≤%F.S/10℃
Operating temperature range -20℃~ +80℃
Input resistance 350±20Ω
Output resistance 350+5Ω
Safe overload 150≤%RO
Insulation resistance ≥5000MΩ(50VDC) .
Reference excitation voltage 5V-12V
Method of connecting wire Red-INPUT(+) Black- INPUT(- )Green-OUTPUT(+) White-OUTPUT( – )

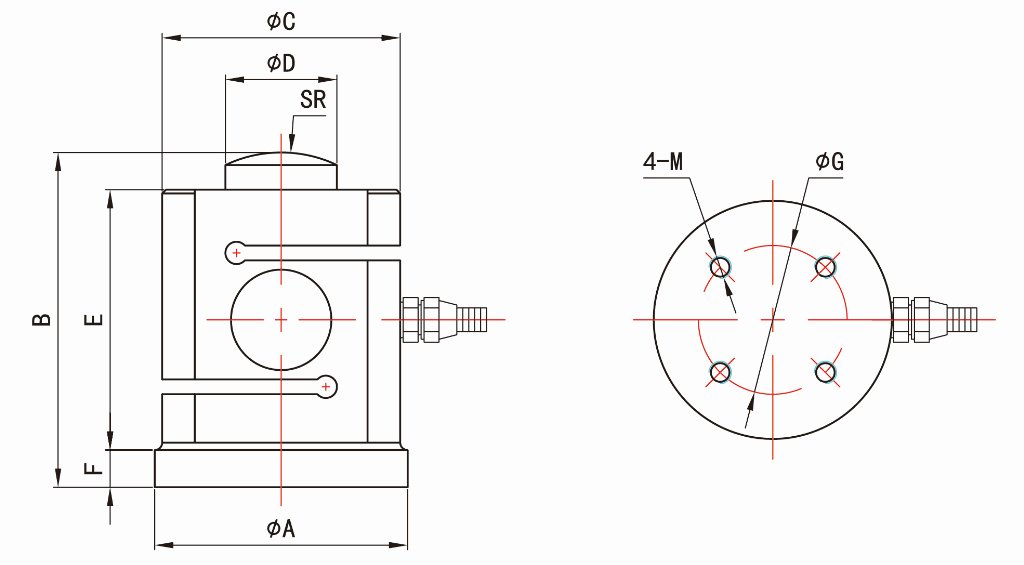

RC-30
