As a perfect solution for doctors in Anesthesia, ICU, Operation Room, Emergency Rescue to handle all kinds of airway management problems.
1. Clinical endotracheal intubation.
2. Simulation practice.
3. Clinical teaching.
4. Difficult airway intubation.
1.Photography, Video Record, USB Built in rechargeable battery, indoor/outdoor mode adjustable, 3 inch Touch screen monitor, fast and simple opteration.
2.Smart Anti – fog Technology. Smart heading chip. ensure instant Anti – fog by temperature control, start and work no need preheating

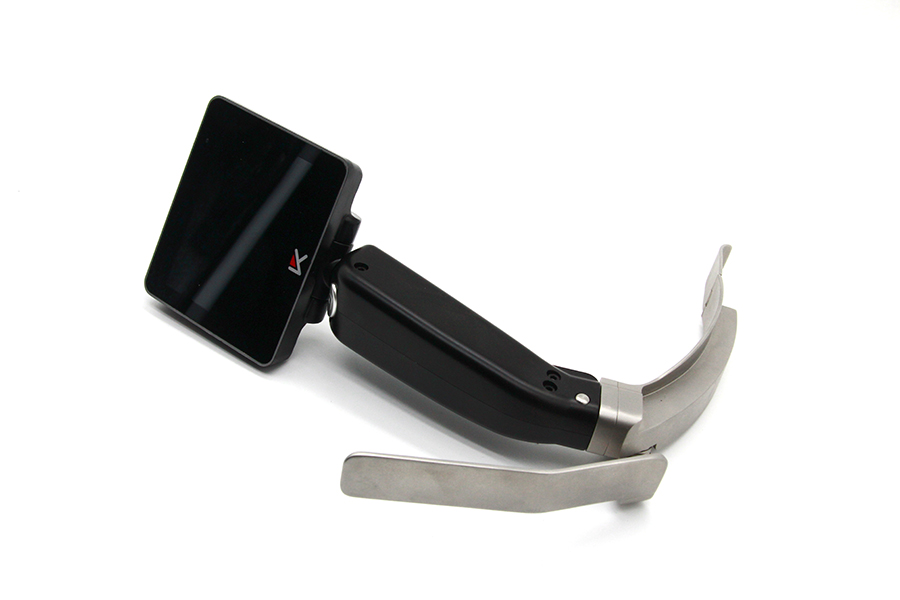

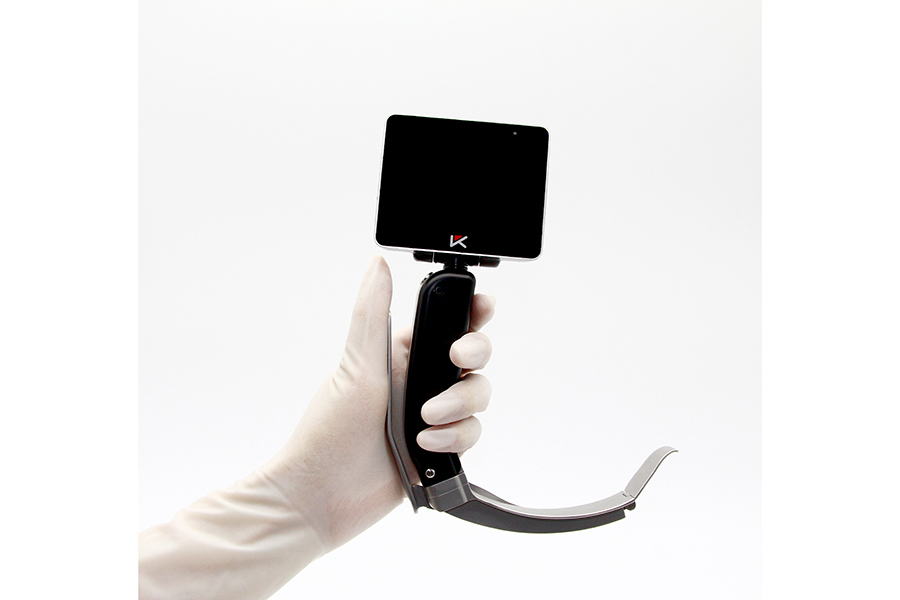

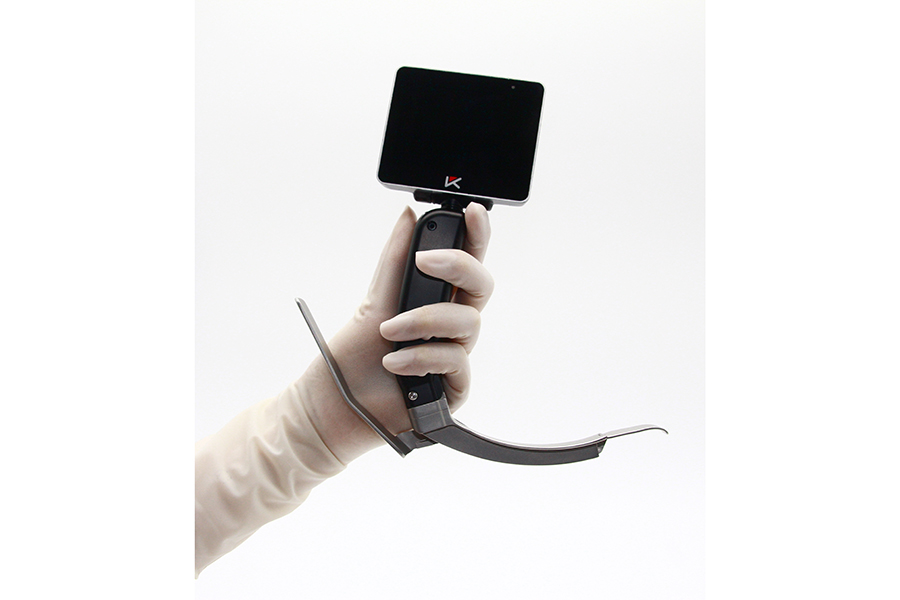

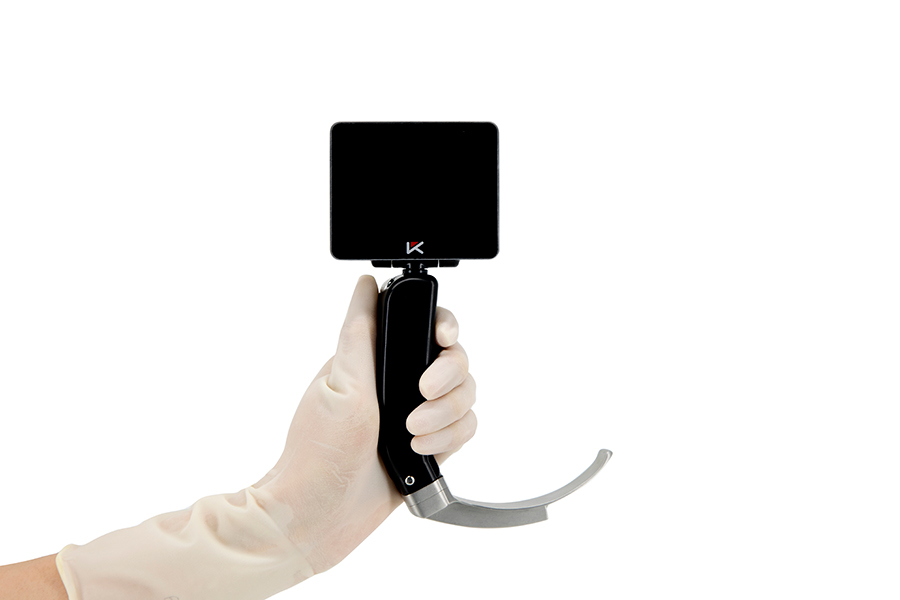

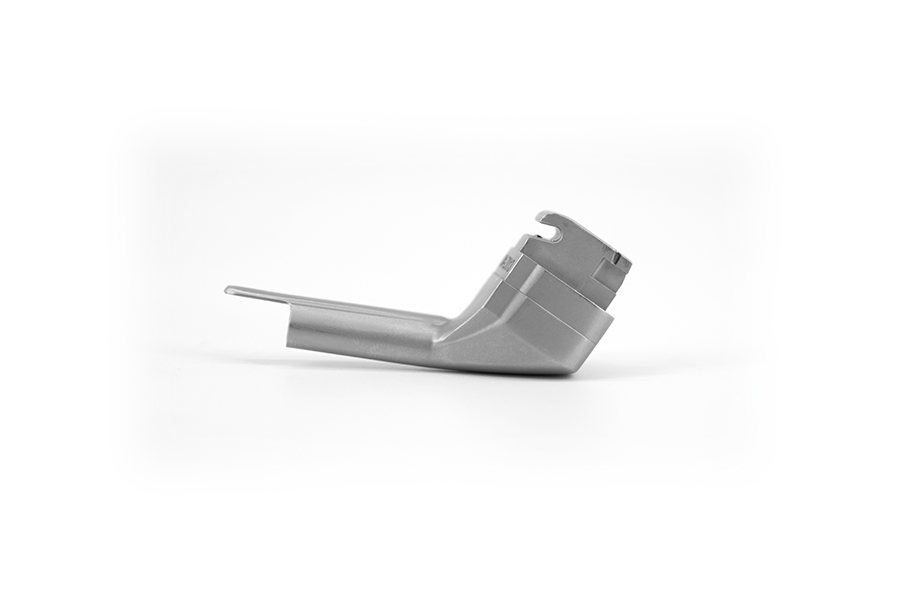

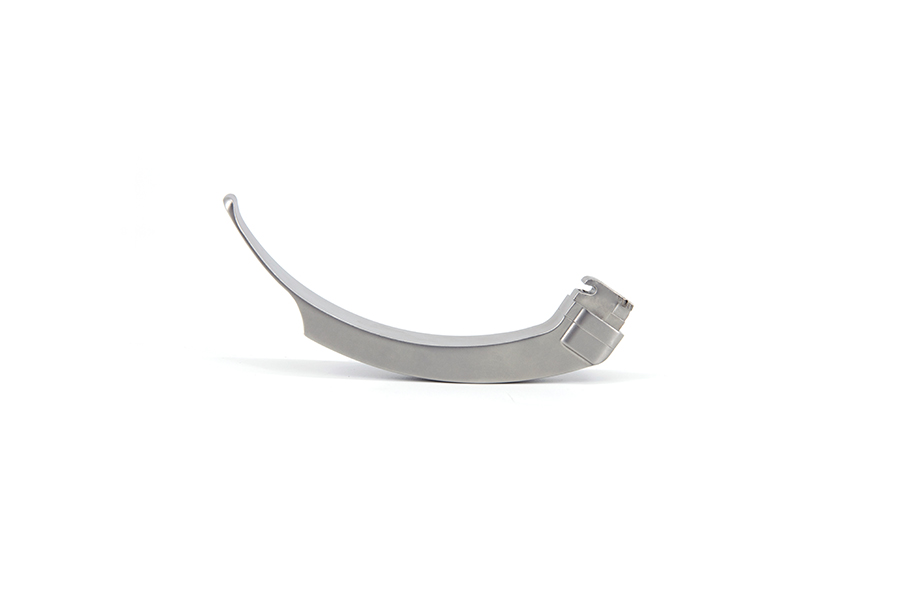

Reusable Video Laryngoscope |
||
Range of application: |
Aneasthesiology department, ICU, Emergency department, Ambulance, ENT |
|
Classification | Class I | |
Certificate approval | CE, FDA, NMPA, ISO13485 | |
Model | YS-IR | |
Items | Technical Name | Technical Indicators |
Machine Parameters | Display | 3″(OLED) |
Camera Resolution | 960*480, 2Mpixels | |
Illuminace(LUX) | 800~1500 | |
light source | Natural white(LED) | |
Rotating angles of the monitor in front and rear | 30 º~150 º | |
Rotating angles of the monitor in right and left | 0 º~270 º | |
Angle of vision | ≥73º | |
Field of depth | 20~100mm | |
Discharging time of battery | >4.5h | |
Power supply | Rechargeable 18650 3.7 lithium battery | |
Charging times | >500times | |
Waterproof | IPX7 | |
Weight of monitor | 225g | |
Card | Media | Class 6 Micro SD flash card |
Strorage | 8GB~64GB | |
File format | JPEG, AVI | |
Interface | 1 mini USB, 1 SD card slot | |
Charger | Charger input | 110~220V AC 50Hz |
Charger output | 5V, 2600mA | |
Charging time | <4(hrs) | |
Temperature | 10℃~40℃ | |
Working environments | Humidity | 10%-90% |
Atmospheric pressure | 500hpa-1060hpa | |
Temperature | -40℃~55℃ | |
Transportation storage environments | Humidity | ≤93% |
Atmospheric pressure | 500hpa~1060hpa |
