Ringlock Scaffolding System for Any Projects

Short Description:

Ringlock scaffolding for any projects, small and large.

Versatility, small structure, easy construction and disassembly, large bearing capacity, safety and reliability advantages.

Specialized Applications:

Boiler and power plants-Construction, maintenance, and repair

Offshore-New construction, repair, or retrofit

Shipyards-Interior and exterior maintenance

Circular vessels-Interior and exterior maintenance

Atriums, stages, arenas, auditoriums, churches, and moreHVAC installation, lighting, painting

Temporary stages-Events and walkways

Industrial-Pipe racks, painting, and repair


Product Detail

Product Tags

Due to its safety, beauty, material saving, high work efficiency, and fast construction speed, the ringlock scaffolding has become increasingly large in the market and has gradually gained unanimous approval from the contractors.

Main Components

The main accessories of ringlock scaffolding are Vertical standards, Horizontal ledger, diagonal brace, adjustable bases, adjustable brackets, zigzag stairs, hook planks, etc.
There are eight holes on the rosette, four small holes are dedicated for ledger, four large holes are dedicated for diagonal brace. The connection method of the horizontal and the diagonal is bolt type, which can ensure that the standards are firmly connected with the vertical rosettes.

The ledger, the diagonal brace, and the vertical steel pipe are in full-surface contact. After the bolt is tightened, the force is applied at three points (the upper and lower points of the joint and the one point of the bolt against the rosette) can be firmly fixed, increasing the structural strength and transmitting horizontal force. The clubhead and the steel tube body are fixed by full welding, and the power transmission is accurate.

Standards

Models Materials Effective Length/M Overall Length/M Weight/KG
SMKS300 Q345,48.3×3.25mm 3.0 3.15 14.90
SMKS250 Q345,48.3×3.25mm 2.5 2.65 12.45
SMKS200 Q345,48.3×3.25mm 2.0 2.15 9.95
SMKS150 Q345,48.3×3.25mm 1.5 1.65 7.50
SMKS100 Q345,48.3×3.25mm 1.0 1.15 5.00
SMKS050 Q345,48.3×3.25mm 0.5 0.65 2.50
standard

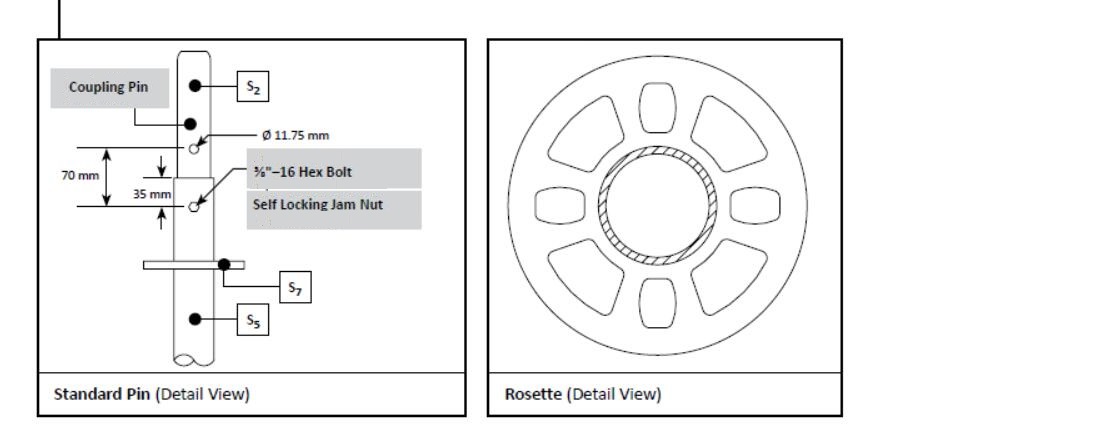

coupling-pin

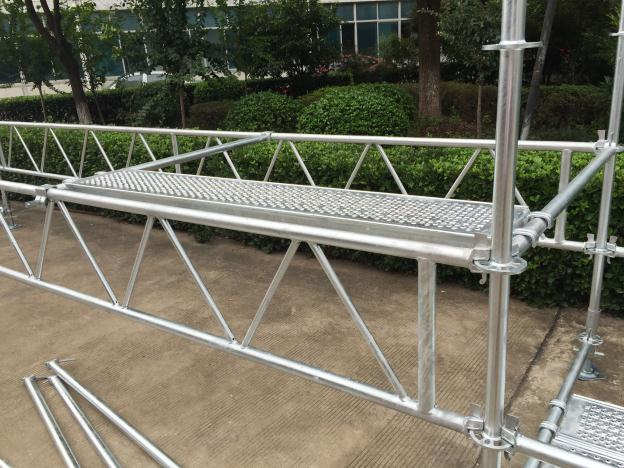

Ledgers/Double Truss Ledgers

Models Materials Effective Length/M Overall Length/M Weight/KG
SMKS307 Q345,48.3×3.25mm 3.07 3.00 12.90
SMKS257 Q345,48.3×3.25mm 2.57 2.50 10.95
SMKS207 Q345,48.3×3.25mm 2.07 2.00 8.95
SMKS157 Q345,48.3×3.25mm 1.57 1.50 6.90
SMKS140 Q345,48.3×3.25mm 1.47 1.40 6.22
SMKS109 Q345,48.3×3.25mm 1.09 1.02 4.98
SMKS104 Q345,48.3×3.25mm 1.04 0.97 4.55
SMKS073 Q345,48.3×3.25mm 0.73 0.66 3.55

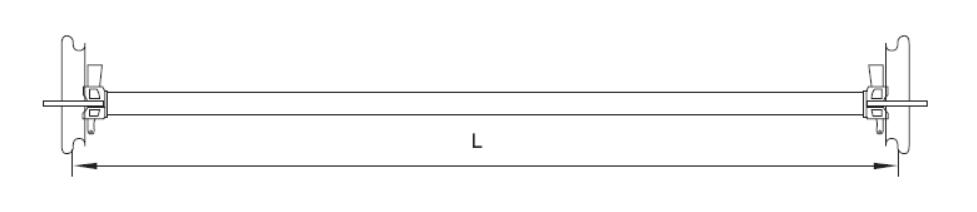

Sampmax-construction-ledgers

Sampmax-construction-truss-ledgers

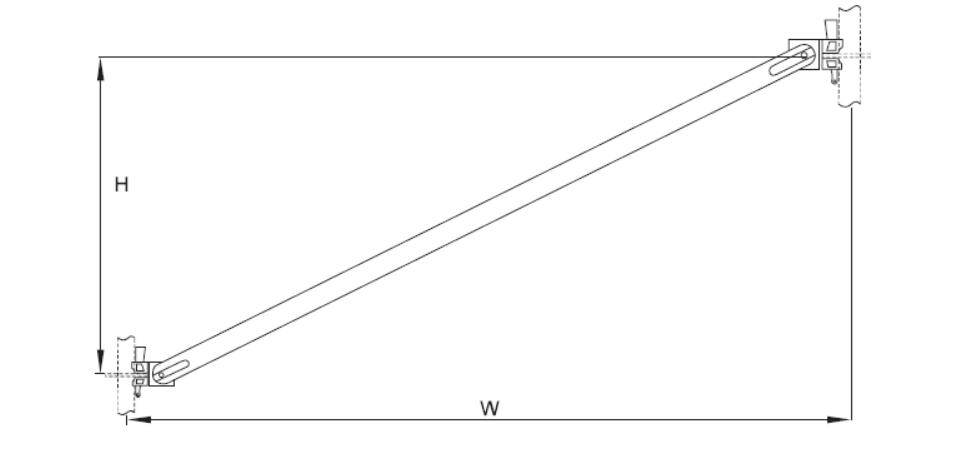

Diagonal Brace

Models Materials Standard Spacing (Width)/M Height/M Weight/KG
SMKS307B Q235,48.3×2.5mm 3.07 2.00 12.68
SMKS257B Q235,48.3×2.5mm 2.57 2.00 11.45
SMKS207B Q235,48.3×2.5mm 2.07 2.00 10.30
SMKS157B Q235,48.3×2.5mm 1.57 2.00 9.30
SMKS140B Q235,48.3×2.5mm 1.47 2.00 9.00
SMKS109B Q235,48.3×2.5mm 1.09 2.00 8.50
SMKS104B Q235,48.3×2.5mm 1.04 2.00 8.30
SMKS073B Q235,48.3×2.5mm 0.73 2.00 5.20
Sampmax-construction-diagonal-brace

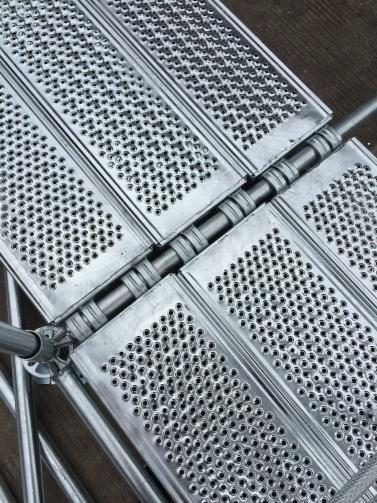

Steel Plank

Models Materials Effective Length/M Width/mm Weight/KG
SMKS307P 1.5 mm Pre-galvanized Steel Sheet 3.07 240/320 23.20
SMKS257P 1.5 mm Pre-galvanized Steel Sheet 2.57 240/320 19.42
SMKS207P 1.5 mm Pre-galvanized Steel Sheet 2.07 240/320 16.25
SMKS157P 1.5 mm Pre-galvanized Steel Sheet 1.57 240/320 12.35
SMKS140P 1.5 mm Pre-galvanized Steel Sheet 1.47 240/320 11.40
SMKS109P 1.5 mm Pre-galvanized Steel Sheet 1.09 240/320 9.25
SMKS104P 1.5 mm Pre-galvanized Steel Sheet 1.04 240/320 8.00
SMKS073B 1.5 mm Pre-galvanized Steel Sheet 0.73 240/320 6.80
Sampmax-construction-steel-plank

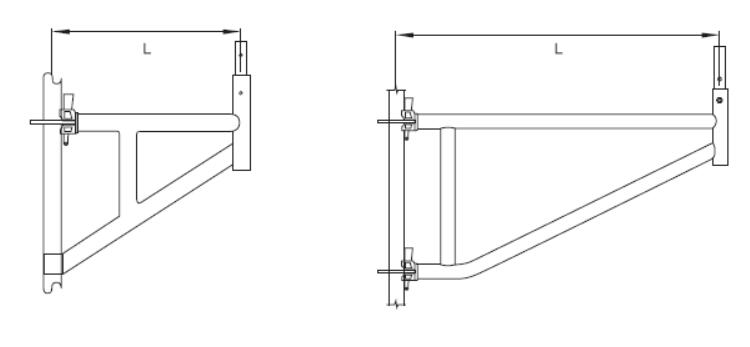

Side Bracket/Board Bracket

Models Materials Effective Length/mm Match Weight/KG
SMKS360S Q235, 48.3mm Steel Tube 360 1 board 4.50
SMKS390S Q235, 48.3mm Steel Tube 390 1 board 4.65
SMKS730S Q235, 48.3mm Steel Tube 730 2 boards 6.00
SMKS109S Q235, 48.3mm Steel Tube 1090 3 boards or ladder 13.65
Sampmax-construction-bracket

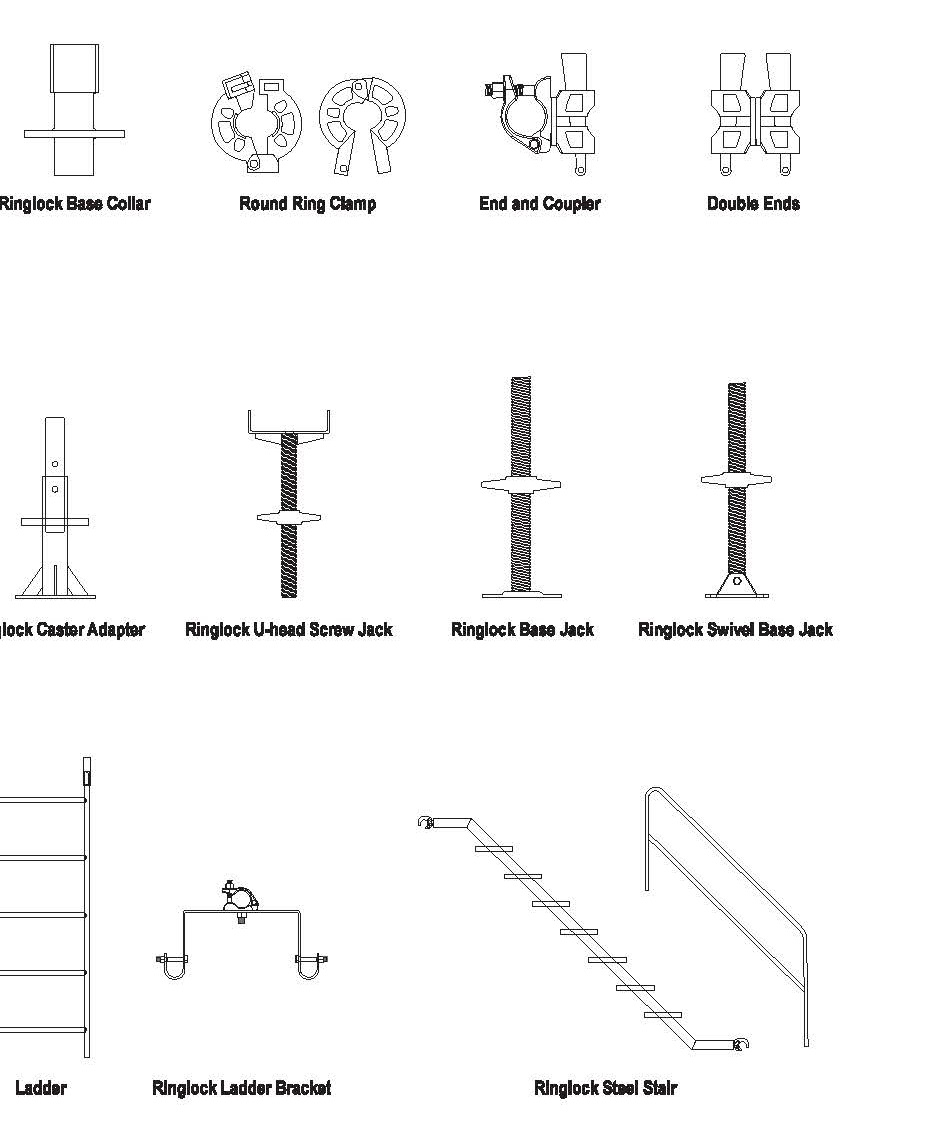

Ringlock Scaffolding Accessories

Base Collar 48.3×3.25mm Steel Tube, 0.43m/0.24m length, HDG
Screw Jack Solid/Hollow, Cast Steel, HDG

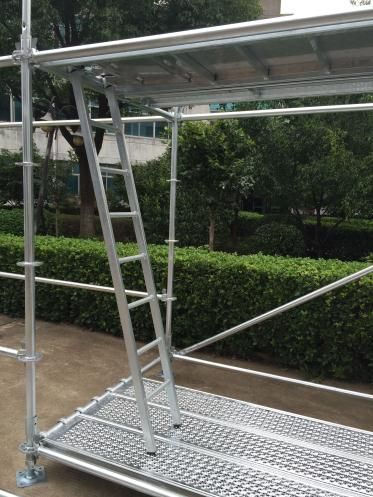

Ladder Electrical-Galvanized, Load Capacity 300kg
Steel Stair Square tube and U profile, HDG
Access Ladder Bracket 0.43m Width, 2.8kg
ringlock-scaffolding-accessories

Quality Management System: ISO9001-2000.
Tubes Standard: ASTM AA513-07.
Couplings Standard: BS1139 and EN74.2 standard.
